DICounter
The DICounter is a component dedicated for reading the high-speed counter of digital inputs; its values are saved to the EEPROM memory.
The DICounter has to be placed under the LocalIO component.

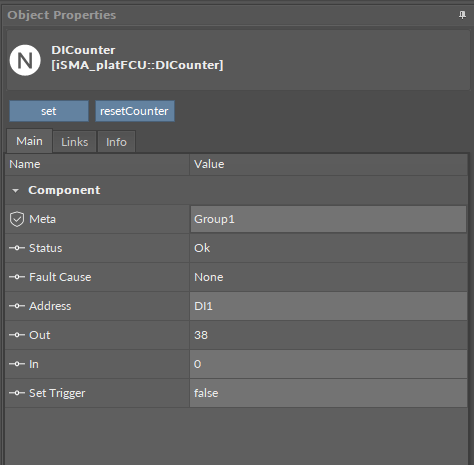

The DICounter component
The DICounter component has the following slots:
Status: indicates the status of the DICounter component;
Fault Cause: shows the fault cause description;
Address: sets the number of the physical Input of the iSMA-B-FCU device (DI1, DI2, DI3, DI4);
Out: displays the actual value of the counter servicing the selected input;
In: the value set to Out slot, if the Set Trigger slot has changed from false to true;
Set Trigger: if the state of the slot has changed from false to true, the value of the In slot is set to the Out slot.
The DICounter component offers the following actions, available in the context menu:
Set: allows to set the value of the counter; the action overrides the Out and In slots;
Reset Counter: allows to set the value to 0; the action overrides the Out and In slots.
