DO

The DO is a component designed for servicing digital output. The DO component has to be placed under the LocalIO component.

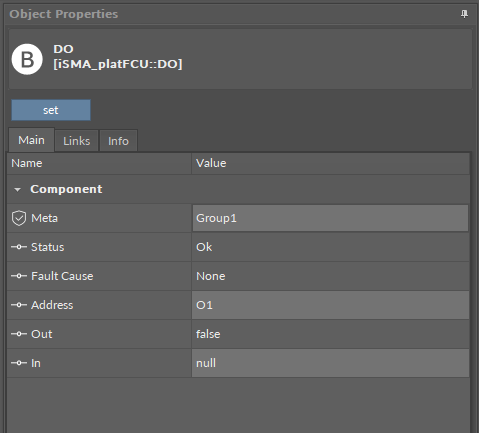

The DO component has the following slots:

• Status: indicates the status of the DO component;

• Fault Cause: shows the fault cause description;

• Address: sets the number of the physical output of the iSMA-B-FCU device (O1, O2, O3, O4, O5);

• Out: displays the actual state of the output (true/false);

• In: the input slot.

The DO component offers the following action, available in the context menu:

• Set: writes a value to the Out slot, and sends it to the device.
