ModbusAsyncBooleanWritable
The ModbusAsyncBooleanWritable is a component responsible for sending and reading Boolean values from the device. The component has to be placed under the ModbusAsyncDevice component.

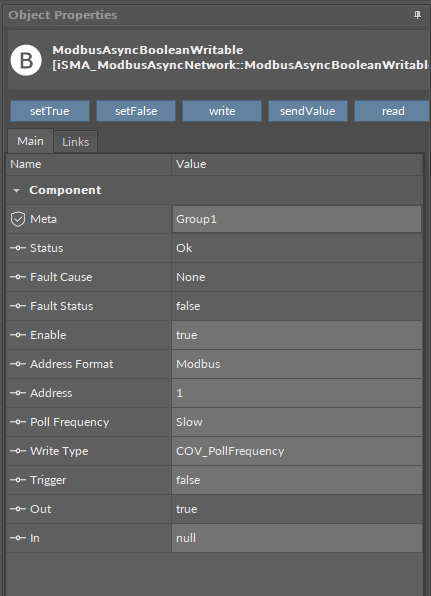

The ModbusAsyncBooleanWritable component has the following slots:
Status: shows the point’s status;
Fault Cause: shows the fault cause description;
Fault Status: informs about the point’ error status (true: point read/write error);
Enable: enables or disabled the point (true: point enabled, false: point disabled);
Address Format: allows to set the register address format (Modbus, decimal);
Address: allows to set the register address;
Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
Write Type: allows to set the writing mode (COV: only on input change, COV_PollFrequency: on input change and periodically, PollFrequency: only periodically, COV_LinkSet: only on input change using the "reverse following the link" function);
Trigger: allows to force sending values on rising edge;
Out: the output slot, the current value of read/write registry;
In: the input slot.
The ModbusAsyncBooleanWritable component offers the following actions, available in the context menu:
Set True/Set False: writes a value to the In slot and sends it to the device (not active if the In slot has a link connected);
Write: sends the value from In slot to the device;
Send Value: sends the user value from the pop-up window, without changing the In slot;
Read: reads the value from the device and sends it to the Out slot.
