Sunblind
The Sunblind component allows to control the sunblind with one function block. It best suits simple projects, where only simple up/down manual or BMS control is required. There is a dedicated slot for monitoring the current position of the sunblind.

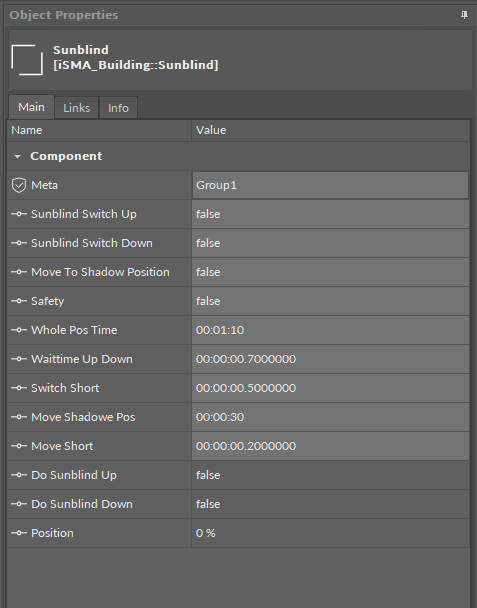

Sunblind component
The Sunblind component has the following configuration slots:
Sunblind Switch Up: the Boolean input dedicated to move the sunblind up;
Sunblind Switch Down: the Boolean input dedicated to move the sunblind down;
Move To Shadow Position: the Boolean input dedicated to move the sunblind to the shadow position (protection against the sunlight);
Safety: the Boolean input dedicated to move the Sunblind to complete up position (protection against the strong wind);
Whole Pos Time: allows to set the time needed for the sunblind motor to completely open/close the sunblind (0-300 sec);
Waittime Up Down: allows to set the delay between changing the direction of the sunblind. (0.6-3 sec);
Switch Short: allows to set the time defining short press of the switch, which results in changing the slats position;
Move Shadow Pos: allows to set the time needed for the sunblind motor to set the sunblind in the shadow position (0-300 sec);
Move Short: allows to set the time defining the short moving of the sunblind in case if the impulse was shorter than the Switch Short value. If the motor is moving, such impulse results in stopping the sunblind motor;
Do Sunblind Up: the Boolean output dedicated to move the sunblind up;
Do Sunblind Down: the Boolean output dedicated to move the sunblind down;
Position: allows to monitor the position of the sunblind (0-100%).
