DI

The DI is a component designed for reading the digital input (true or false). The DI has to be placed under the LocalIO component.

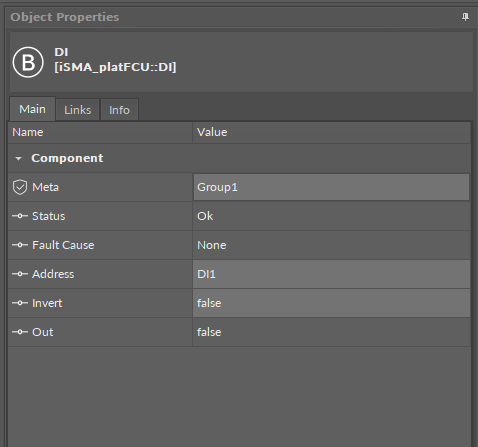

The DI component

The DI component has the following slots:

  • Status: indicates the status of the DI component;

  • Fault Cause: shows the fault cause description;

  • Address: sets the number of the physical input of the iSMA-B-FCU device (DI1, DI2, DI3, DI4);

  • Invert: shows the value negative to the value read from the digital output of the iSMA-B-FCU device;

  • Out: displays the actual value of the input (true or false).
