SITemperature

The SITemperature is a component designed for servicing special input in the temperature read mode (in order to get a reliable reading, the user must select the appropriate sensor type in the component LocalIOConfig). The SITemperature component has to be placed under the LocalIO component.

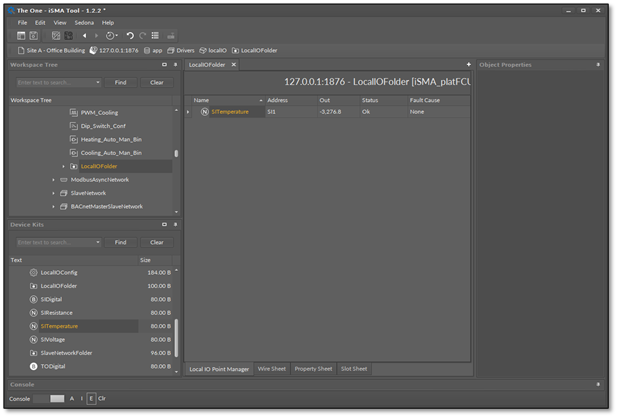

The SITemperature component

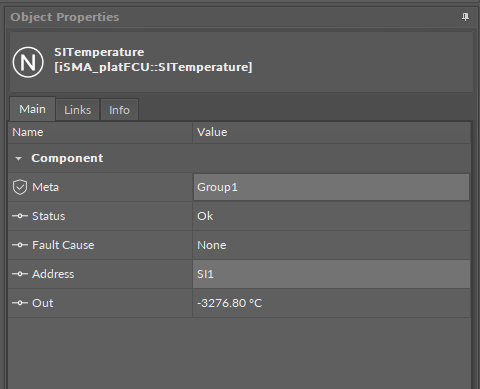

The SITemperature component has the following slots:

  • Status: indicates the status of the SITemperature component;

  • Fault Cause: shows the fault cause description;

  • Address: sets the number of the physical input of the iSMA-B-FCU device (SI1, SI2, SI3, SI4);

  • Out: displays the actual value of the input. If the voltage measurement is enabled, measuring of temperature is disabled, and the Out slot displays the last value of the temperature, measured before switching to the voltage measurement.
