Occupancy

Note: Component applicable for the LP, Touch Point, and FP panels.

The Occupancy component is responsible for configuring occupancy settings in the panel.

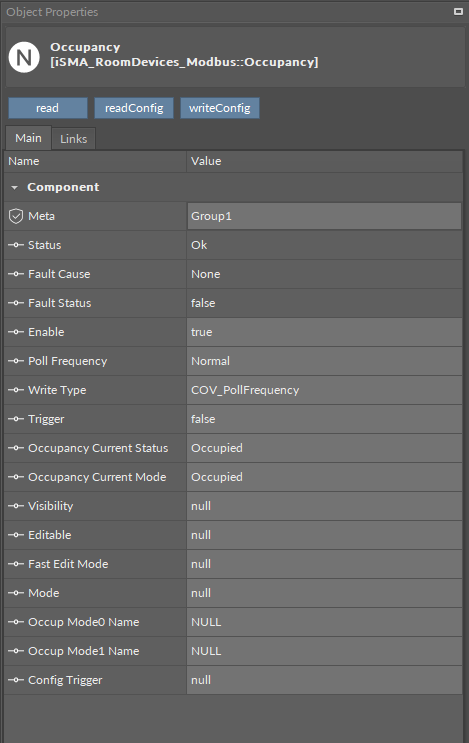

93 Occupancy.png

Occupancy component

The Occupancy component has the following slots:

  • Status: shows the component’s status;

  • Fault Cause: shows the fault cause description;

  • Fault Status: informs about the point error status (true: point read/write error);

  • Enable: enables or disables the component (true: enabled, false: disabled);

  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

  • Write Type: defines a method of writing values (COV, COV_PollFrequency, PollFrequency, COV_LinkSet);

  • Trigger: allows to force sending values on rising edge;

  • Occupancy Current Status: sets the current status of occupancy (Unoccupied, Occupied, Standby, ForcedOccupied);

  • Occupancy Current Mode: sets the current mode of occupancy (Unoccupied, Occupied);

  • Visibility: allows to activate or deactivate the point on the display (only for the LP panel);

  • Editable: enables or disables editing of an occupancy in the panel;

  • Fast Edit Mode: enables a fast edit mode in the panel (only for the LP panel);

  • Mode: identifies a way of controlling the panel (LocalMode, BmsMode);

  • Occup Mode0 Name-Occup Mode1 Name: allows to set different occupancy mode names (up to 4, only ASCII characters; only for the LP panel);

  • Config Trigger: on rising edge sends configuration parameters to the device components (Editable, Mode).

The Occupancy component has the following actions:

  • Read: reads the panel’s occupancy values and updates the Occupancy Current Status and Occupancy Current Mode slots;

  • Read Config: reads configuration parameters from the panel (Editable, Mode);

  • Write Config: writes configuration parameters to the panel (Editable, Mode).
