HumiditySensor

The HumiditySensor component is responsible for configuration of the humidity sensor and reading its value.

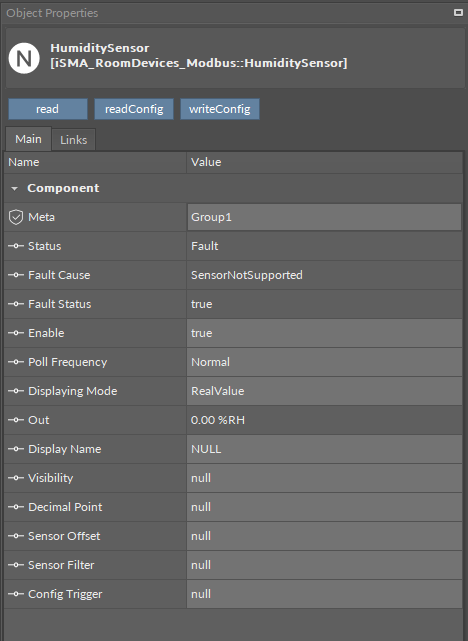

The HumiditySensor component has the following slots:

• Status: shows the point’s status;

• Fault Cause: shows the fault cause description;

• Fault Status: shows the point error status (true: point read/write error);

• Enable: enables or disables the point (true: enabled, false: disabled);

• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

• Displaying Mode: allows to set the display mode (RealValue: the Out value is divided by 10, RegisterValue: the value is taken directly from the register);

• Out: the humidity sensor value;

• Display Name: allows to set the humidity sensor display name on the display (up to 4 characters, only ASCII characters, only for the LP panel);

• Visibility: activates or inactivates the humidity sensor value on the display;

• Decimal Point: allows to activate or deactivate the decimal place on the display (inactive or displays decimal point on first, second or third position);

• Sensor Offset: sets the humidity sensor offset value;

• Sensor Filter: sets the humidity sensor reading filter time in seconds;

• Config Trigger: sends configuration parameters to the device components on rising edge.

The LpHumiditySensor component has the following right-click menu actions:

• Read: reads the remote device humidity sensor value and updates the Out slot;

• Read Config: reads configuration parameters from the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter);

• Write Config: writes configuration parameters to the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter).
