TODigital
The TODigital is a component designed for servicing the triac output operating working in digital mode. The TODigital component has to be placed under the LocalIO component.

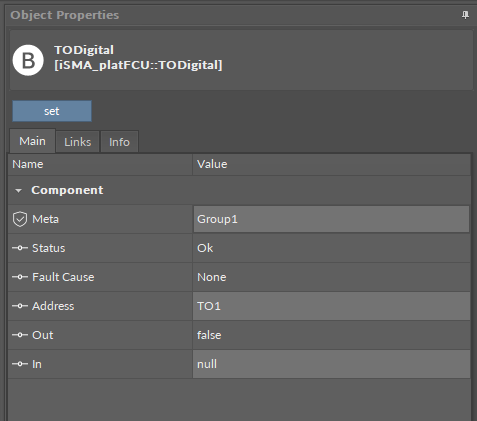

The TODigital component
The TODigital component has the following slots:
Status: indicates the status of the TODigital component;
Fault Cause: shows the fault cause description;
Address: sets the number of the physical triac output of the iSMA-B-FCU device (TO1, TO2);
Out: displays the actual value of the output;
In: the input slot.
The TODigital component offers the following action, available in the context menu:
Set: writes a value to the Out slot, and sends it to the device.
