LpHumiditySensor


This page is a source for LpHumiditySensor (AAC).

Note: Component applicable for the LP and Touch Point panels.

The LpHumiditySensor component is responsible for configuration of the humidity sensor and reading its value.

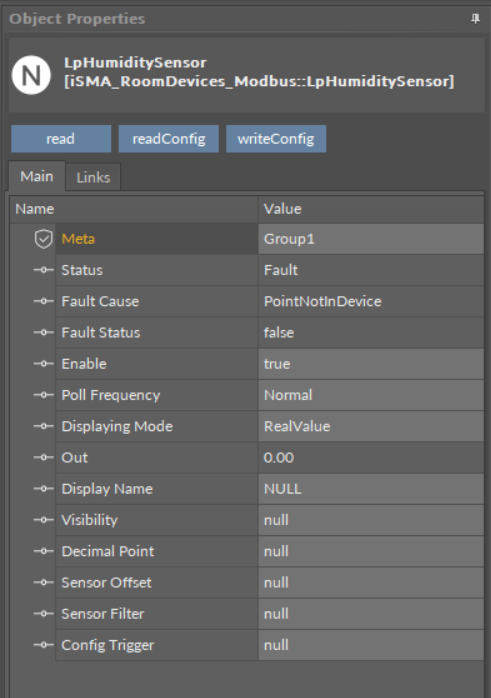

The LpHumiditySensor component

The LpHumiditySensor component has the following slots:

  • Status: shows the point’s status;
  • Fault Cause: shows the fault cause description;
  • Fault Status: shows the point error status (true: point read/write error);
  • Enable: enables or disables the point (true: enabled, false: disabled);
  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
  • Displaying Mode: allows to set the display mode (RealValue: the Out value is divided by 10, RegisterValue: the value is taken directly from the register);
  • Out: the humidity sensor value;
  • Display Name: allows to set the humidity sensor display name on the display (up to 4 characters, only ASCII characters, only for the LP panel);

  • Visibility: activates or inactivates the humidity sensor value on the display;
  • Decimal Point: allows to activate or deactivate the decimal place on the display (inactive or displays decimal point on first, second or third position);
  • Sensor Offset: sets the humidity sensor offset value;
  • Sensor Filter: sets the humidity sensor reading filter time in seconds;
  • Config Trigger: sends configuration parameters to the device components on rising edge.

The LpHumiditySensor component has the following right-click menu actions:

  • Read: reads the remote device humidity sensor value and updates the Out slot;
  • Read Config: reads configuration parameters from the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter);
  • Write Config: writes configuration parameters to the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter).
