Analog Outputs Components

In the iSMA Module kit there are available two types of component to read/write device analog outputs:

  • AO_Volt: to set up a voltage signal (0-10000mV) on the analog output;

  • AO_PWM: to set up a PWM signal (0-100%).

Selection, if output works in voltage or PWM mode, is made in the module config component.

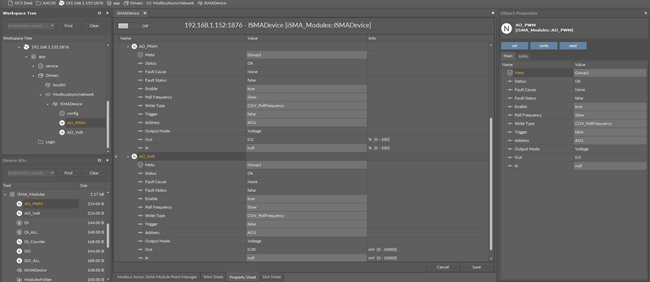

iSMA Module AO components

The input number is selected in the component property sheet, sensor type–in the module config component. Notice that AO components have 6 inputs, which correspond to the largest module iSMA-B-MIX38. Using a module with a smaller output number makes the surplus outputs inactive.
