RegisterBitWritable

The RegisterBitWritable component is responsible for sending to and reading Boolean values from a bit in a specified register in the device. The component has to be placed under the ModbusDevice component.

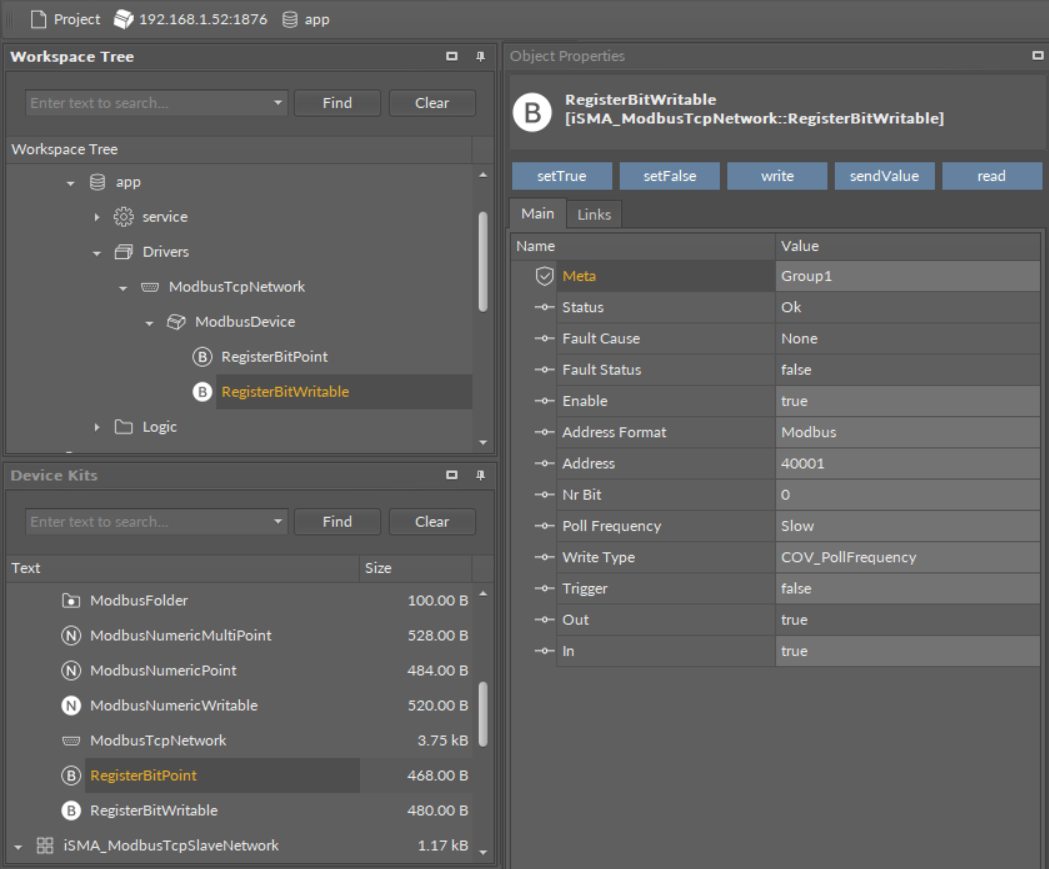

RegisterBitWritable

Slots

The RegisterBitWritable component has the following slots:

• Status: shows the point’s status;

• Fault Cause: shows the fault cause description;

• Fault Status: informs about the point error status (true: point read error);

• Enable: enables or disables the point (true: point enabled, false: point disabled);

• Address Format: allows to set the register address format (Modbus, decimal);

• Address: allows to set the register address;

• Nr Bit: allows to set the bit number in the register;

• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

• Write Type: allows to set the writing mode (COV: only on the In slot change, COV_PollFequrency: on the In slot change and periodically, PollFequrency: only periodically, COV_LinkSet : only on the In slot change using the "reverse following the link" function);

• Trigger: allows to trigger the remote enforcement of sending (on rising edge);

• Out: the current value of reading bit;

• In: the input slot.

Action

The RegisterBitWritable component offers the following actions:

• Set True/Set False: writes the value to the In slot and sends it to the device (not active if the In slot has a link connected);

• Write: sends the value from the In slot to the device;

• Read: reads the value from the device and sends it to the Out slot;

• Send Value: sends the value to the device, without changing the value on the In slot.
