LpCO2Alarm

The LpCO2Alarm component is dedicated to the configuration of the high limit alarm function in the LCD panel.

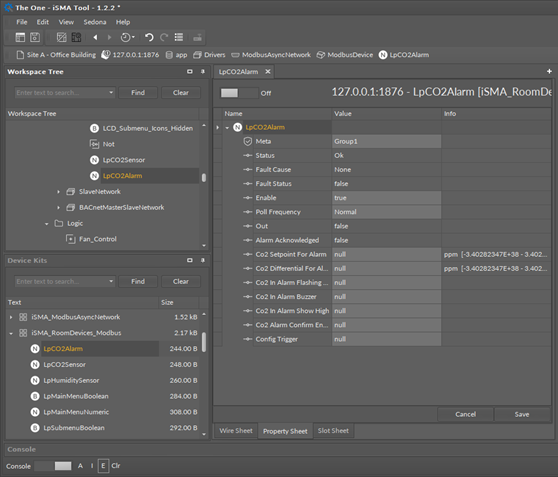

The LpCO2Alarm component

The LpCO2Alarm component has the following slots:

Status: shows the point’s status;
Fault Cause: shows the fault cause description;
Fault Status: informs about the point error status (true: point read/write error);
Enable: enables or disables the point (true: enabled, false: disabled);
Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
Out: the CO2 alarm status;
Co2 Setpoint For Alarm: sets a CO2 alarm setpoint value in ppm;
Co2 Differential For Alarm: sets a CO2 alarm setpoint differential value in ppm;
Co2 Alarm Flashing Lcd: sets the active or inactive a background illumination flashing;
Co2 Alarm Buzzer: activates or inactivates a sound alarm;
Co2 Alarm In Alarm Show High: activates or inactivates the “High” label display;
Co2 Alarm Confirm Enable: activates or inactivates an alarm acknowledgement by any button;
Config Trigger: sends configuration parameters to the LP panel on rising edge.

The LpCO2Alarm component has the following right-click menu actions:

Read: reads the LP panel CO2 alarm status and updates the Out slot;
Read Config: reads configuration parameters from the LP panel, (Co2 Setpoint For Alarm, Co2 Differential For Alarm, Co2 Alarm Flashing Lcd, Co2 Alarm Buzzer, Co2 Alarm In Alarm Show High, Co2 Alarm Confirm Enable);
Write Config: writes configuration parameters to the LP panel (Co2 Setpoint For Alarm, Co2 Differential For Alarm, Co2 Alarm Flashing Lcd, Co2 Alarm Buzzer, Co2 Alarm In Alarm Show High, Co2 Alarm Confirm Enable).
