The LpCO2Sensor component is responsible for reading values and configuration of the CO2 sensor.

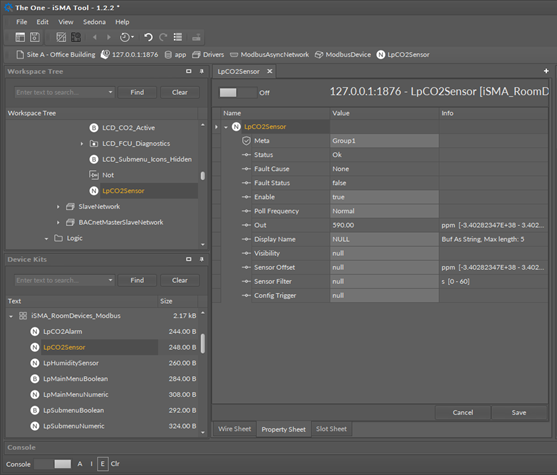

The LpCO2Sensor component

The LpCO2Sensor component has the following slots:

  • Status: shows the component’s status;
  • Fault Cause: shows the fault cause description;
  • Fault Status: informs about the point error status (true: point read/write error);
  • Enable: enables or disables the component (true: enabled, false: disabled);
  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
  • Out: the CO2 sensor value;
  • Display Name: allows to set the CO2 sensor name on the LCD display (up to 4 characters, only ASCII characters);
  • Visibility: activates or inactivates the sensor value on display;
  • Sensor Offset: sets the CO2 sensor offset value;
  • Sensor Filter: sets the CO2 sensor reading filter time in seconds;
  • Config Trigger: sends configuration parameters to the device components on rising edge (Display Name, Visibility, Sensor Offset, Sensor Filter).

The LpCO2Sensor component has the following right-click menu actions:

  • Read: reads the remote device CO2 sensor value and updates the Out slot;
  • Read Config: reads configuration parameters from the LP panel (Display Name, Visibility, Sensor Offset, Sensor Filter);
  • Write Config: writes configuration parameters to the LP panel (Display Name, Visibility, Sensor Offset, Sensor Filter).
