TpHumiditySensor

The TpHumiditySensor component is responsible for configuration of the humidity sensor and reading its value.

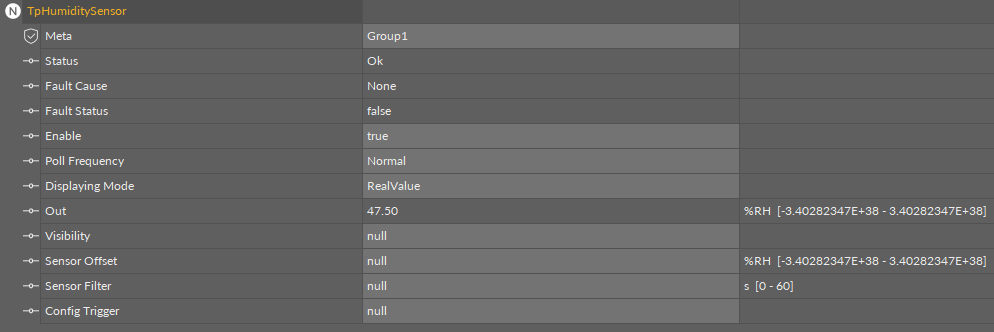

The TpHumiditySensor component

Slots

The TpHumiditySensor component has the following slots:

• Status: shows the point’s status;

• Fault Cause: shows the fault cause description;

• Fault Status: shows the point error status (true: point read/write error);

• Enable: enables or disables the point (true: enabled, false: disabled);

• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

• Displaying Mode: allows to set the display mode (RealValue: the Out value is divided by 10, RegisterValue: the value is taken directly from the register);

• Out: the humidity sensor value;

• Visibility: activates or inactivates the humidity sensor value on display;

• Sensor Offset: sets the humidity sensor offset value;

• Sensor Filter: sets the humidity sensor reading filter time in seconds;

• Config Trigger: sends configuration parameters to the device components on rising edge.

Actions

The TpHumiditySensor component has the following right-click menu actions:

• Read: reads the Touch Point panel's humidity sensor value and updates the Out slot;

• Read Config: reads configuration parameters from the Touch Point panel (Visibility, Sensor Offset, Sensor Filter);

• Write Config: writes configuration parameters to the Touch Point panel (Visibility, Sensor Offset, Sensor Filter).
