The LpMainMenuNumeric component is responsible for reading/writing and configuration of a single numeric parameter, which is placed in the LP panel main menu.

The LpMainMenuNumeric component

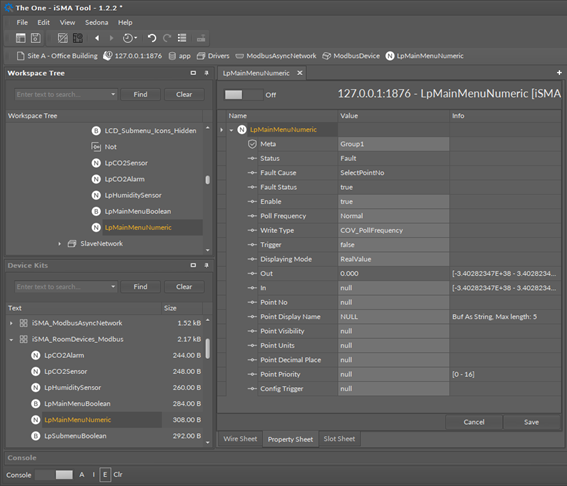

The LpMainMenuNumeric component has the following slots:

• Status: shows the point status;

• Fault Cause: shows the fault cause description;

• Fault Status: informs about the point error status (true: point read/write error);

• Enable: enables or disables the point (true: enabled, false: disabled);

• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

• Write Type: allows to set the writing mode (COV: only on input change, COV_PollFequrency: on the In slot change and periodically, PollFequrency: only periodically, COV_LinkSet: on the In slot change, using the "reverse following the link" function);

• Trigger: triggers the remote enforcement of sending (on rising edge);

• Displaying Mode: allows to set the displaying mode (RealValue: the Out value is divided by 10; RegisterValue: the value is taken directly from the register);

• Out: the point’s output slot, the current value;

• In: the point’s input slot;

• Point No: the panel main menu number;

• Point Display Name: allows to set the point’s display name on the LCD screen (up to 4, only ASCII characters);

• Point Visibility: allows to activate or disactivate the point on display;

• Point Decimal Place: allows to activate or disactivate the decimal place on the display (inactive or displays decimal point on first, second or third position);

• Point Priority: allows to set the displaying priority on the LCD screen (starting from the lowest value);

• Config Trigger: sends configuration parameters to the device components on rising edge.

The LpMainMenuNumeric component has the following right-click menu actions:

• Set: sets the In slot and sends it to the main menu point;

• Write: sends the In slot and sends it to the main menu point;

• Read: reads the LP panel main menu point value and sets the Out slot;

• Send Value: sends the user value to main menu point without changing the input slot, from the pop-up window;

• Read Config: reads the main menu point configuration parameters from the LP panel (Point Display Name, Point Visibility, Point Decimal Place, Point Priority);

• Write Config: writes the main menu point configuration parameters to the LP panel (Point Display Name, Point Visibility, Point Decimal Place, Point Priority).
