LpHumiditySensor

The LpHumiditySensor component is responsible for configuration of the humidity sensor and reading its value.

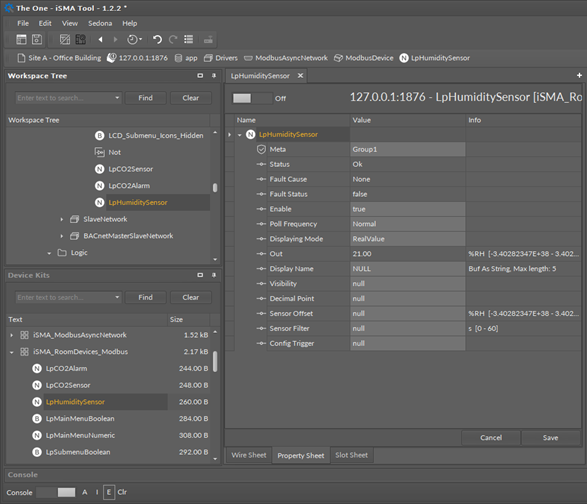

The LpHumiditySensor component

The LpHumiditySensor component has the following slots:

• Status: shows the point’s status;
• Fault Cause: shows the fault cause description;
• Fault Status: shows the point error status (true: point read/write error);
• Enable: enables or disables the point (true: enabled, false: disabled);
• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
• Displaying Mode: allows to set the display mode (RealValue: the Out value is divided by 10, RegisterValue: the value is taken directly from the register);
• Out: the humidity sensor value;
• Display Name: allows to set the humidity sensor display name on the LCD display (up to 4 characters, only ASCII characters);
• Visibility: activates or inactivates the humidity sensor value on display;
• Decimal Point: allows to activate or disactivate the decimal place on the display (inactive or displays decimal point on first, second or third position);
• Sensor Offset: sets the humidity sensor offset value;
• Sensor Filter: sets the humidity sensor reading filter time in seconds;
• Config Trigger: sends configuration parameters to the device components on rising edge.

The LpHumiditySensor component has the following right-click menu actions:

• Read: reads the remote device humidity sensor value and updates the Out slot;
• Read Config: reads configuration parameters from the LP panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter);
• Write Config: writes configuration parameters to the LP panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter).
