TpTemperatureSetpoint

The TpTemperatureSetpoint component is responsible for determining a temperature setpoint value in the Touch Point device.

The TpTemperatureSetpoint component

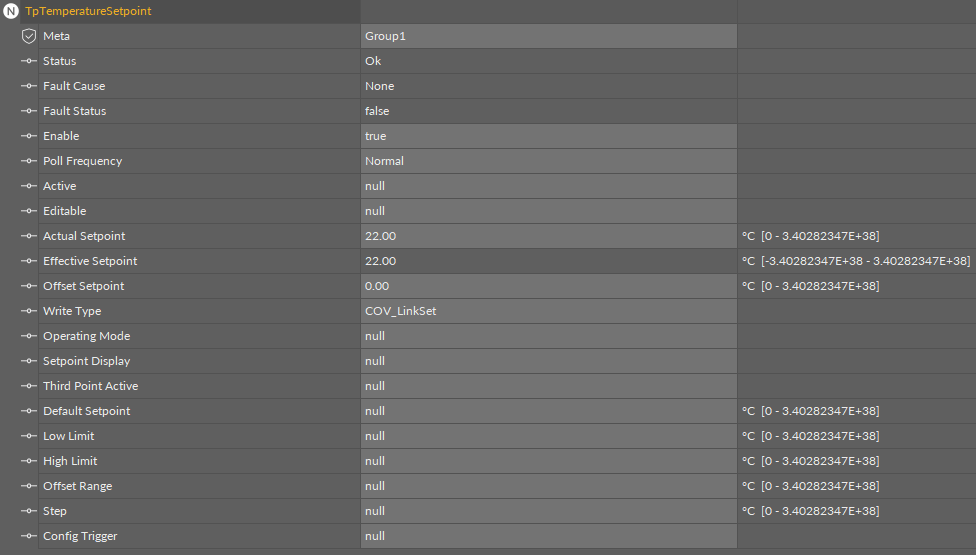

The TpTemperatureSetpoint component has the following slots:

• Status: shows the component’s status;
• Fault Cause: shows the fault cause description;
• Fault Status: informs about the point error status (true: point read/write error);
• Enable: enables or disables the component (true: enabled, false: disabled);
• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
• Active: enables or disables a temperature setpoint visibility in the Touch Point panel;
• Editable: enables or disables editing of a temperature setpoint;
• Actual Setpoint: shows a current setpoint set in the Touch Point panel;
• Effective Setpoint: a default setpoint with offset;
• Offset Setpoint: a fixed offset value added to the default setpoint;
• Write Type: defines a method of writing values (COV, COV_PollFrequency, PollFrequency, COV_LinkSet);
• Operating Mode: defines a mode of calculating a setpoint (OffsetValue, SetpointValue);
• Setpoint Display: defines a way of displaying a setpoint (OffsetValue, SetpointValue);
• Third Point Active:
• Default Setpoint: defaines a default setpoint for the Touch Point panel;
• Low Limit: sets the lowest limit for a setpoint value;
• High Limit: sets the highest limit for a setpoint value;
• Offset Range: set a range of the offset value for a setpoint;
• Step: identifies a minimum difference between next setpoint values (step value);
• Config Trigger: on rising edge sends configuration parameters to the device components (Active, Editable, Operating Mode, Setpoint Display, Third Point Active, Default Setpoint, Low Limit, High Limit, Offset Range, Step).

The TpTemperatureSetpoint component has the following actions:

• Read: reads the Touch Point panel’s temperature sensor value and updates the Out slot;
• Read Config: reads configuration parameters from the Touch Point panel (Active, Editable, Operating Mode, Setpoint Display, Third Point Active, Default Setpoint, Low Limit, High Limit, Offset Range, Step);
• Write Config: writes configuration parameters to the Touch Point panel (Active, Editable, Operating Mode, Setpoint Display, Third Point Active, Default Setpoint, Low Limit, High Limit, Offset Range, Step).
