TpCO2Alarm

The TpCO2Alarm component is dedicated to the configuration of the high limit alarm function in the Touch Point panel.

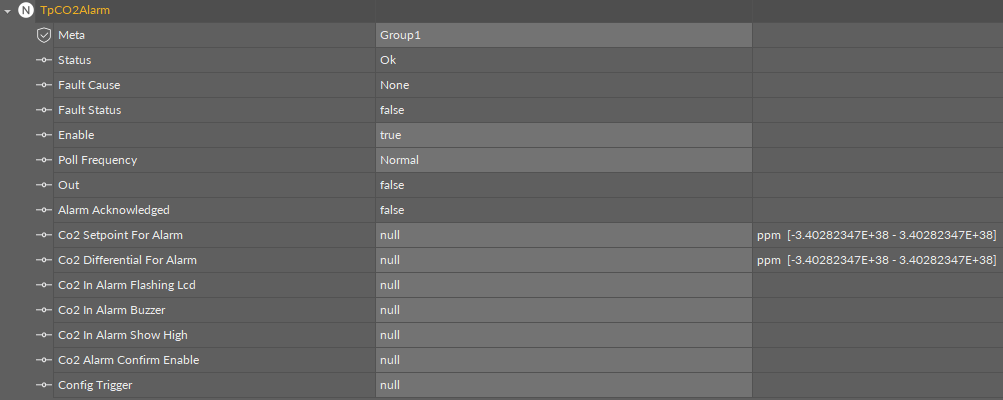

The TpCO2Alarm component

The TpCO2Alarm component has the following slots:

  • Status: shows the point’s status;
  • Fault Cause: shows the fault cause description;
  • Fault Status: informs about the point error status (true: point read/write error);
  • Enable: enables or disables the point (true: enabled, false: disabled);
  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
  • Out: the CO2 alarm status;
  • Alarm Acknowledged: informs if the alarm has been confirmed by a system operator;
  • Co2 Setpoint For Alarm: sets a CO2 alarm setpoint value in ppm;
  • Co2 Differential For Alarm: sets a CO2 alarm setpoint differential value in ppm;
  • Co2 Alarm Flashing Lcd: sets the active or inactive a background illumination flashing;
  • Co2 Alarm Buzzer: activates or inactivates a sound alarm;
  • Co2 Alarm In Alarm Show High: activates or inactivates the “High” label display;
  • Co2 Alarm Confirm Enable: activates or inactivates an alarm acknowledgement by any button;
  • Config Trigger: sends configuration parameters to the Touch Point panel on rising edge.

The TpCO2Alarm component has the following right-click menu actions:

  • Read: reads the Touch Point panel's CO2 alarm status and updates the Out slot;
  • Read Config: reads configuration parameters from the Touch Point panel, (Co2 Setpoint For Alarm, Co2 Differential For Alarm, Co2 Alarm Flashing Lcd, Co2 Alarm Buzzer, Co2 Alarm In Alarm Show High, Co2 Alarm Confirm Enable);
  • Write Config: writes configuration parameters to the Touch Point panel (Co2 Setpoint For Alarm, Co2 Differential For Alarm, Co2 Alarm Flashing Lcd, Co2 Alarm Buzzer, Co2 Alarm In Alarm Show High, Co2 Alarm Confirm Enable).
