CO2Sensor

The CO2Sensor component is responsible for reading values and configuration of the CO₂ sensor.

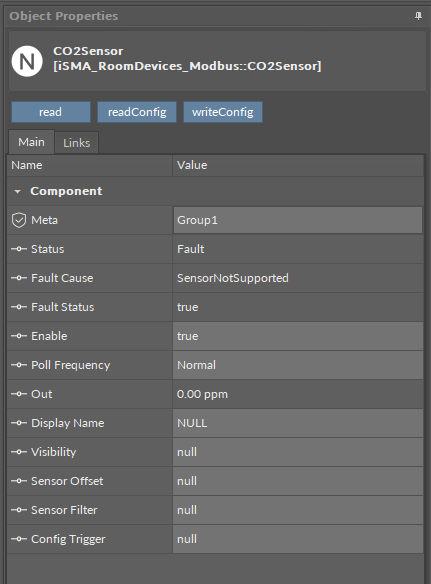

The CO2Sensor component has the following slots:

• Status: shows the component’s status;

• Fault Cause: shows the fault cause description;

• Fault Status: informs about the point error status (true: point read/write error);

• Enable: enables or disables the component (true: enabled, false: disabled);

• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

• Out: the CO₂ sensor value;

• Display Name: allows to set the CO₂ sensor name on the display (up to 4 characters, only ASCII characters, only for the LP panel);

• Visibility: activates or inactivates the sensor value on the display;

• Sensor Offset: sets the CO₂ sensor offset value;

• Sensor Filter: sets the CO₂ sensor reading filter time in seconds;

• Config Trigger: sends configuration parameters to the device components on rising edge (Display Name, Visibility, Sensor Offset, Sensor Filter).

The LpCO2Sensor component has the following right-click menu actions:

• Read: reads the remote device CO₂ sensor value and updates the Out slot;

• Read Config: reads configuration parameters from the panel (Display Name, Visibility, Sensor Offset, Sensor Filter);

• Write Config: writes configuration parameters to the panel (Display Name, Visibility, Sensor Offset, Sensor Filter).
