Digital Inputs Components

In the iSMA Modules kit there are available two types of components to read digital inputs:

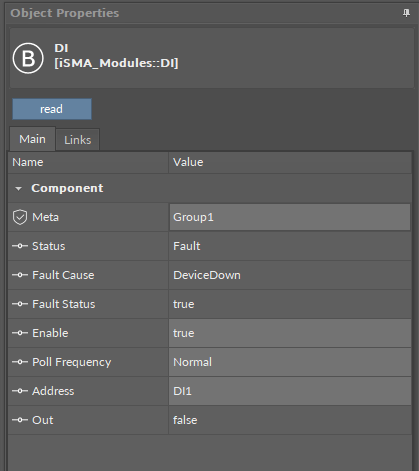

• DI: reads individual digital inputs (input number is selected in the component property sheet);

• DI_ALL: reads all digital inputs using one register.

Note: DI_ALL component has 12 input slots (DI component - up to 12 inputs), which correspond to the largest module iSMA-B-MIX38. Using a module with a smaller number of inputs makes the surplus inputs inactive and always in a false state.
