RegisterBitsPoint

The RegisterBitsPoint component is responsible for reading values from a bit in a specified register in the device. The component has to be placed in the ModbusTCPSlaveNetwork component.

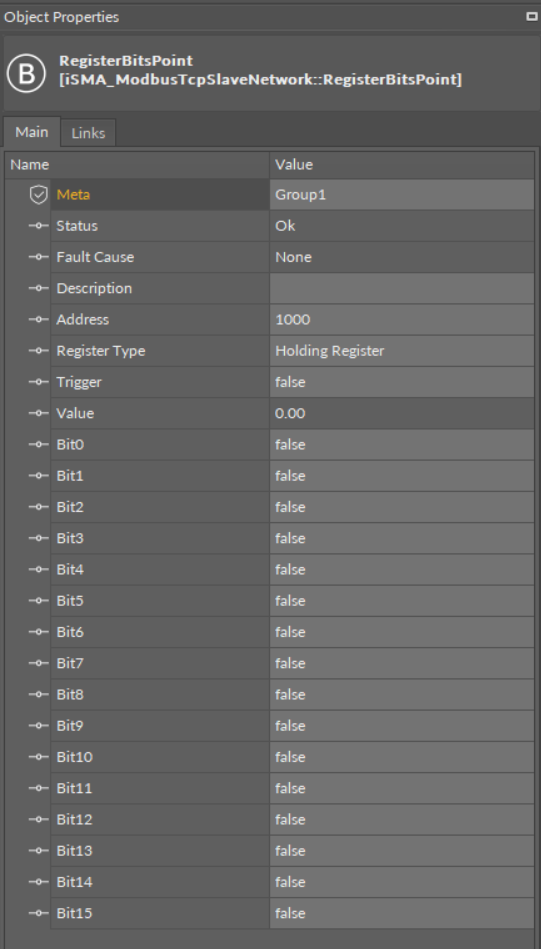

RegisterBitsPoint component

The RegisterBitsPoint component has the following slots:

  • Status: shows the point’s status;

  • Fault Cause: shows the fault cause description;

  • Description: point's description label;

  • Address: allows to set the register address, which the values will be read from;

  • Register Type: defines a type of the addressed register;

  • Trigger: invokes a reading action;

  • Value: shows a decimal representation of the Boolean bits values;

  • Bit0-Bit15: Boolean value of each of the register's bits.
