Digital Outputs Components

In the iSMA Modules kit there are available two types of components to read/write digital outputs:

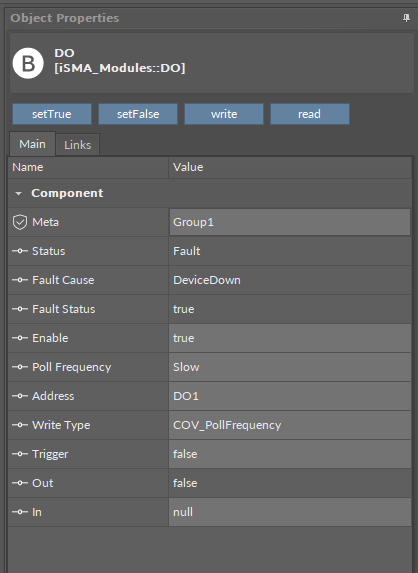

• DO: reads/writes individual digital outputs (output number is selected in component property sheet);

• DO_ALL: reads all digital outputs using one register.

Note: DO_ALL component has 12 input slots (DO component - up to 12 outputs), which correspond to the largest module iSMA-B-MIX38. Using module with a smaller output number makes the surplus outputs inactive.
