RegisterBitWritable

The RegisterBitWritable component is responsible for sending to and reading Boolean values from a bit in a specified register in the device. The component has to be placed under the ModbusDevice component.

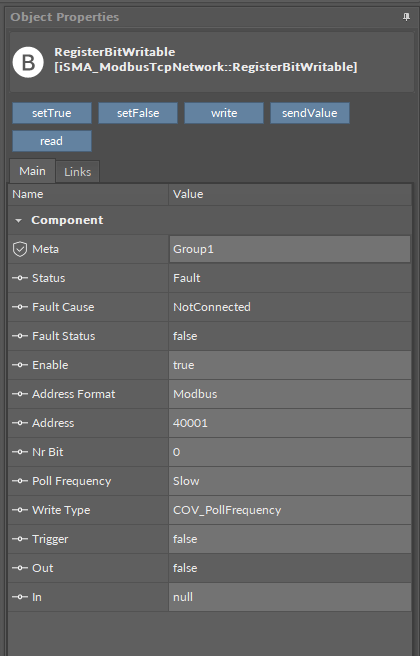

RegisterBitWritable component

The RegisterBitWritable component has the following slots:

  • Status: shows the point’s status;

  • Fault Cause: shows the fault cause description;

  • Fault Status: informs about the point error status (true: point read error);

  • Enable: enables or disables the point;

    • Available options: true (point enabled), false (point disabled);

  • Address Format: allows to set the register address format;

    • Available options: Modbus, decimal;

  • Address: allows to set the register address;

  • Nr Bit: allows to set the bit number in the register;

  • Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);

  • Write Type: allows to set the writing mode;

    • Available options: COV (only on the In slot change), COV_PollFequrency (on the In slot change and periodically), PollFequrency (only periodically), COV_LinkSet (link back-forward triggered by COV);

  • Trigger: allows to trigger the remote enforcement of sending (on rising edge);

  • Out: the current value of reading bit;

  • In: the input slot.

Action

The RegisterBitWritable component offers the following actions:

  • Set True/Set False: writes the value to the In slot and sends it to the device (not active if the In slot has a link connected);

  • Write: sends the value from the In slot to the device;

  • Read: reads the value from the device and sends it to the Out slot;

  • Send Value: sends the value to the device, without changing the value on the In slot.
