DT8_RGBW

The DT8_RGBW component is designed to manage DALI DT8 (Colour Control RGBW) devices, enabling configuration and monitoring of operating parameters and scenes. The DT8_RGBW component allows to define and store up to 16 scenes of light intensity and red/green/blue/white color channels, depending on the device type and groups assignment. It also allows to set standard DALI parameters such as lighting level limits, lighting levels on power up and for system failure, assigning to groups, etc. This provides a centralized control over how fixtures behave when scenes are recalled, on a power‑up, during system failures, and in group operations.

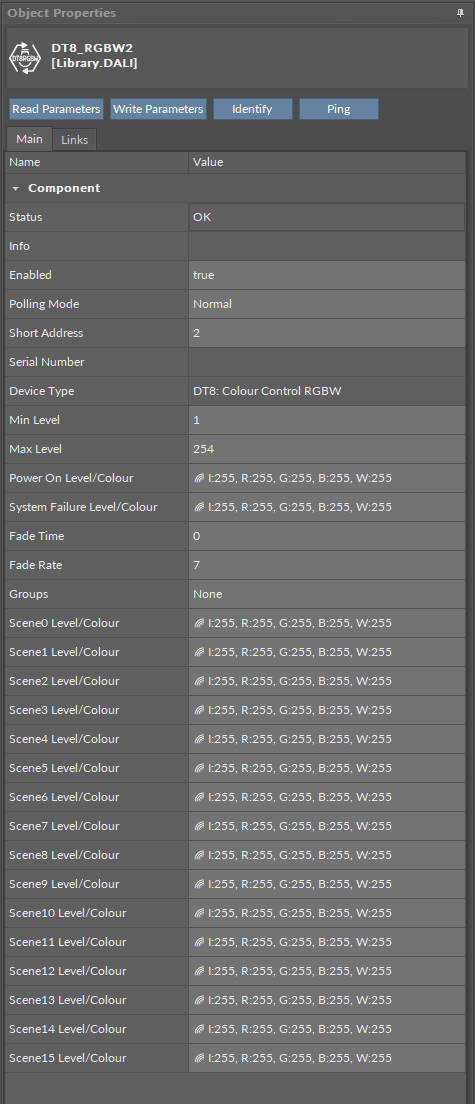

The DT8_RGBW component has the following slots:

• Status: indicates the current status of the component; if the component works properly, its status is OK. The component becomes Disabled, once the Enabled slot is in false. The component's status is Fault, once the component is not located under the Network component. If there is no response from the addressed device, the component goes into the Down status,

  • Available information: Disabled, Fault, Down, OK;

• Info: provides a detailed information about the Disabled and Fault statuses of the component;

  • Available information:

    • Incorrect placement - must be placed under Network (status Fault): occurs, when the component is placed in a different location than under the Network component;

    • Incorrect configuration (status Fault): the short address is not defined;

    • Device disabled (status Disabled): the Enabled slot in the device is set to false;

    • Network disabled (status Disabled): the Enabled slot in the network is set to false;

The Info is a numerical slot, which displays a correlated text information:

• Enabled: change of the slot's value enables or disables the component,

  • Available settings: true (enabled), false (disabled),

Note: If the Enabled slot is in false (meaning the component is disabled), the Status slot becomes Disabled.

• Polling Mode: allows to set the frequency of sending polling requests for the point's value to remote devices—the polling mode is automatically set to normal,

  • Available settings: fast, normal, slow;

• Short Address: allows to enter a DALI short address of the controlled device,

Note: Short address in this slot is not written to the device itself, only in the application controller’s logic. The communication with the remote device will be sustained if the DALI short address in the DT8_RGBW component is identical to the remote device’s. If these values differ, the DT8_RGBW component will go into the Down status.

• Serial Number: shows a serial number of a controlled device,

• Device Type: shows which type is a controlled device,

  • Available information: DT8: Colour Control RGBW;

• Min Level: allows to set a minimum output lighting level value,

• Max Level: allows to set a maximum output lighting level value,

• Power On Level/Colour: allows to set a lighting level and color value on a device’s power up,

• System Failure Level/Colour: allows to set a lighting level and color value for a case of system failure (for example, a power loss),

• Fade Time: allows to set a time for a lighting to increase/dim to a target level by a value from 0 to 15 representing times from instant change to 90.5 seconds:

• Fade Rate: allows to set a speed rate a device can reach for a light to increase/dim to a target level by a value from 0 to 15 representing speed in steps per second from the fastest change to the slowest:

• Groups: allows to assign a device to a specific group (or groups), which can represent a location, type of device, role, etc.,

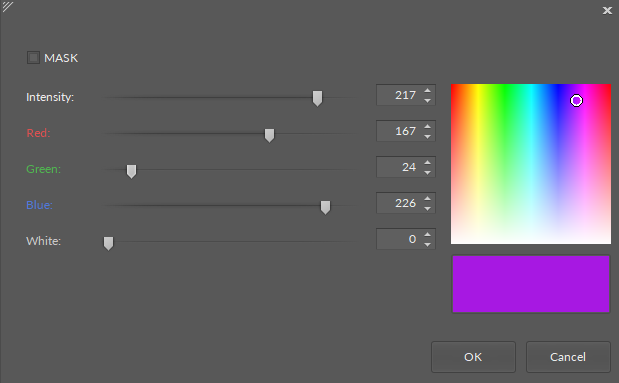

• Scene0-15 Level/Colour: allow to set different lighting intensity and red/green/blue/white color channels, which can reflect various lighting scenarios and be recalled instantly with a DALI command,

  • Available settings:

    • light intensity: 0-255, where 0-254 represent actual lighting levels and a 255 value means that when a specific scene is recalled, a device should not change its lighting level (MASK value),

    • red color channel: 0-255, where 0-254 represent actual red color channel value and a 255 value means that when a specific scene is recalled, a device should not change its red channel level (MASK value),

    • green color channel: 0-255, where 0-254 represent actual green color channel value and a 255 value means that when a specific scene is recalled, a device should not change its green channel level (MASK value),

    • blue color channel: 0-255, where 0-254 represent actual blue color channel value and a 255 value means that when a specific scene is recalled, a device should not change its blue channel level (MASK value),

    • white color channel: 0-255, where 0-254 represent actual white color channel value and a 255 value means that when a specific scene is recalled, a device should not change its white channel level (MASK value).

The DT8_RGBW component has the following actions:

• Read Parameters: reads all relevant parameters from a remote device and updates relevant slots,

• Write Parameters: writes current parameter values to a remote device (lighting levels, fade time and rate values, group(s) assignment, scene levels),

• Identify: sends the Identify DALI command to a remote device for identification,

• Ping: sends a request to a remote device and waits for an answer (if there is no response from the requested device, the DT8_RGBW component goes into the Down status).

ActionTrigger Extension

The ActionTrigger extension is designed to invoke any action that is available for the component. The extension triggers an action selected in the Action Name on the rising edge of the Action Trigger slot. If the action has parameters to set, the parameter is taken from a relevant slot automatically added to the extension (Analog Value/Binary Value/String Value).

It is possible to add more than one ActionTrigger extension to the component (for example, one for each action in the component).

The extension is added from the context menu of the component.

The ActionTrigger extension has the following slots:

• Action Name: allows to select an action to invoke;

• Action Trigger: triggers an action selected in the Action Name slot;

• Action Analog Value/Action Binary Value/Action String Value: a slot added automatically to the extension if an action selected in the Action Name slot has any specific parameters to set (depending on the type of action and its parameters, the relevant type of value is matched).
