Warning!
This section applies to the Touch Point 2.0, Touch Point ONE 2.0, Touch Point VAV 2.0, and Touch Point L&B 2.0 series.
The Touch Point Network Sensor 2.0 series does not support occupancy control.
The occupancy control feature allows a user to control occupancy through the following parameters or in the iSMA Configurator:
OCCUPANCY_MODE: allows to set an occupancy mode in the panel according to the table below:
|
Modbus value |
BACnet value |
Occupancy mode |
|---|---|---|
|
0 |
1 |
Unoccupied |
|
1 |
2 |
Occupied |
-
Modbus register: 41702;
-
BACnet object: MSV4, property: Present Value;
OCCUPANCY_CURRENT_STATUS: allows to set a current occupancy status. The current occupancy status is displayed on the panel's top right corner icon (illuminated inside the circle – occupied, outside the circle – unoccupied);
|
Modbus value |
BACnet value |
Occupancy status |
|---|---|---|
|
0 |
1 |
Unoccupied |
|
1 |
2 |
Occupied |
|
2 |
3 |
Standby |
|
3 |
4 |
Forced occupied |
-
Modbus register: 41701;
-
BACnet object: MSV3, property: Present Value.
This value can be updated in two ways depending on the OCCUPIED_CONFIG_LOCAL_MODE parameter:
OCCUPANCY_CONFIGURATION, bit 6: OCCUPIED_CONFIG_LOCAL_MODE: allows to set the occupancy to the local mode or BMS mode:
Local mode: the panel's occupancy setting is set to a local mode (the value of the OCCUPANCY_CURRENT_STATUS register is determined by the value of the OCCUPANCY_MODE register and so the value of the OCCUPANCY_CURRENT_STATUS register cannot be overwritten by the higher level system);
BMS mode: the panel's occupancy setting is set to the BMS mode. The OCCUPANCY_MODE register works separately from the OCCUPANCY_CURRENT_STATUS register.
The default value is the BMS mode.
-
Modbus register: 41707;
-
BACnet object: BO62, property: Present Value.
User Interface Parameters for Occupancy Control
Warning!
This section applies to the Touch Point 2.0, Touch Point ONE 2.0, Touch Point VAV 2.0, and series.
The Touch Point L&B 2.0 series does not support occupancy button.
The Touch Point Network Sensor 2.0 series does not support occupancy control.
Occupancy control can also be performed using the touch panel (see User Interface Guide). It is possible to change the occupancy mode depending on the configurations:
OCCUPANCY_CONFIGURATION, bit 1: EDITABLE: enables or disables the occupancy to be edited locally from the panel;
-
Modbus register: 41707;
-
BACnet object: MSV4, property: 4200.
How to change the occupancy on the touch panel?
-
Use a power button to toggle between occupied and unoccupied statuses.
-
A long press is not available for this feature.

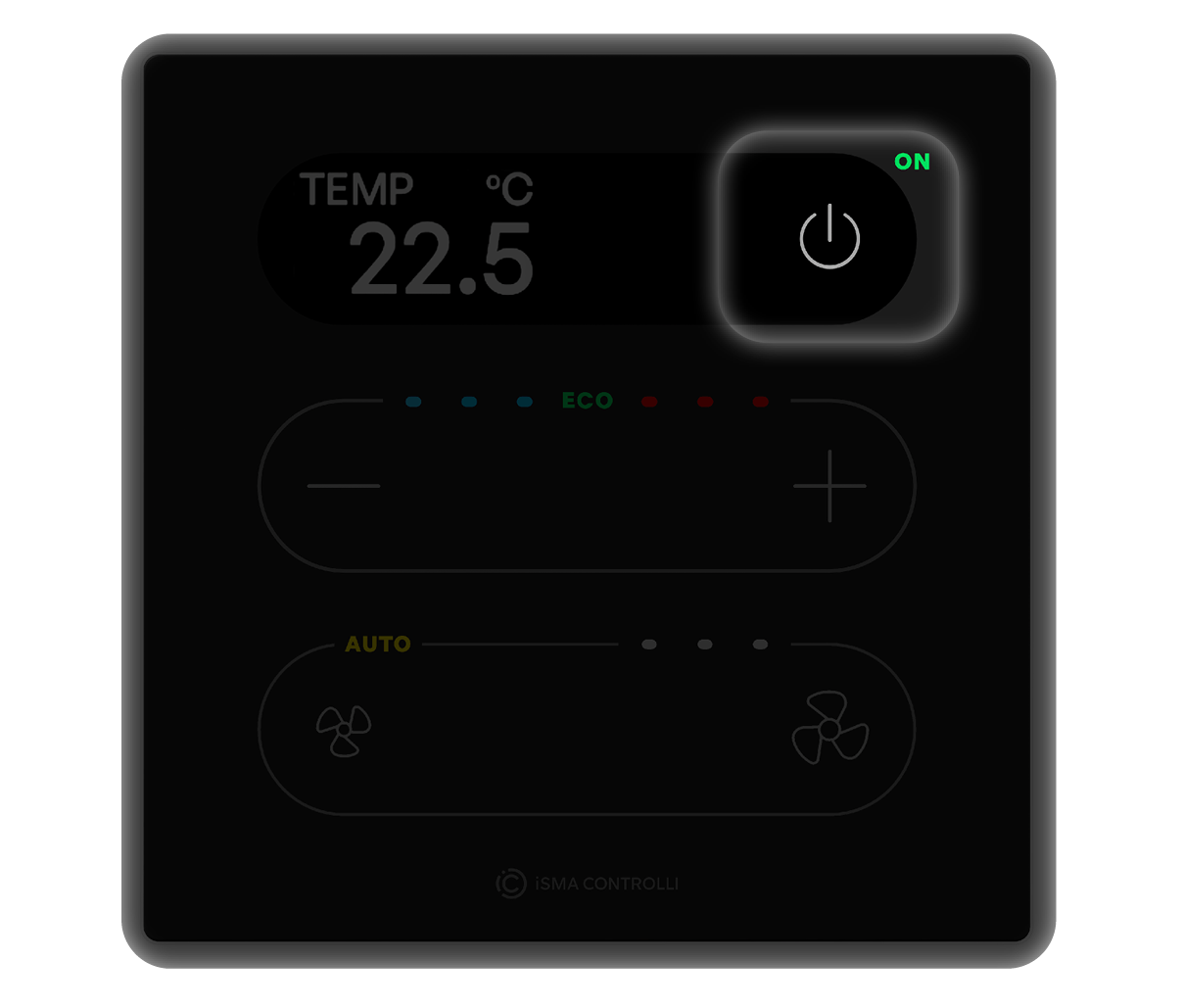

LED Indicator
Value of the OCCUPANCY_CURRENT_STATUS parameter is presented on an ON icon as follows:
-
value 0 (unoccupied): ON icon is off;
-
value 1 (occupied): ON icon is on;
-
value 2 (standby): power button is blinking, ON icon is off;
-
value 3 (forced occupied): ON icon is blinking.
