Modbus Point Manager

The Modbus Point Manager view is available for each device added to the Modbus network. It lists all Modbus points added to the Device component, and shows their Out slot value, status, object name and ID, polling mode, and enabled or disabled state.

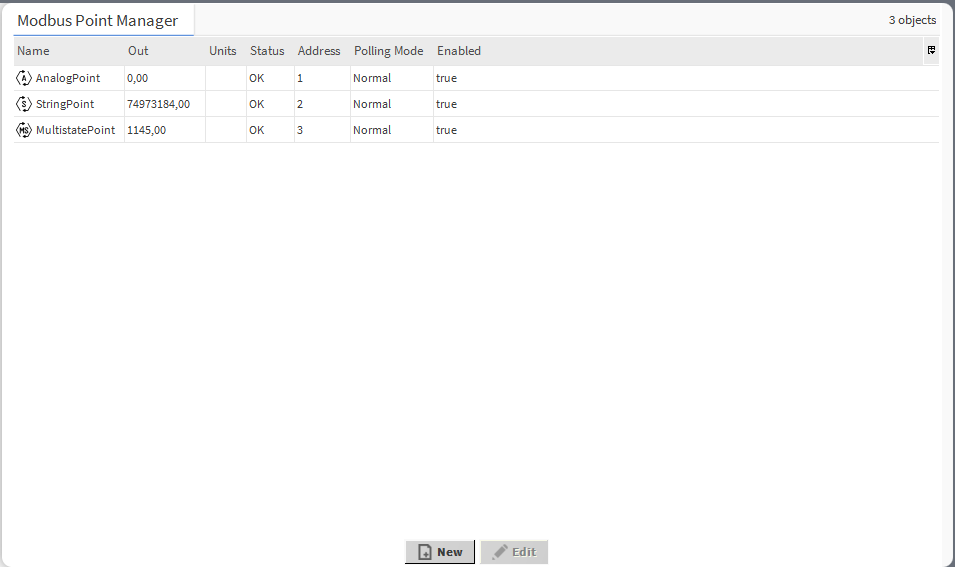

55 Modbus point manager.png

Modbus Point Manager

In the Modbus Point Manager, it is possible to:

  • add Modbus points:

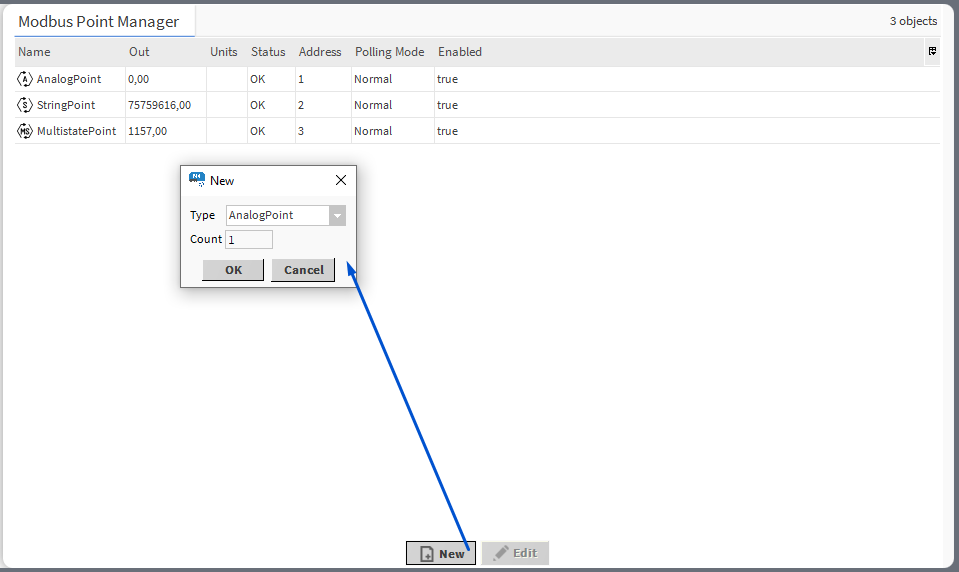

55a Modbus point manager.png

Adding new Modbus point

  • edit the Modbus point’s name, units, address and enable/disable the component:

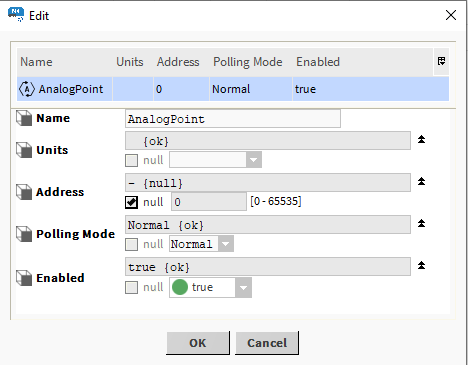

55b Modbus point manager.png

Editing pop-up

Note

Editing is possible for more than one point at a time. If multiple points are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.

55c Modbus point manager.png

Editing multiple Modbus points

  • copy/duplicate/remove Modbus points:

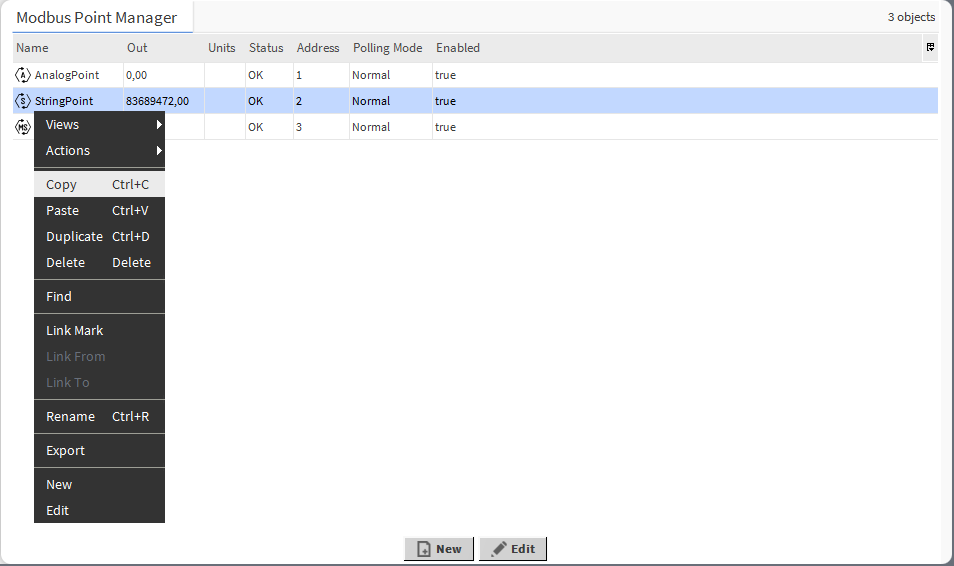

55c Modbus point manager.png

Context menu for Modbus points

Opening the Modbus Point Manager

The Modbus Point Manager view is accessible from the context menu of the Device component. It is also automatically opened if the Device component is double-clicked in the nav tree window.

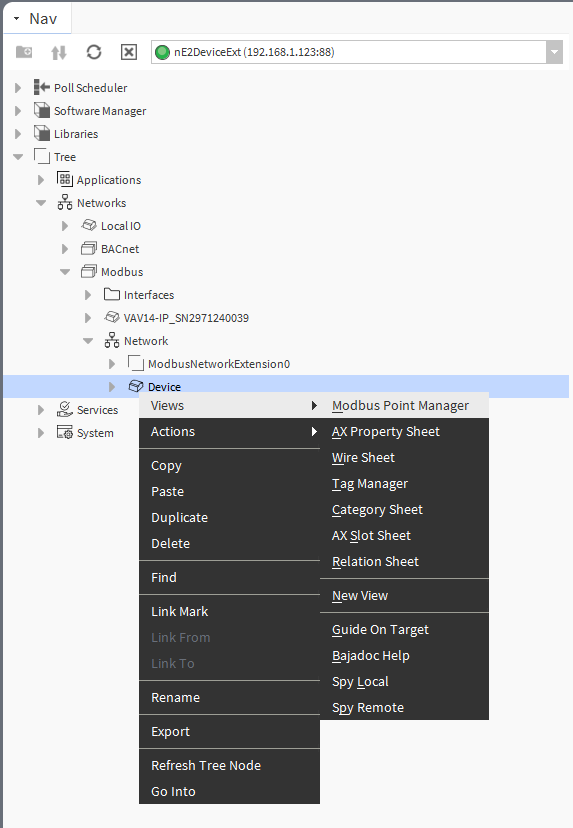

55d Modbus point manager.png

Accessing the Modbus Point Manager from the context menu
