Modbus Network Manager

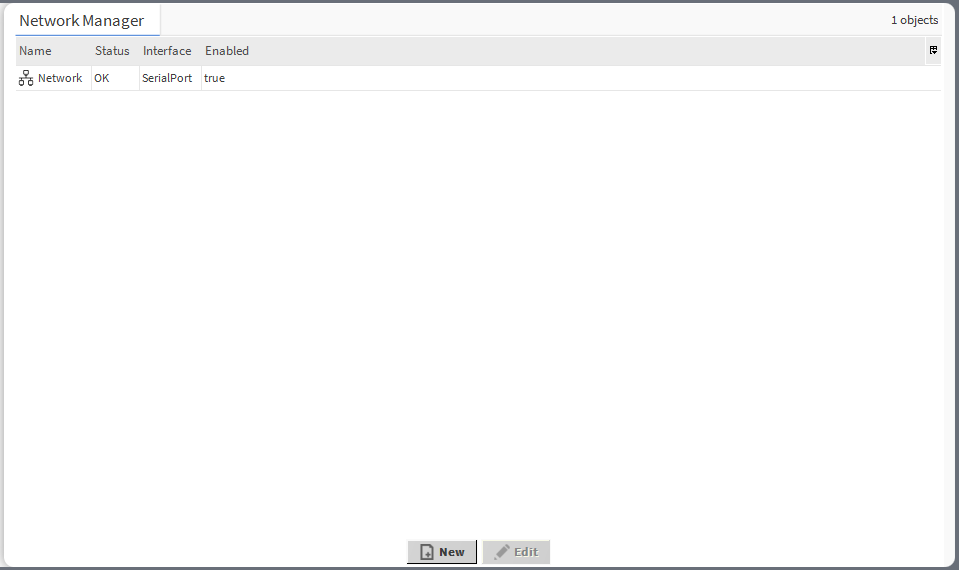

The Network Manager view is available for the Modbus component. It lists all Modbus networks configured on the device's ports. The Network Manager view shows the statuses, ports (which the network is configured on), and enabled or disabled states of the network.

In the Modbus Network Manager, it is possible to:

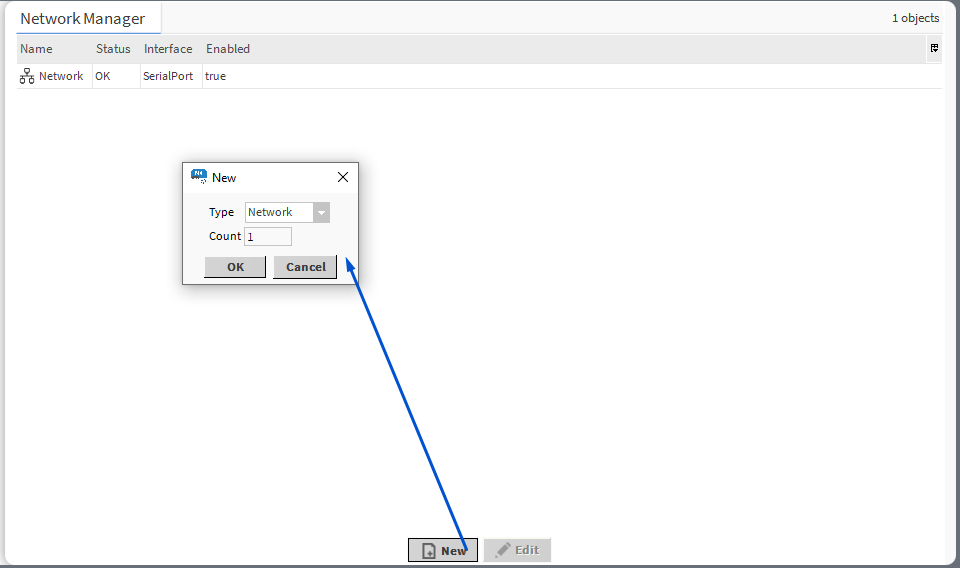

• add Modbus network component:

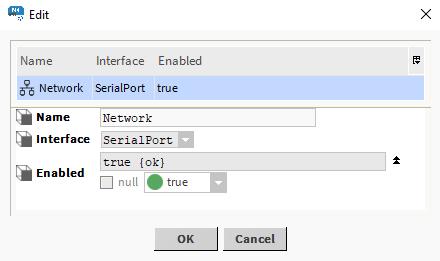

• edit the Modbus network's name, interface and enable/disable the component:

Note

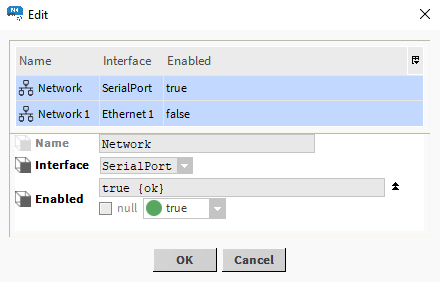

Editing is possible for more than one network at a time. If multiple networks are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.

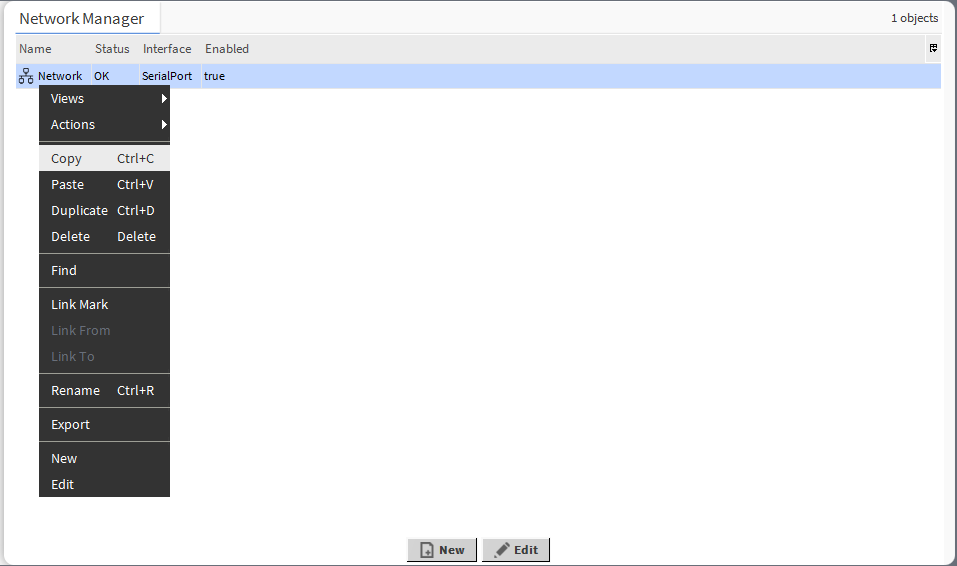

• copy/duplicate/remove Modbus network components:

Opening Modbus Network Manager

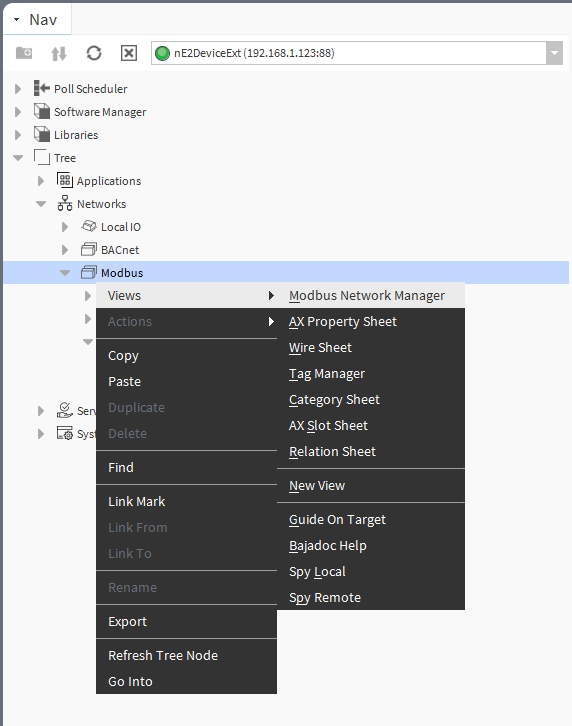

The Modbus Network Manager view is accessible from the context menu of the Modbus component. It is also automatically opened if the Modbus component is double-clicked in the nav tree window.
