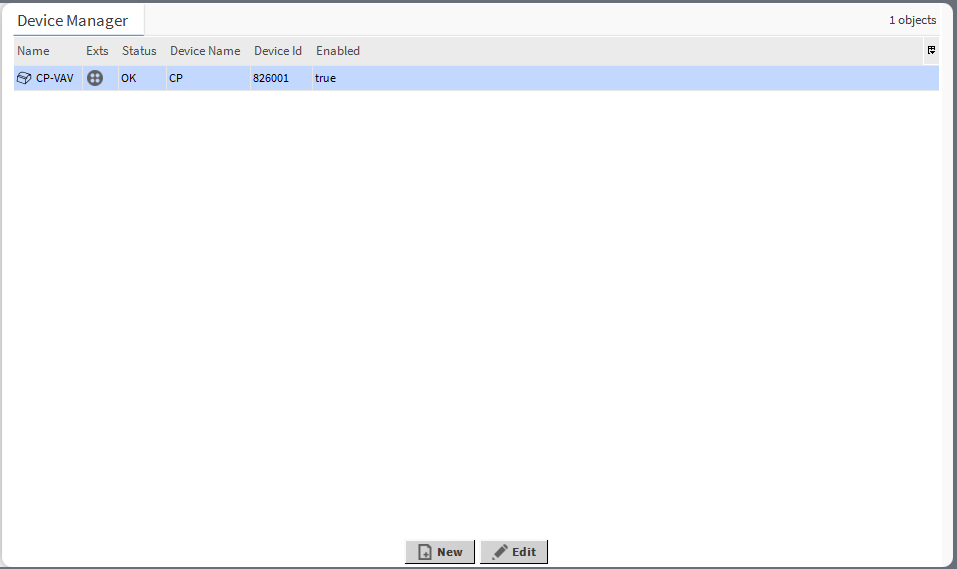

BACnet Device Manager

The Device Manager view is available for the BACnet Network component. It lists all BACnet devices added to the network. The Device Manager view shows the names, statues, device names and ID, and enabled or disabled states of the device. The special Exts columns provides quick access to the Point Manager (with all points of the relevant device).

In the BACnet Device Manager, it is possible to:

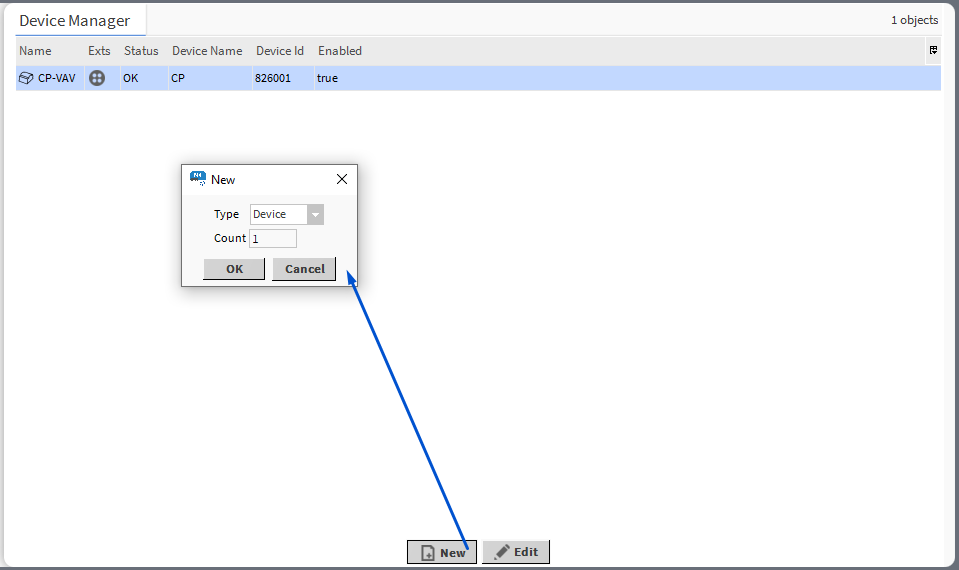

• add BACnet Device component:

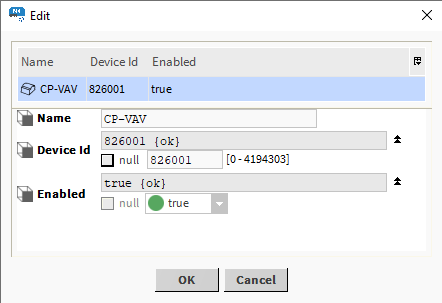

• edit the BACnet device’s name, device ID and enable/disable the component:

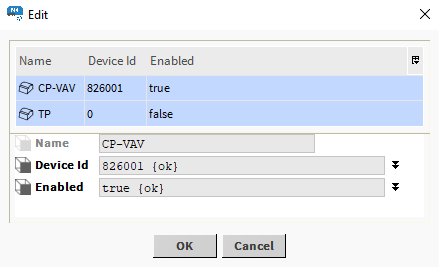

Note

Editing is possible for more than one device at a time. If multiple devices are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.

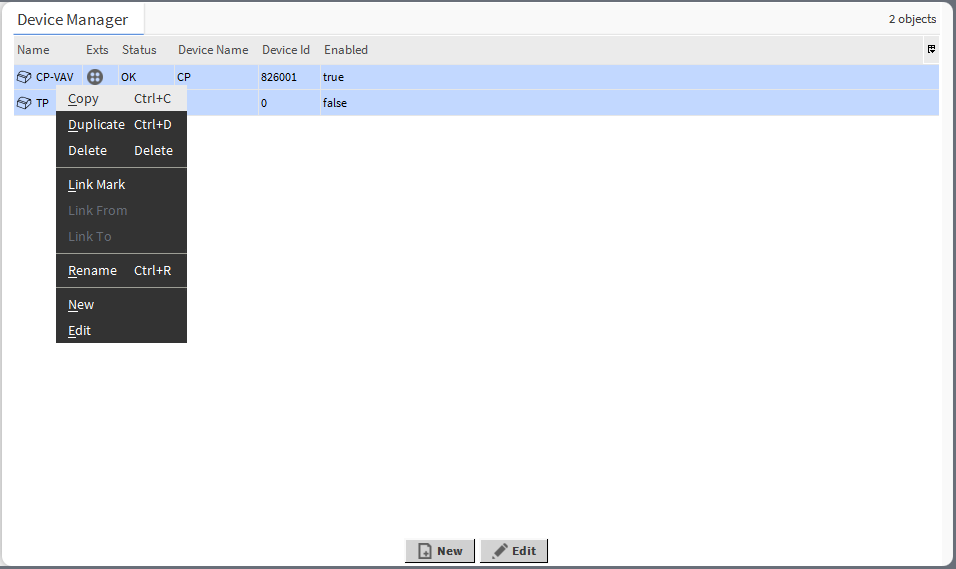

• copy/duplicate/remove BACnet device components:

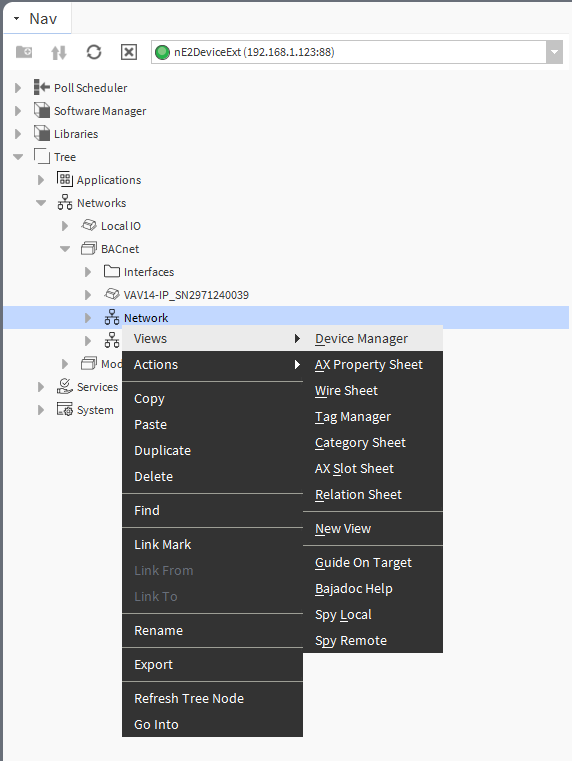

Opening BACnet Device Manager

The BACnet Device Manager view is accessible from the context menu of the BACnet Network component. It is also automatically opened if the BACnet Network component is double-clicked in the nav tree window.
