Inputs and Outputs

Local I/O

The iSMA-B-MINI/MIX modules are equipped with local inputs and outputs (universal inputs, digital inputs, analog outputs, digital outputs, and triac outputs), and their quantities differ between the modules types, according to the table:

Module Type

UI

DI

AO

DO

TO

4I4O-H


4


4



4I4O-H-IP


4


4



4O-H




4 (NC/NO-8A)



4O-H-IP




4 (NC/NO-8A)



4U4A-H

4


4




4U4A-H-IP

4


4




4U4O-H

4



4



4U4O-H-IP

4



4



8I


8





8I-IP


8




8U

8





8U-IP

8





4TO-H





4

4TO-H-IP





4

MIX18

5

5

4

4


MIX18-IP

5

5

4

4


MIX38

8

12

6

12



MIX38-IP

8

12

6

12



Inputs and outputs in MINI/MIX modules

Universal Inputs

Universal inputs support four types of input signals:

  • voltage (0-10 V DC, input impedance 100 kΩ);
  • current (0-20 mA);
  • resistance and temperature measurement (10k thermistor, a full list of supported temperature sensors is available here: List of Supported Temperature Sensors);
  • dry contact (output current 1 mA).

Current measurement is realized by voltage measurement and 200 Ω resistance. According to Ohm’s law, the current is directly proportional to the voltage, and the resistance is the constant of proportionality. (I = U / R). According to the Ohm’s law equation, for 20 mA current with 200 Ω resistance the output voltage is 4 V. It means that the 4 V voltage measured on the universal input corresponds to 20 mA current. The result is expressed in millivolts.

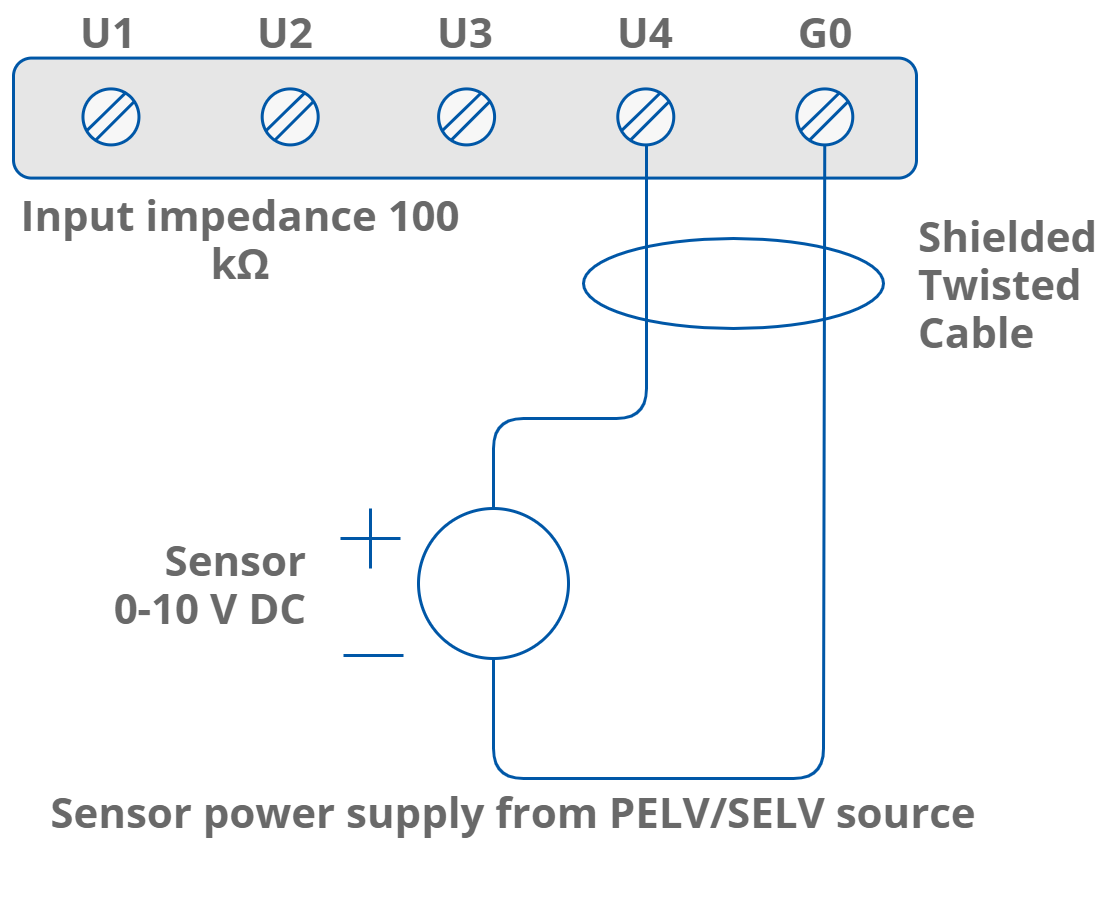

Universal Input Voltage Connection

A universal input voltage connection

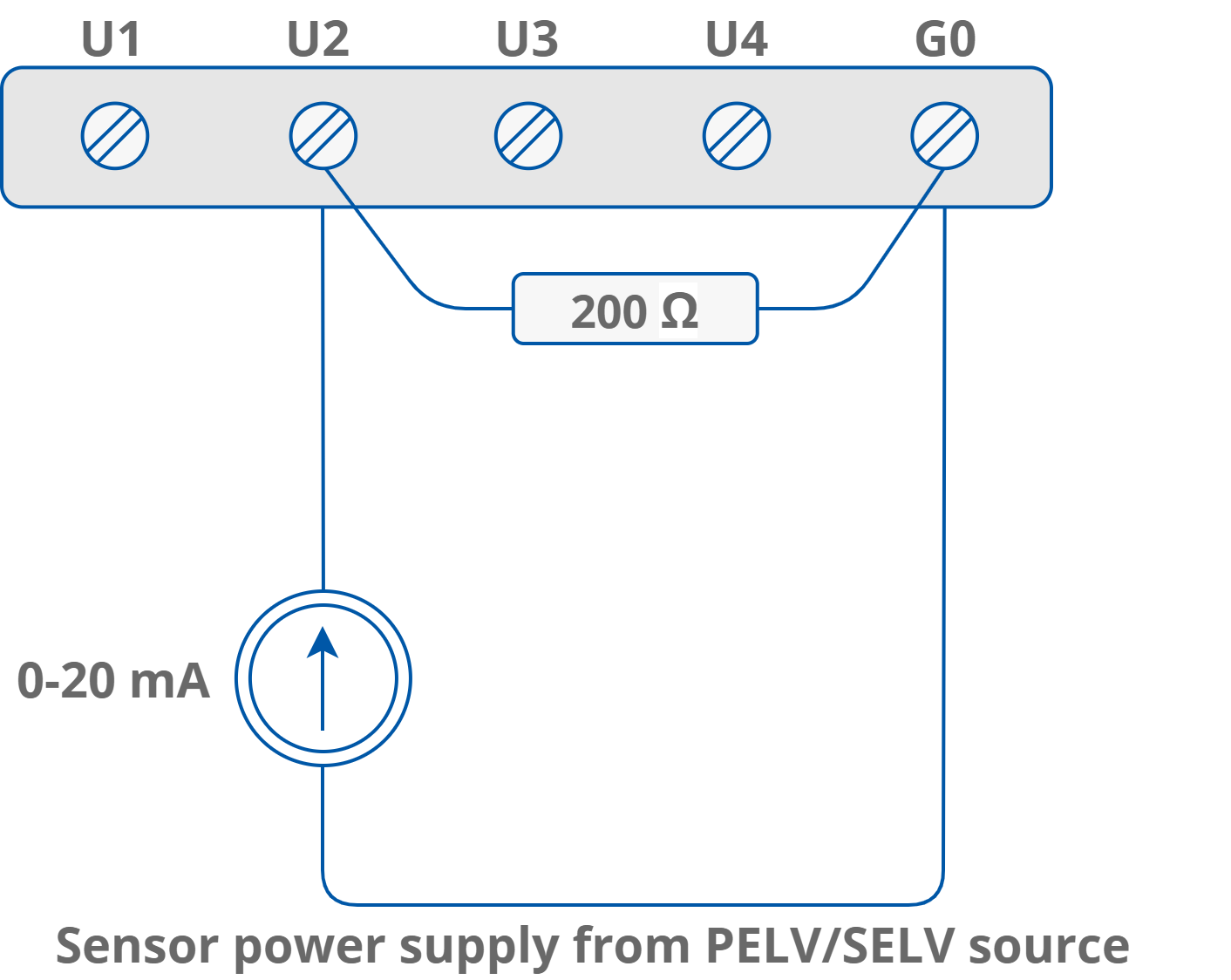

Universal Input Current Connection

A universal input current connection

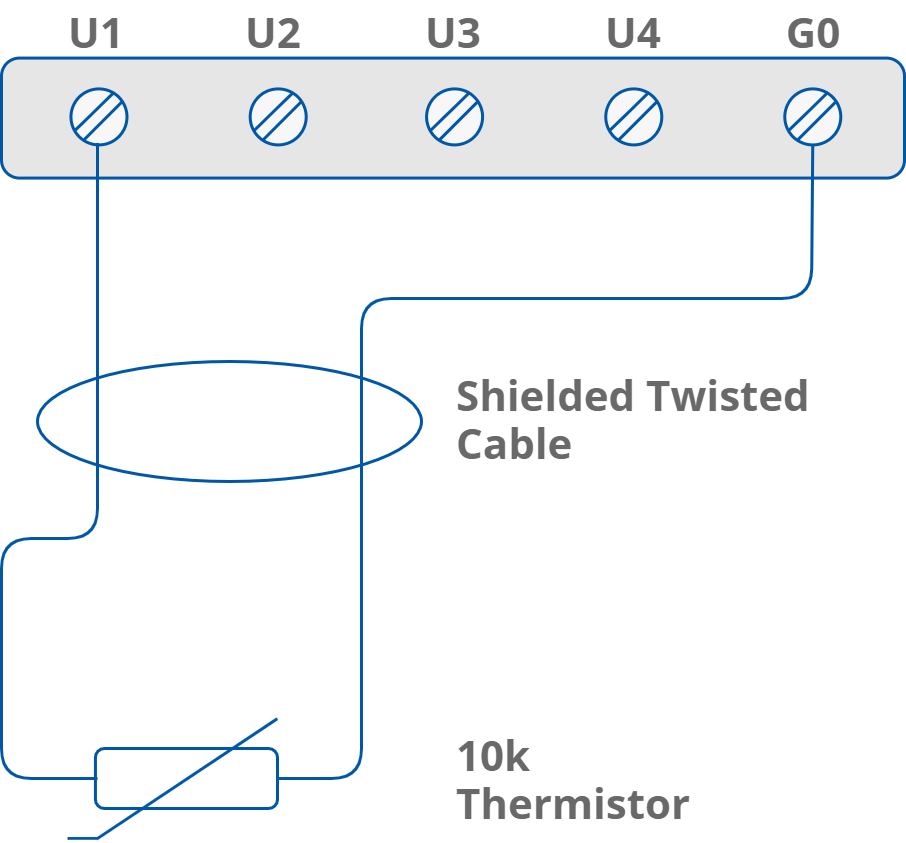

Universal Input Resistance Connection

A universal input resistance connection

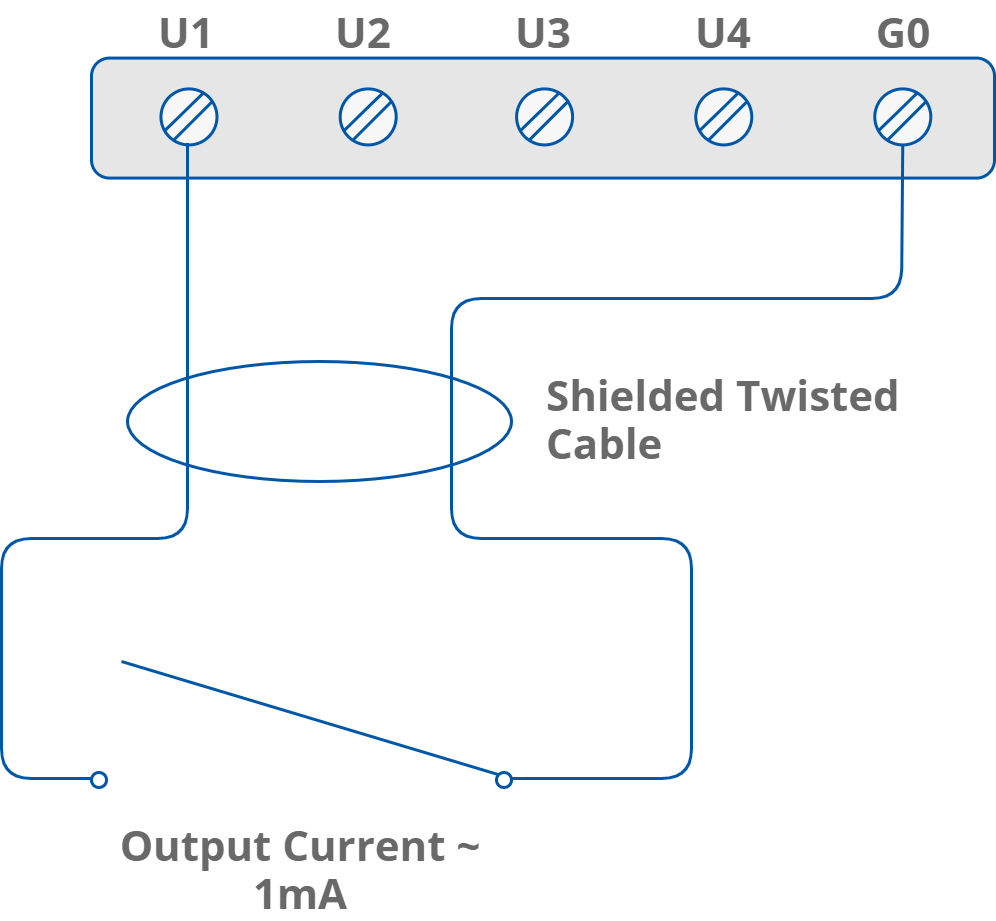

Universal Input Dry Contact Connection

A universal input dry contact connection

Digital Inputs

Digital inputs operate as standard dry contact inputs and, additionally, as high speed pulse counters up to 100 Hz.

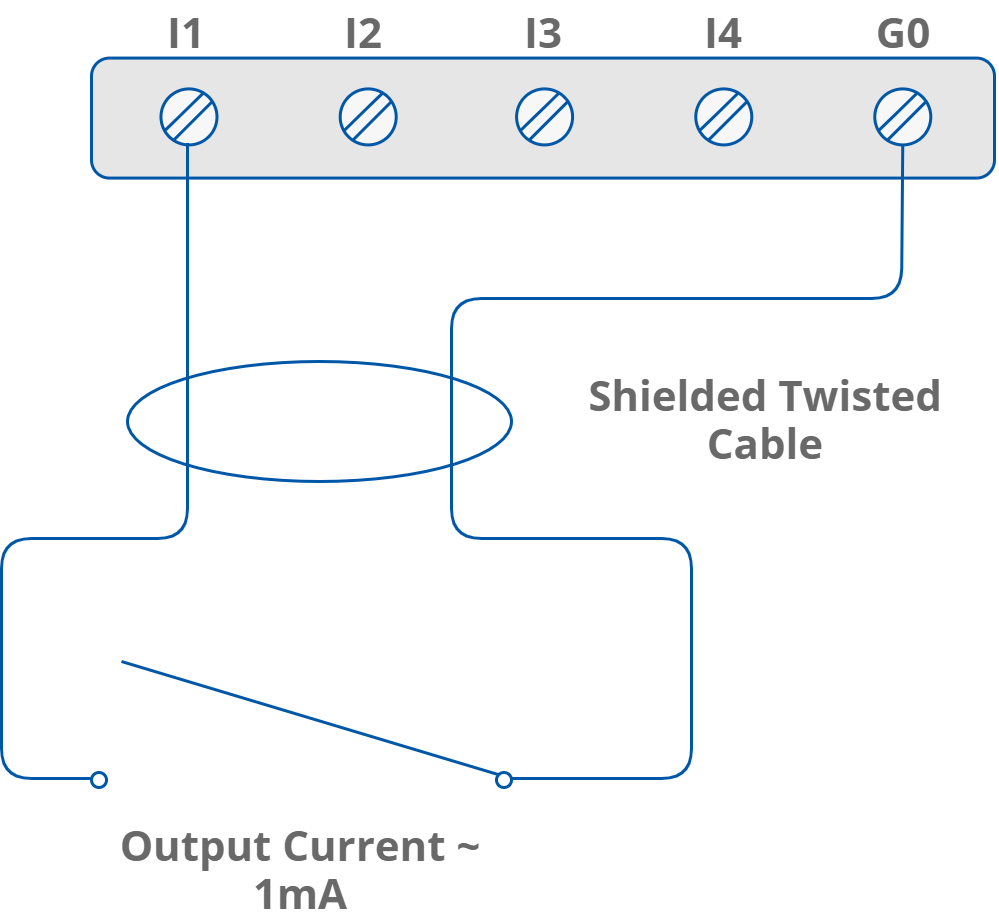

A digital input connection

Digital Input Counter

A digital input can work as a counter of dry contact pulses up to 100 Hz. The connection is identical as in case of the dry contact input.

Analog Outputs

Analog outputs provide a 0-10 V DC output with maximum load up to 20 mA. They support three types of output signals:

  • voltage (0-10 V DC) with maximum load up to 20 mA;
  • digital;
  • Pulse Width Modulation (PWM) 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz, 100 Hz.

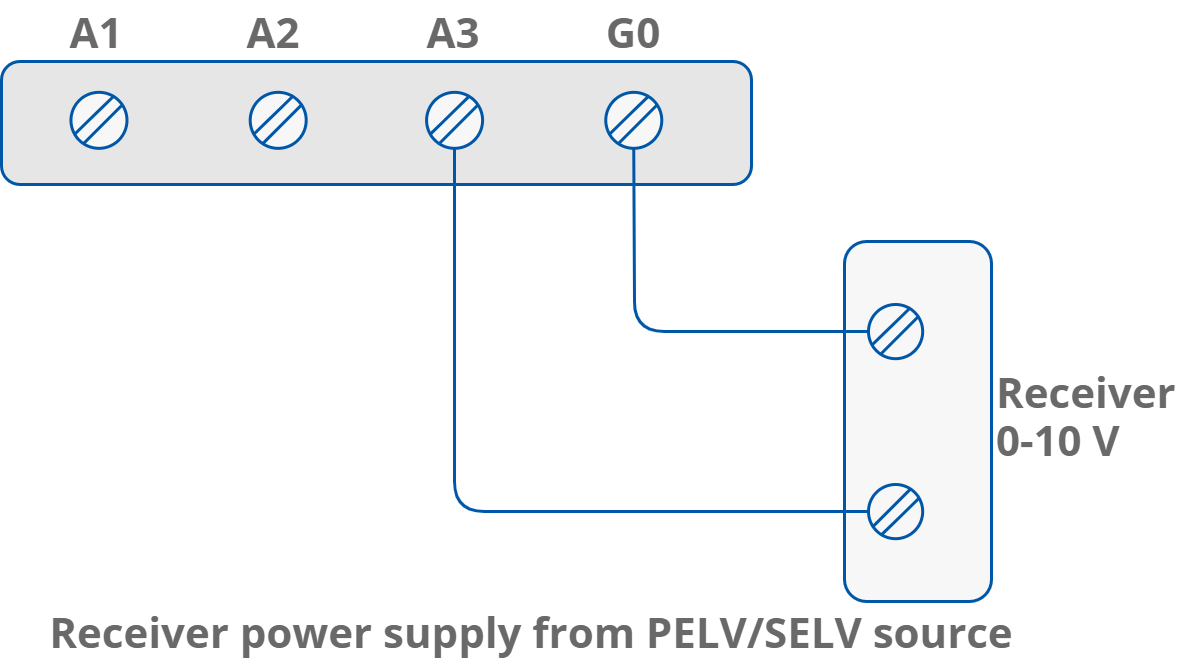

Analog Output Voltage Connection

An analog output voltage connection

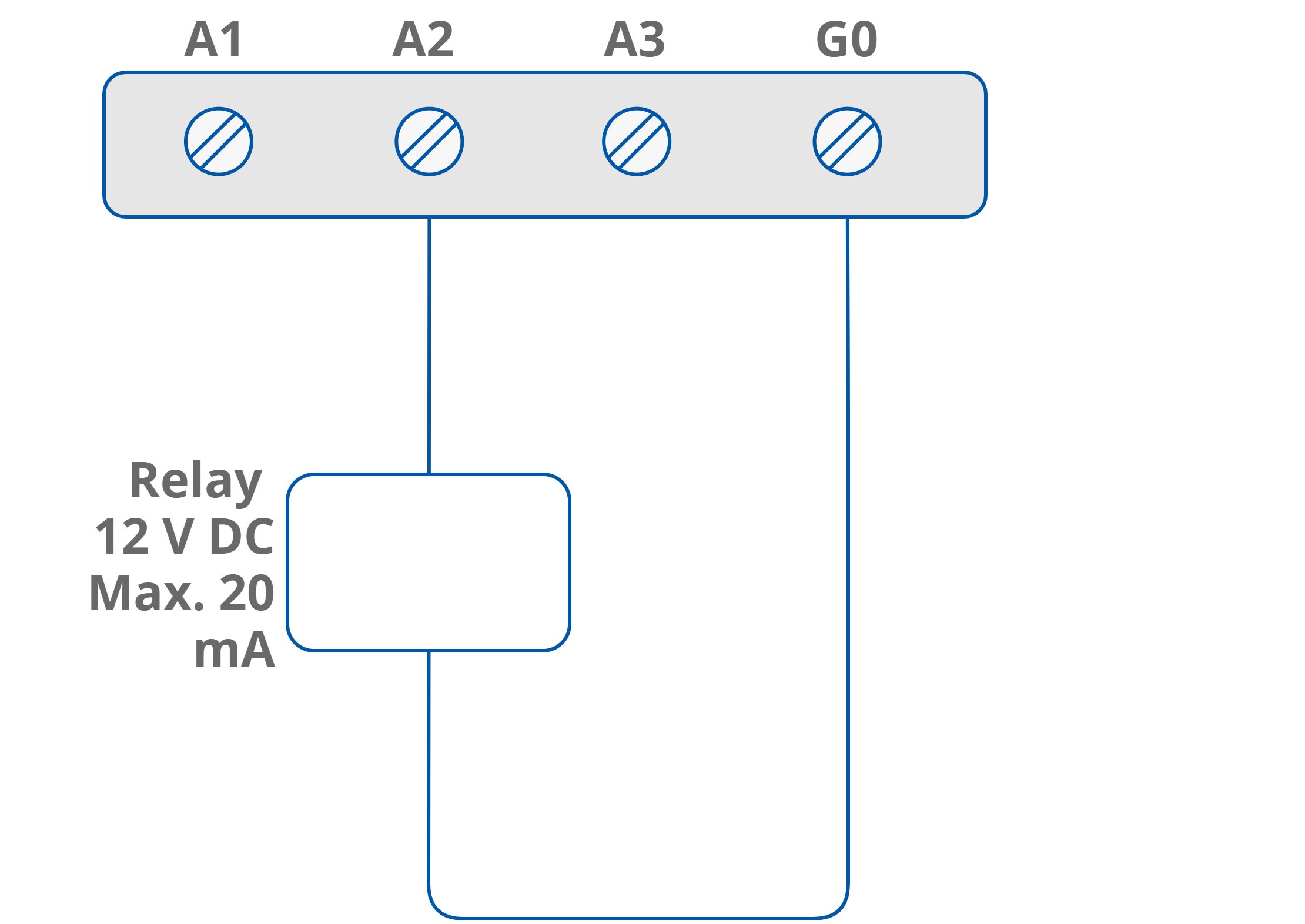

Analog Output Relay Connection

An analog output relay connection

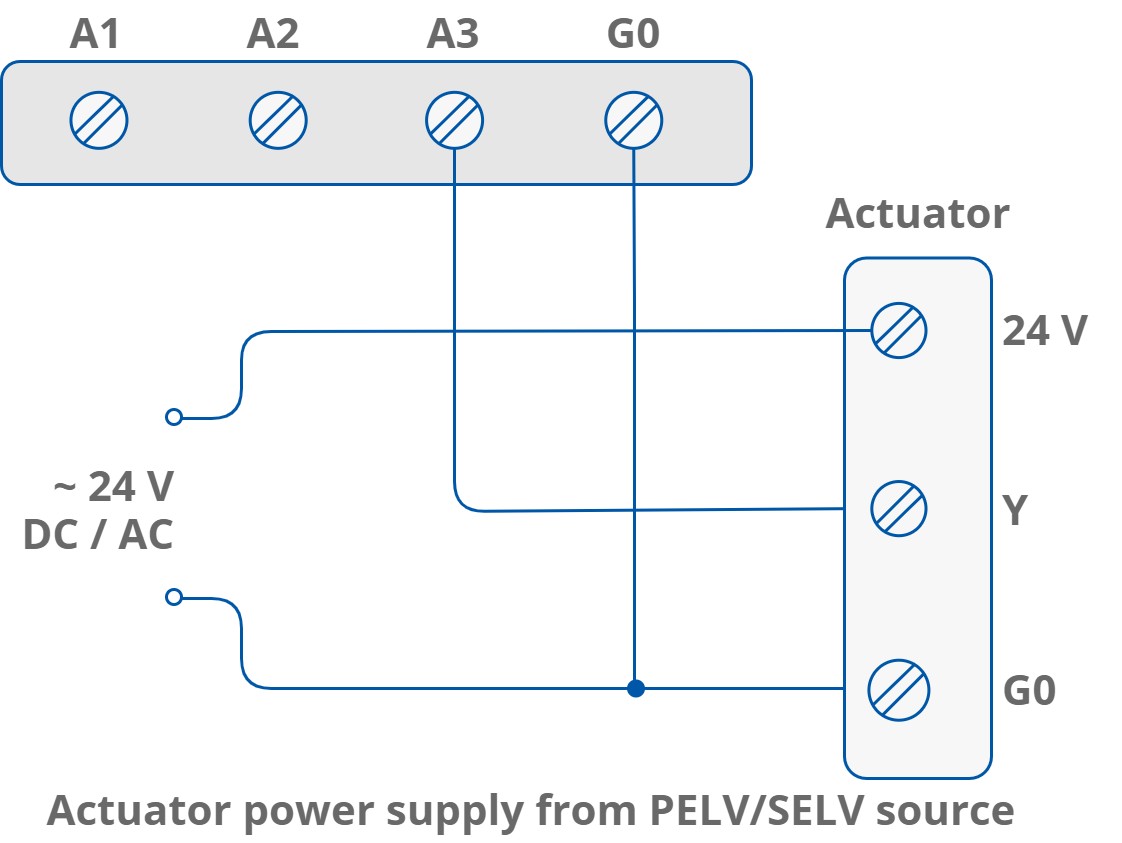

Analog Output Actuator Connection

An analog output actuator connection

Digital Outputs

Digital outputs operate as relay outputs with maximum loads of:

  • resistive load: 3 A at 230 V AC, and 3 A at 30 V DC;
  • inductive load: 75 VA for 230 V AC and 30 W for 24 V DC.

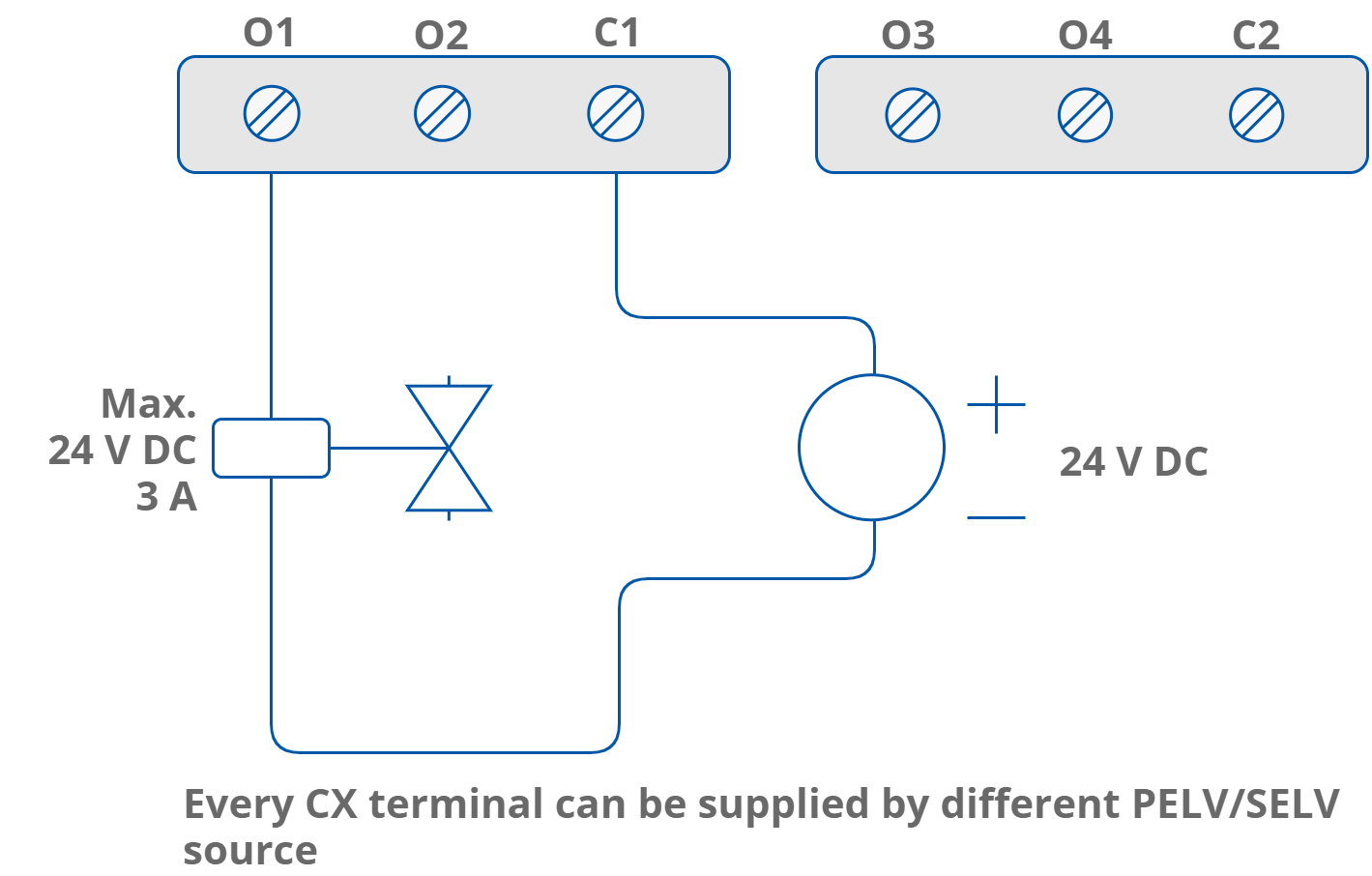

Digital Output Solenoid Valve Connection

A digital output solenoid valve connection

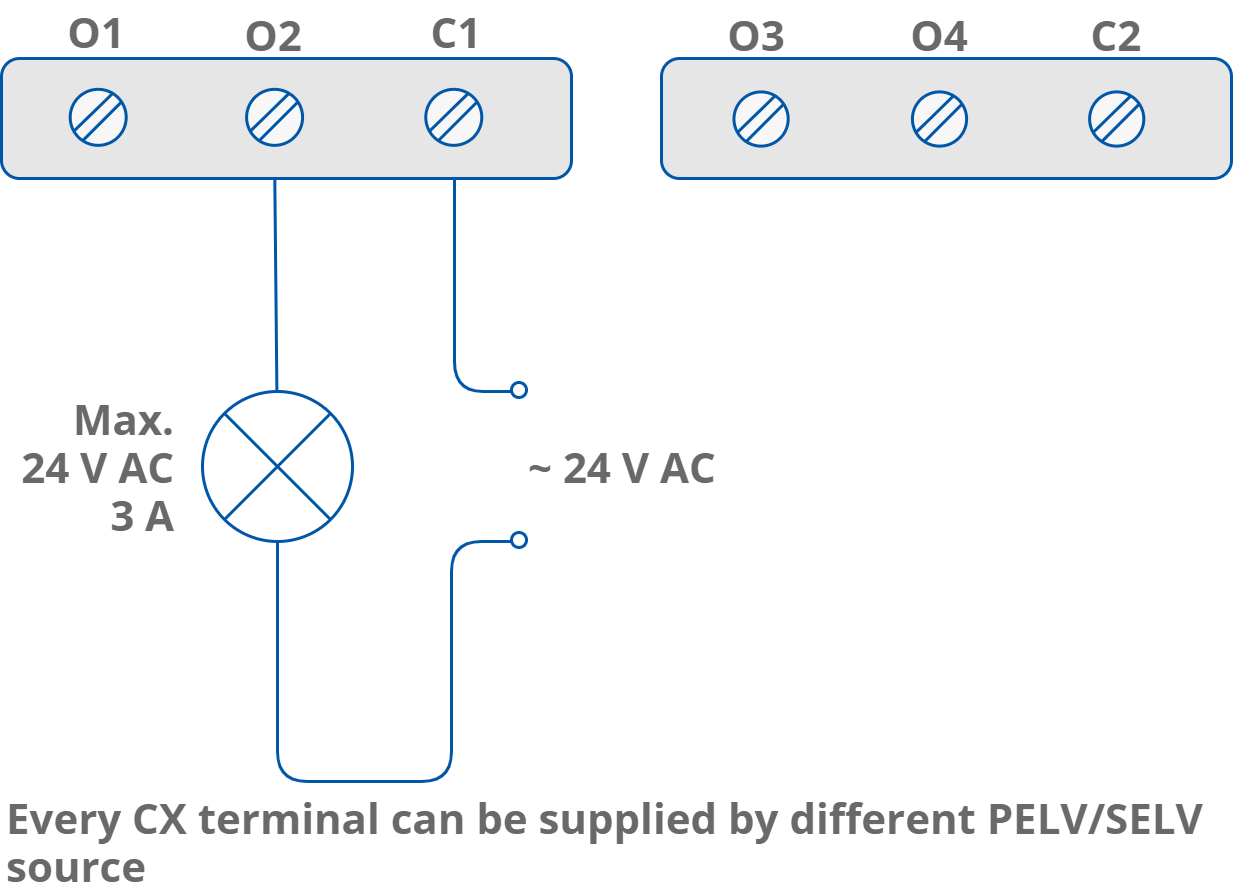

Digital Output Resistive Load Connection

A digital output resistive load connection

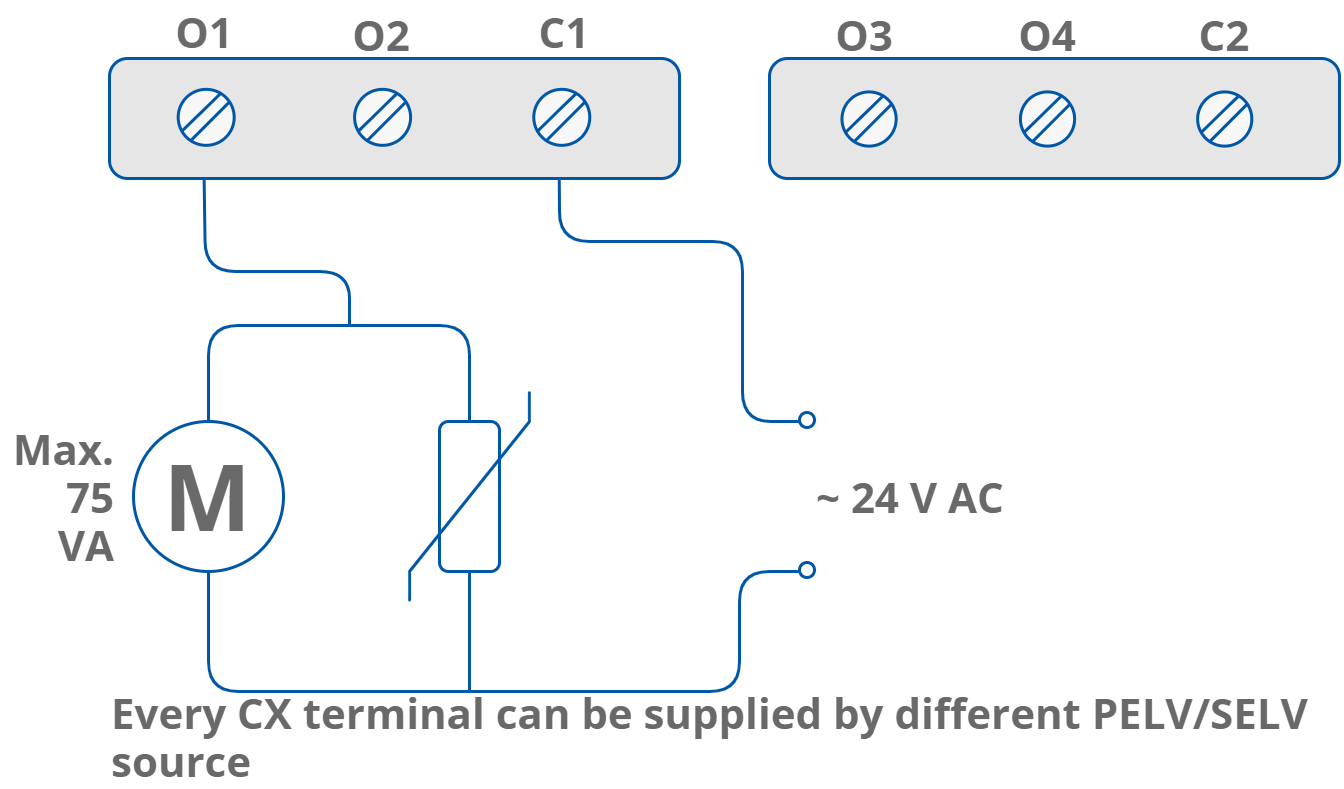

Digital Output Inductive Load Connection

A digital output inductive load connection

Triac Outputs

Triac outputs work as typical binary outputs or in Pulse Width Modulation (PWM) mode: 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz.

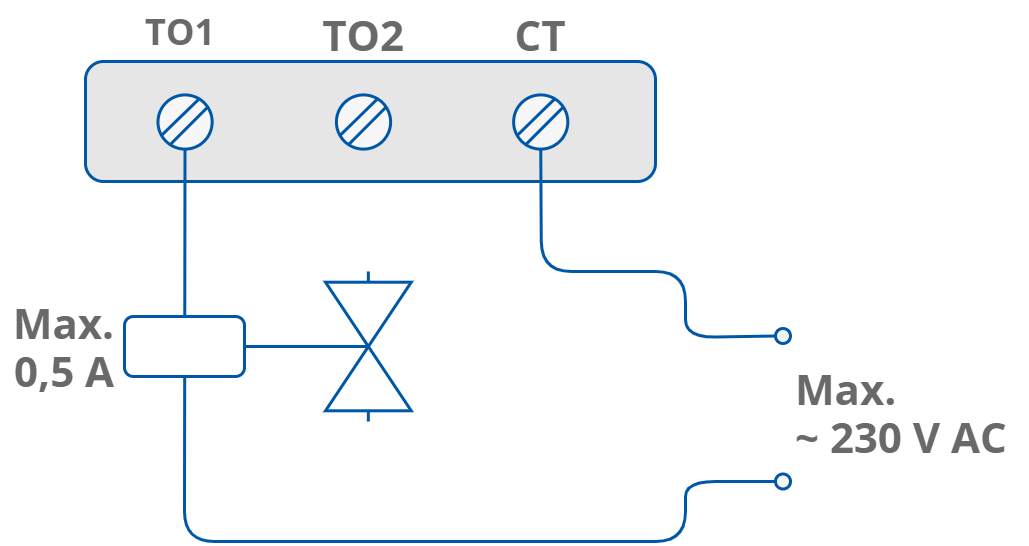

A triac output connection
