Web Configuration
This section outlines all information specific to configuring IP modules in a web server.
WARNING!
Please note that web configuration features are available only for IP versions for the MINI/MIX modules.
Web Server Access
All IP version modules are equipped with a built-in web server, which allows for showing the status of the module and for changing the configuration.
To access the web server, open a browser, and enter the IP address of the module; the default address for a new module is 192.168.1.123. Please use the following default credentials:
Username: platform
Password: 1000 (by default)
Note: The web server can be disabled by setting the HTTP port to 0. This option is available for firmware versions 6.5 and up.

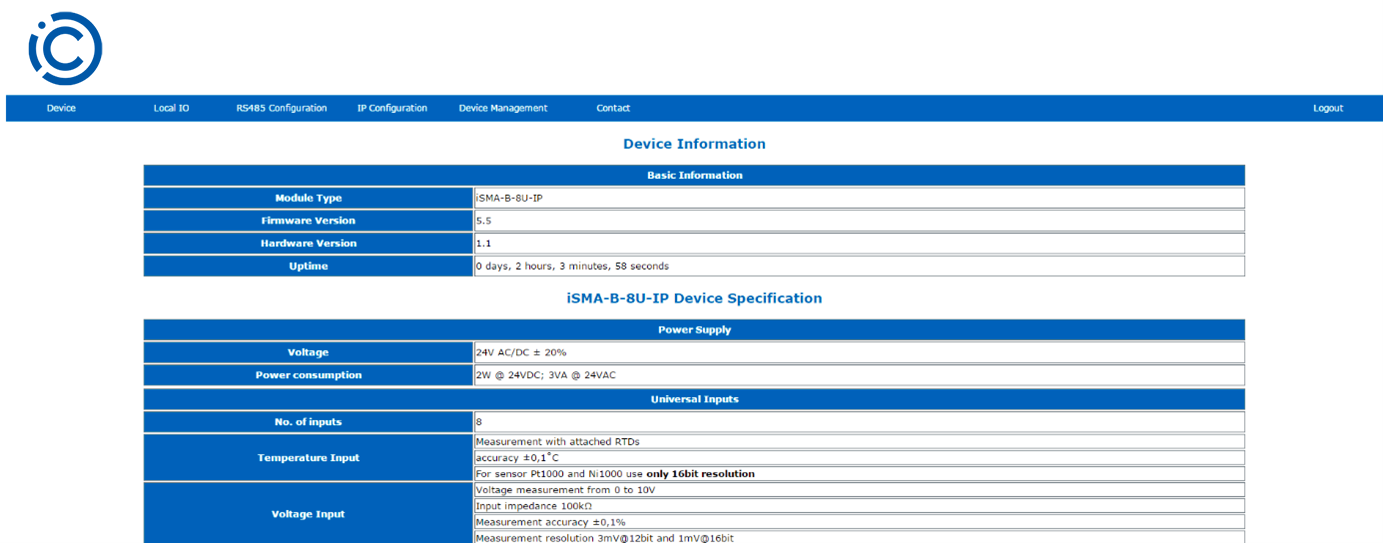

Device Page
This page contains information about the device and its technical specification. Basic Information section includes information about the type of the module, its firmware version and uptime. The Device Specification includes information about Power Supply, Inputs/Outputs parameters, Interfaces, and mechanical parameters.
