Hardware Specification


Dimensions

MINI Series Dimensions

MINI dimensions_2.png

The MINI series dimensions

MIX18 Series Dimensions

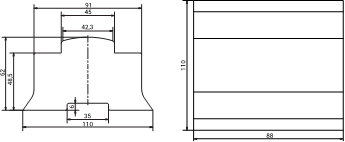

MIX18 dimensions_2.png

The MIX18 series dimensions

MIX38 Series Dimensions

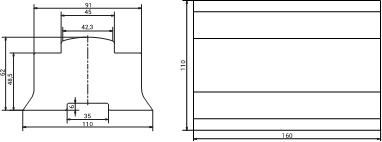

MIX38 dimensions_2.png

The MIX38 series dimensions

Power Supply Connection

05a AC_2.png

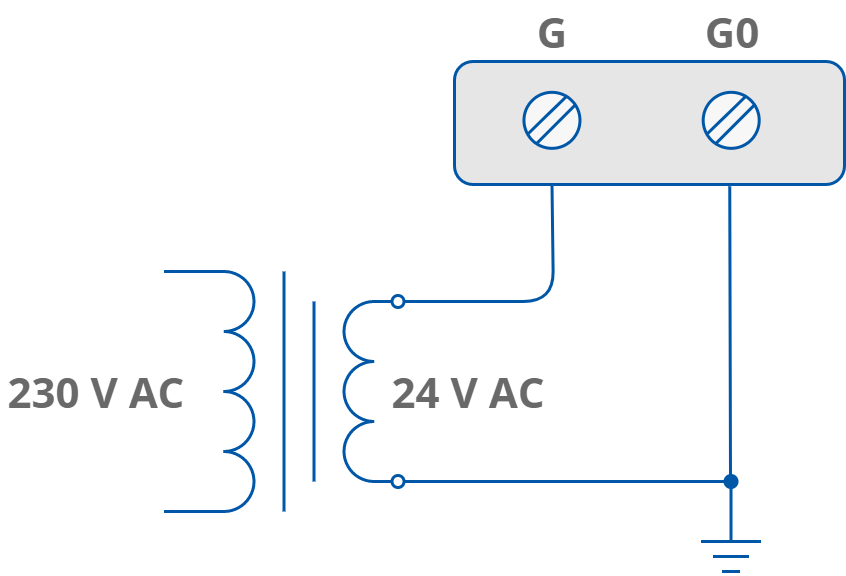

AC power supply connection


05b DC_2.png

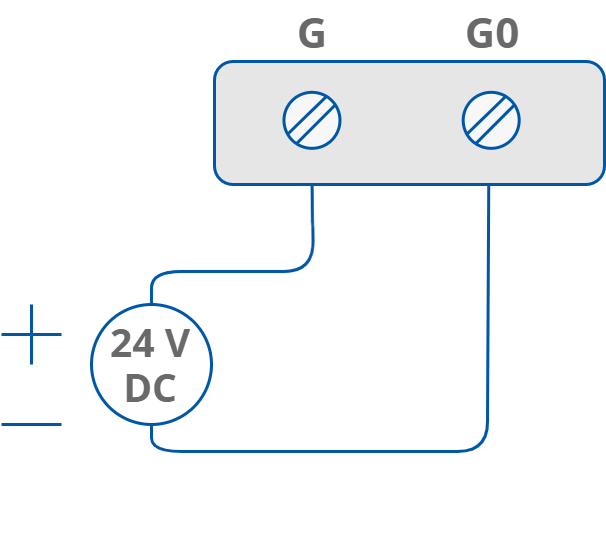

DC power supply connection

LED Indicators

MIX Series Front Panels

MIX18 Top Panels

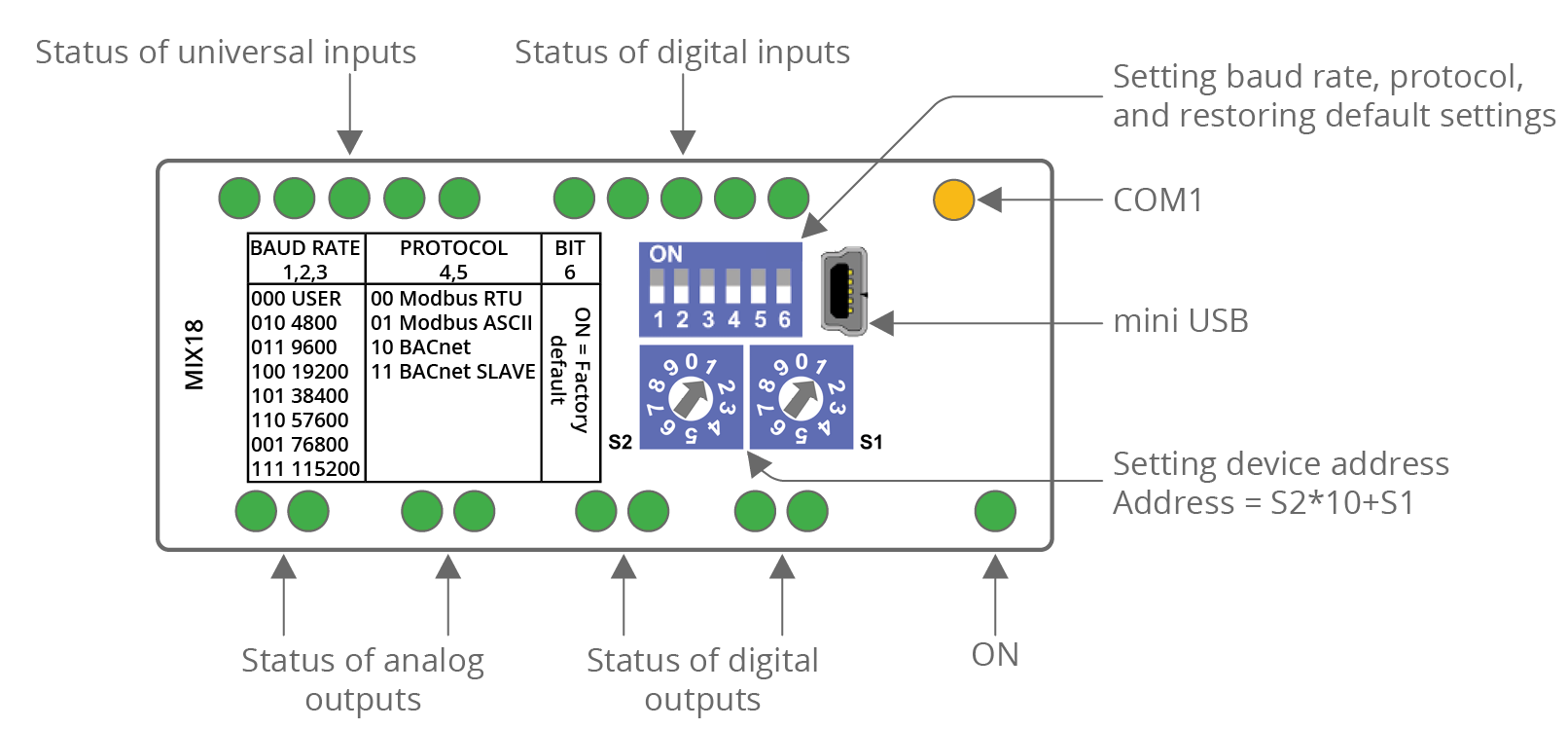

The MIX18 top panel

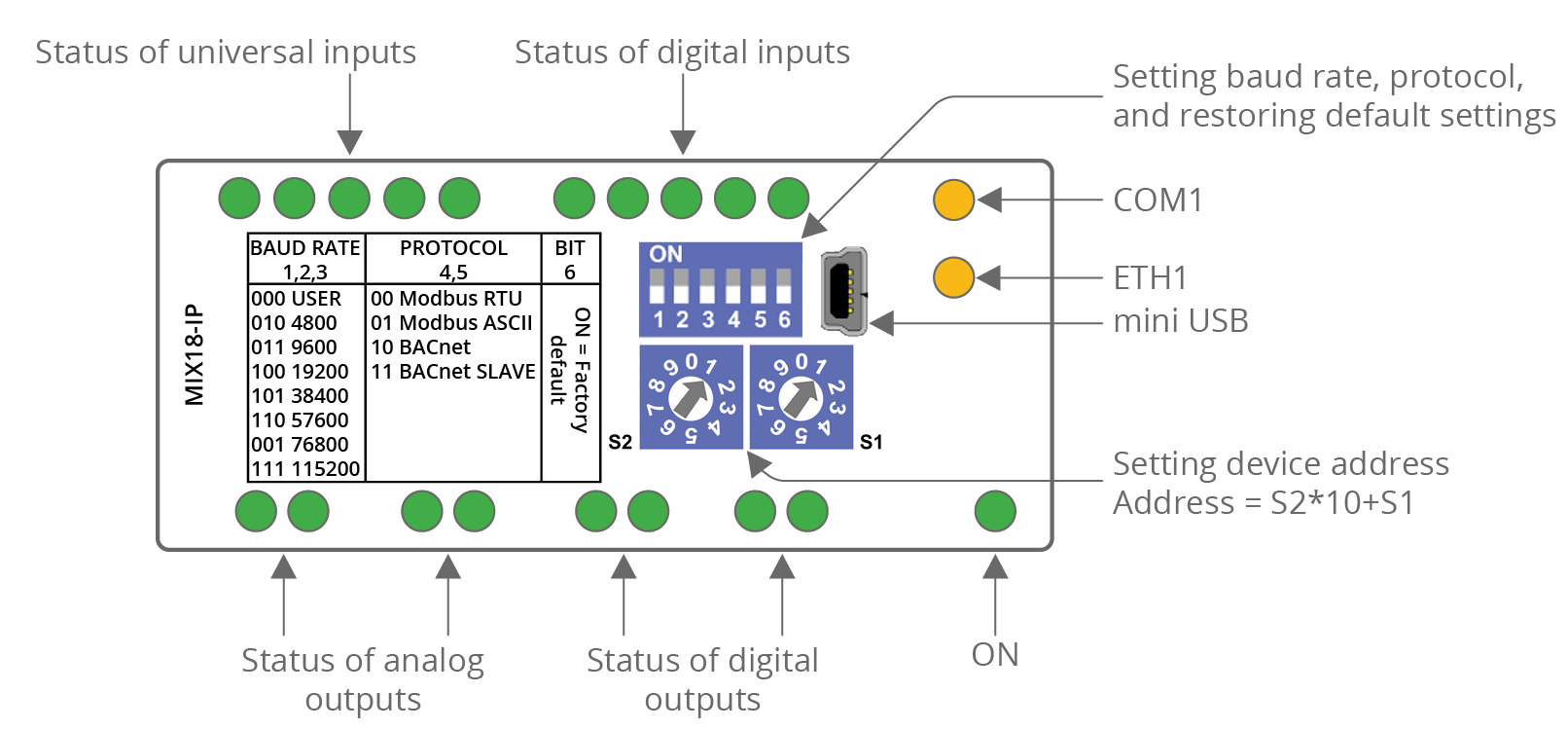

The MIX18-IP top panel


MIX38 Top Panels

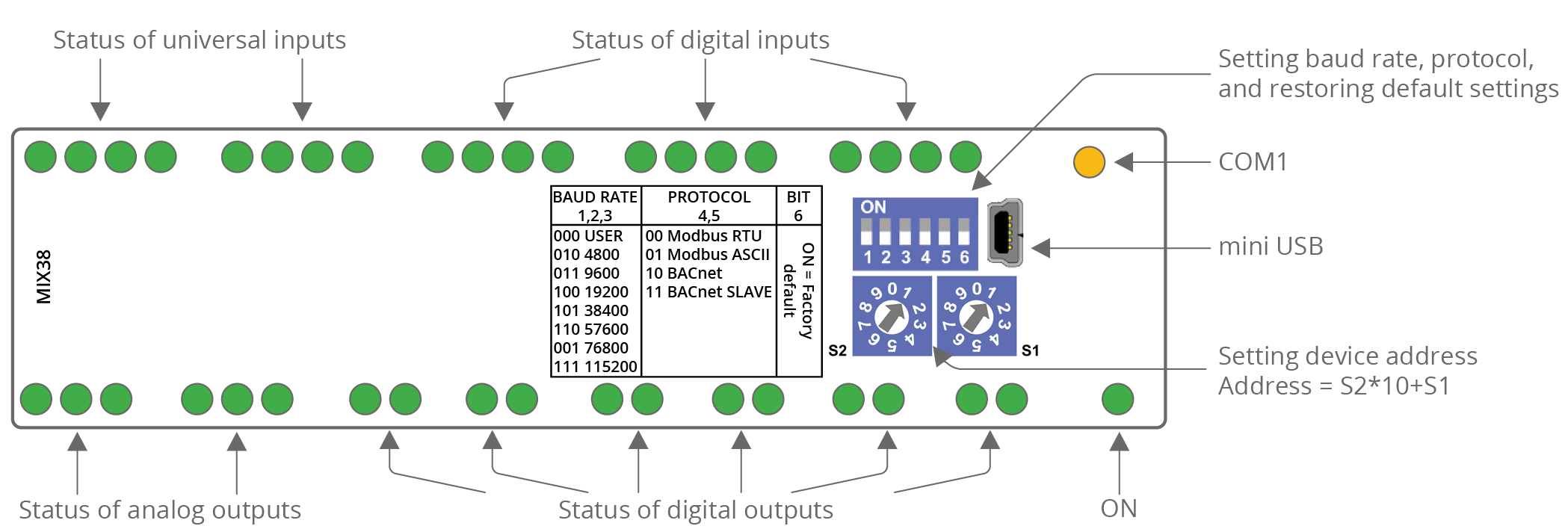

The MIX38 top panel

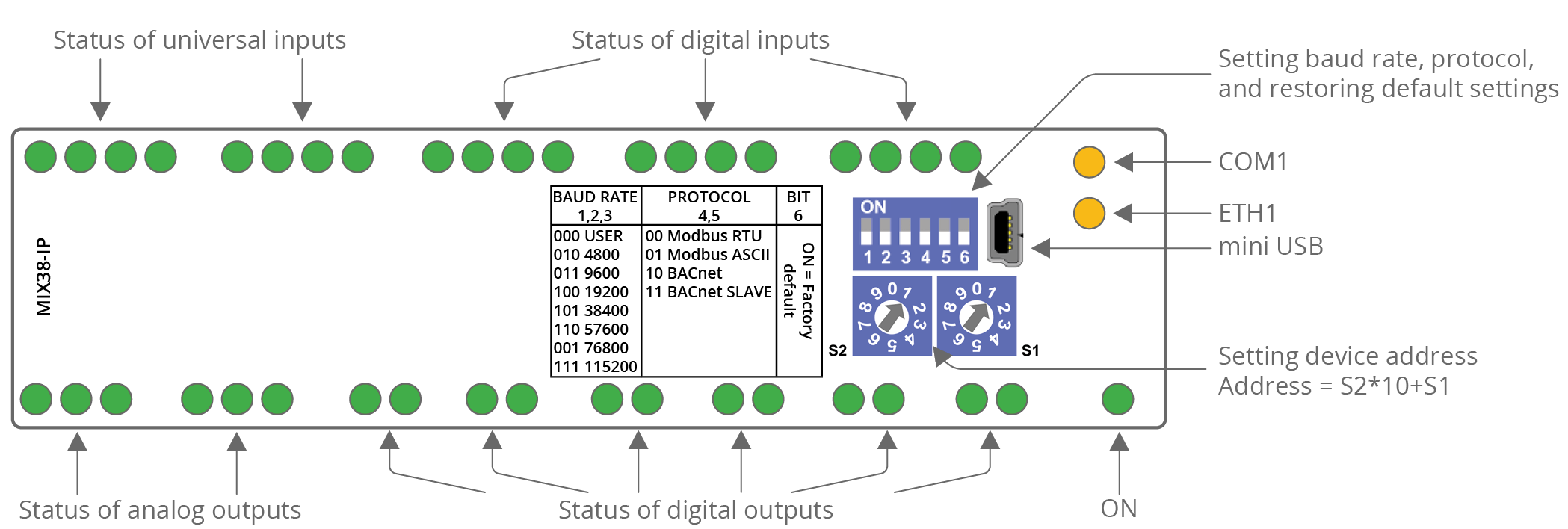

The MIX38-IP top panel


MINI Series Front Panels

MINI 8I and 8I-IP Top Panels



The 8I top panel

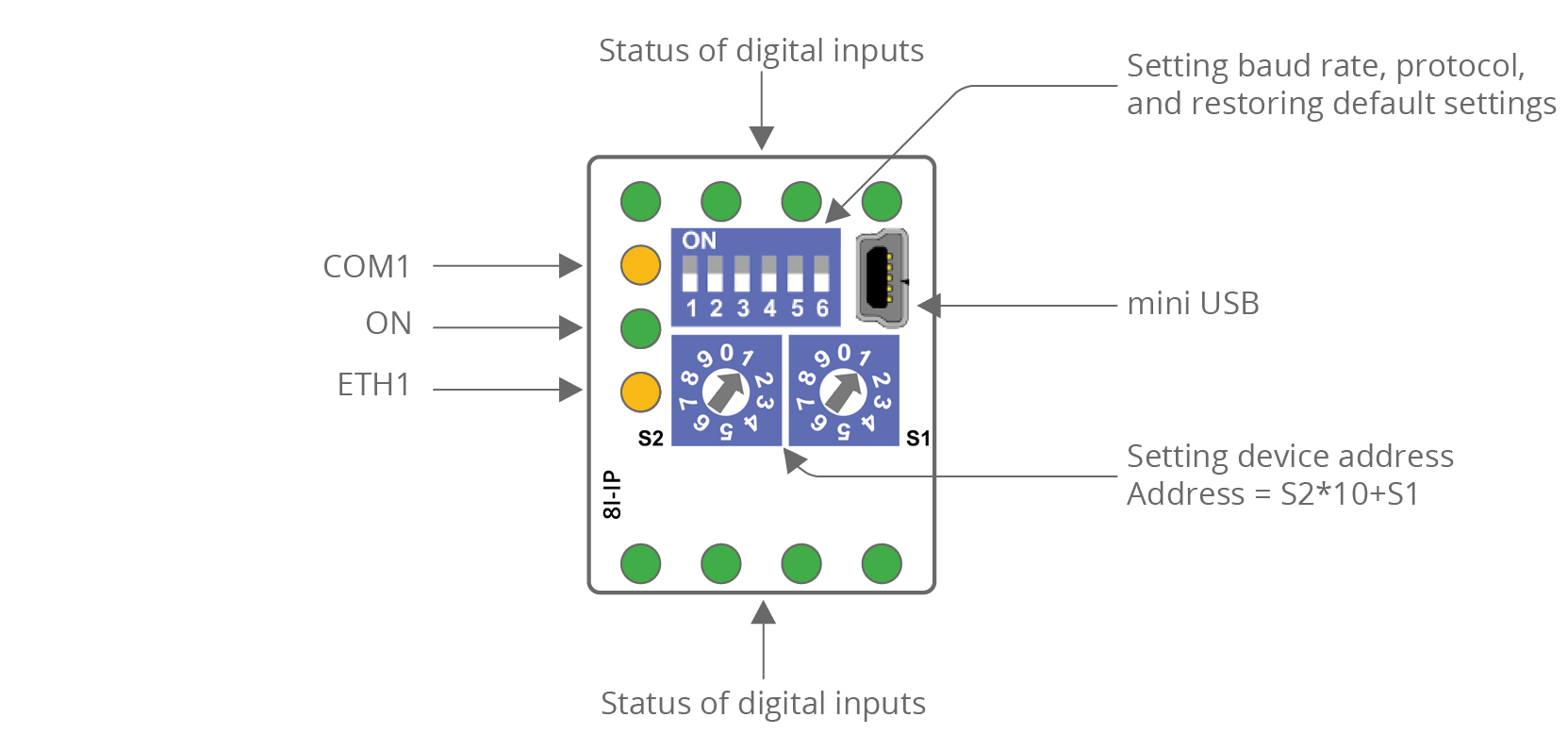

The 8I-IP top panel


MINI 8U and 8U-IP Top Panels

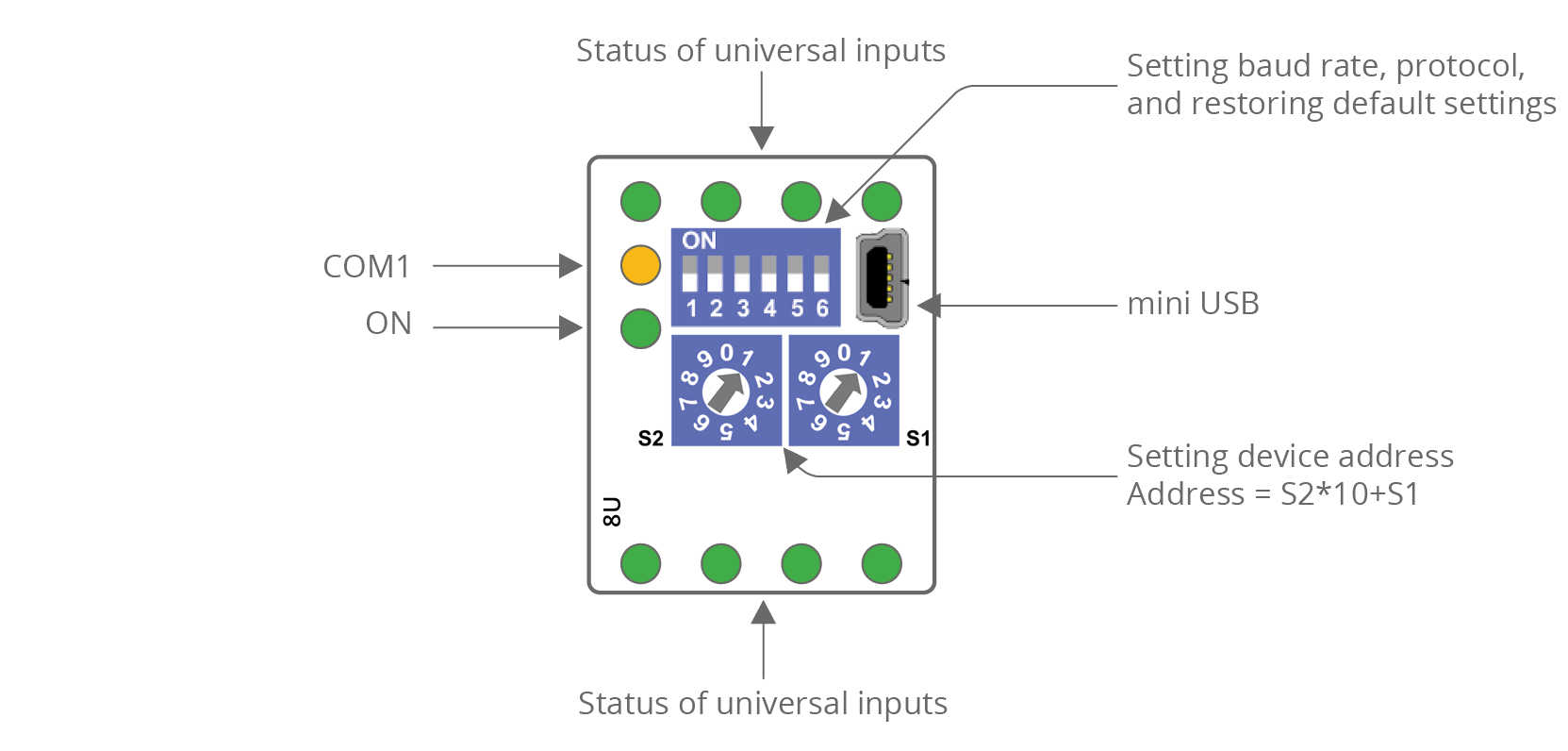

The 8U top panel




The 8U-IP top panel


MINI 4I4O-H and 4I4O-H-IP Top Panels

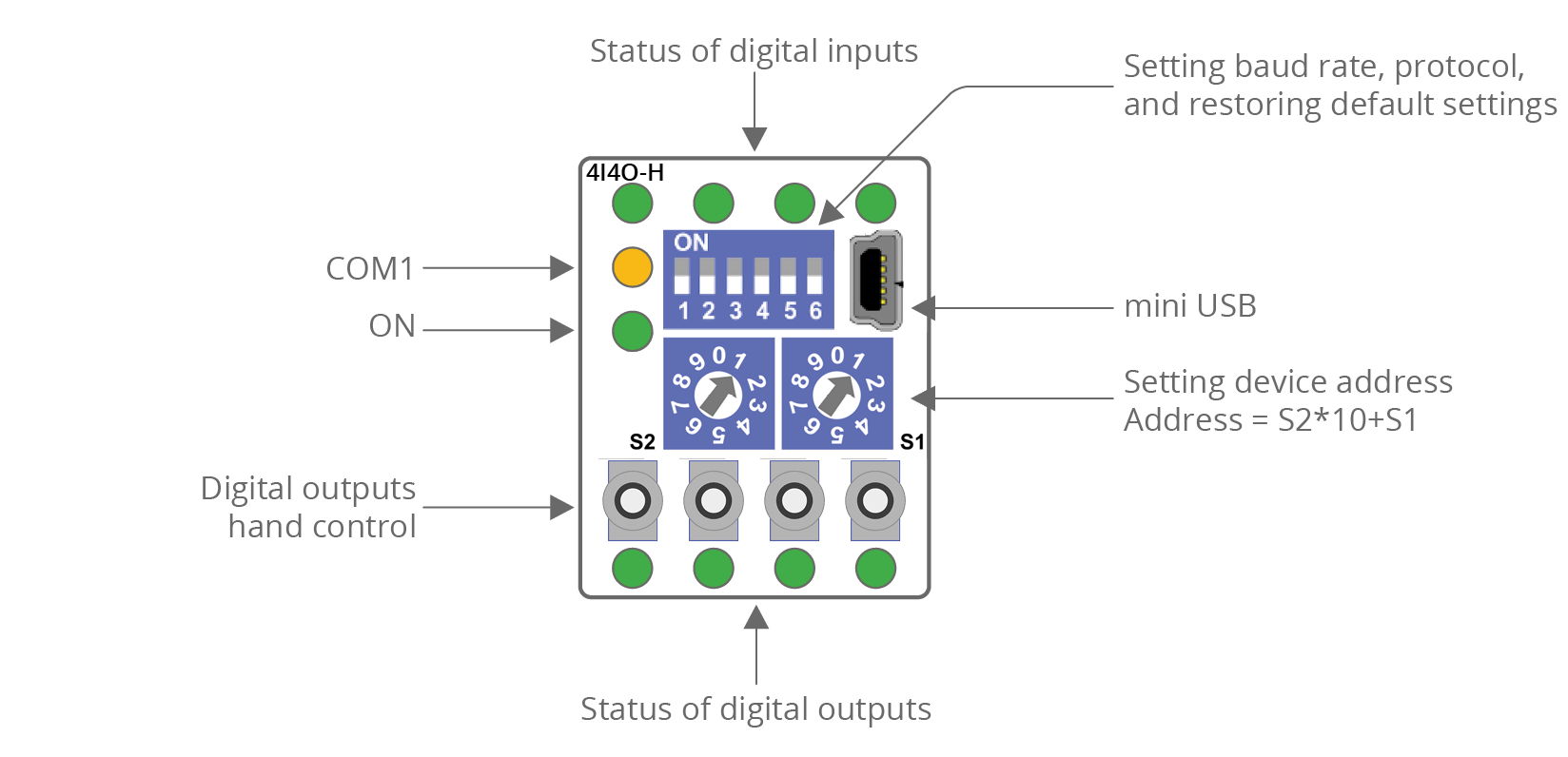

The 4I4O-H top panel




The 4I4O-H-IP top panel


MINI 4U4O-H and 4U4O-H-IP Top Panels

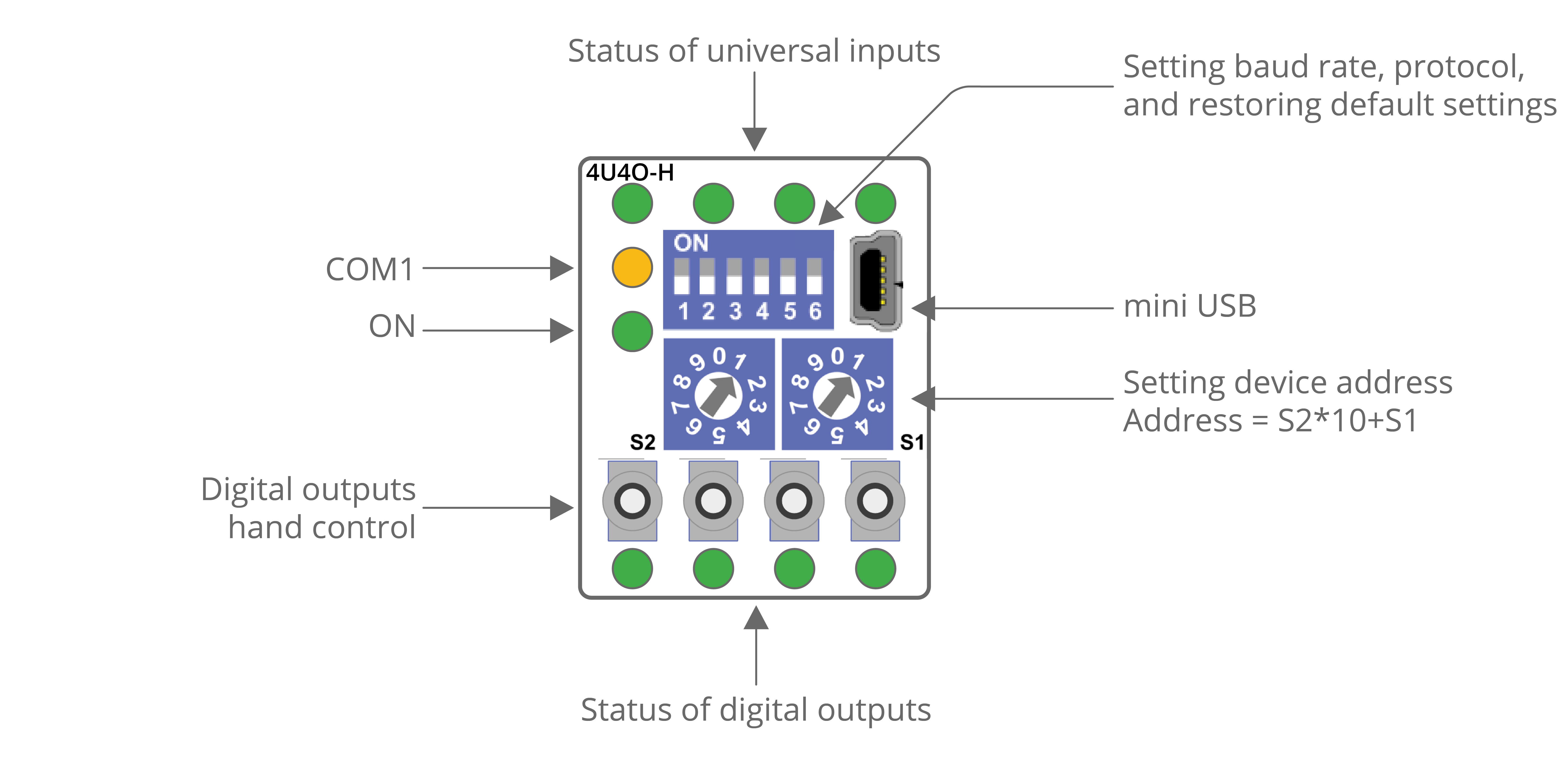

The 4U4O-H top panel




The 4U4O-H-IP top panel


MINI 4U4A-H and 4U4A-H-IP Top Panels

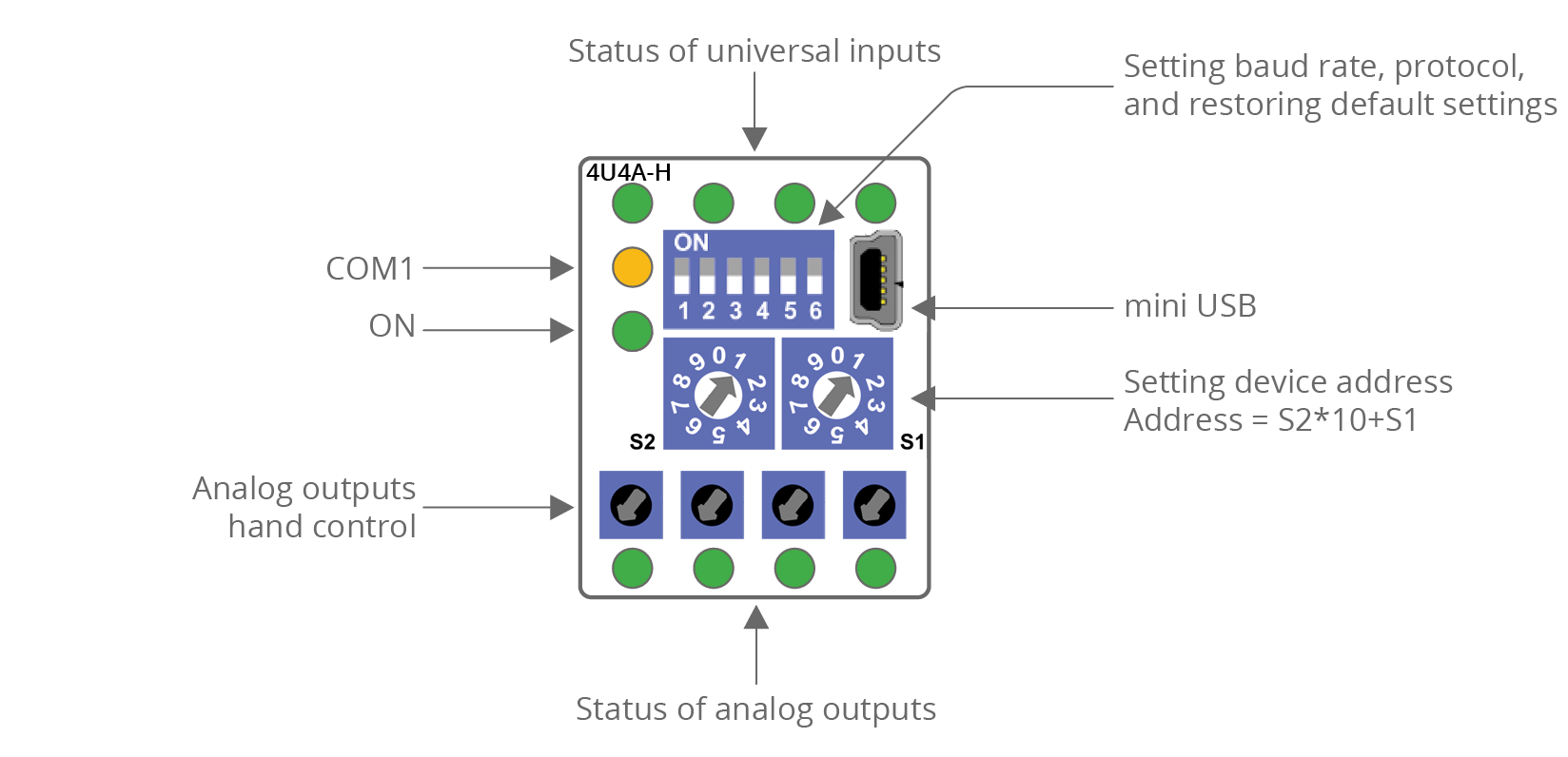

The 4U4A-H top panel

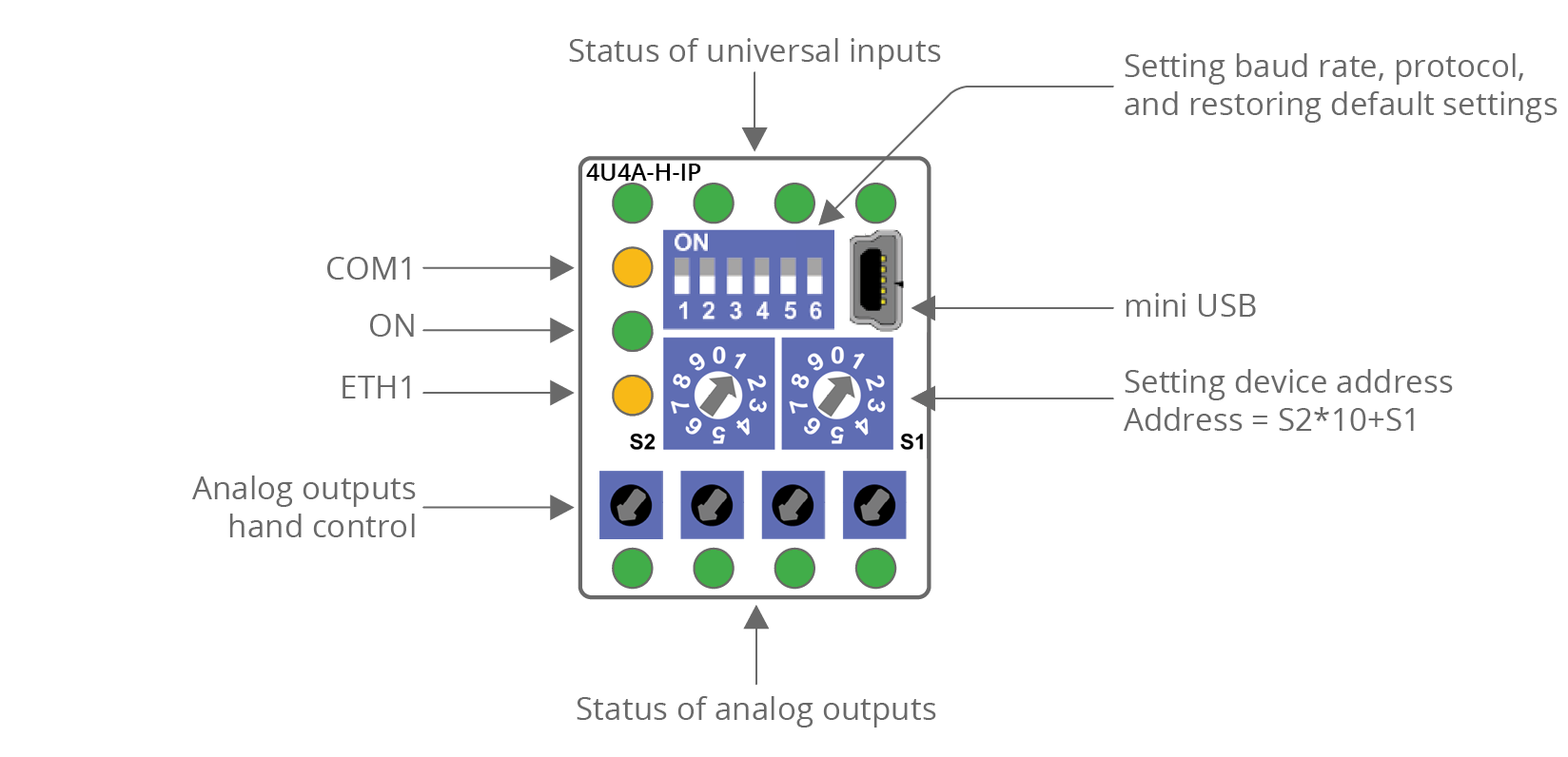

The 4U4A-H-IP top panel


MINI 4O-H and 4O-H-IP Top Panels

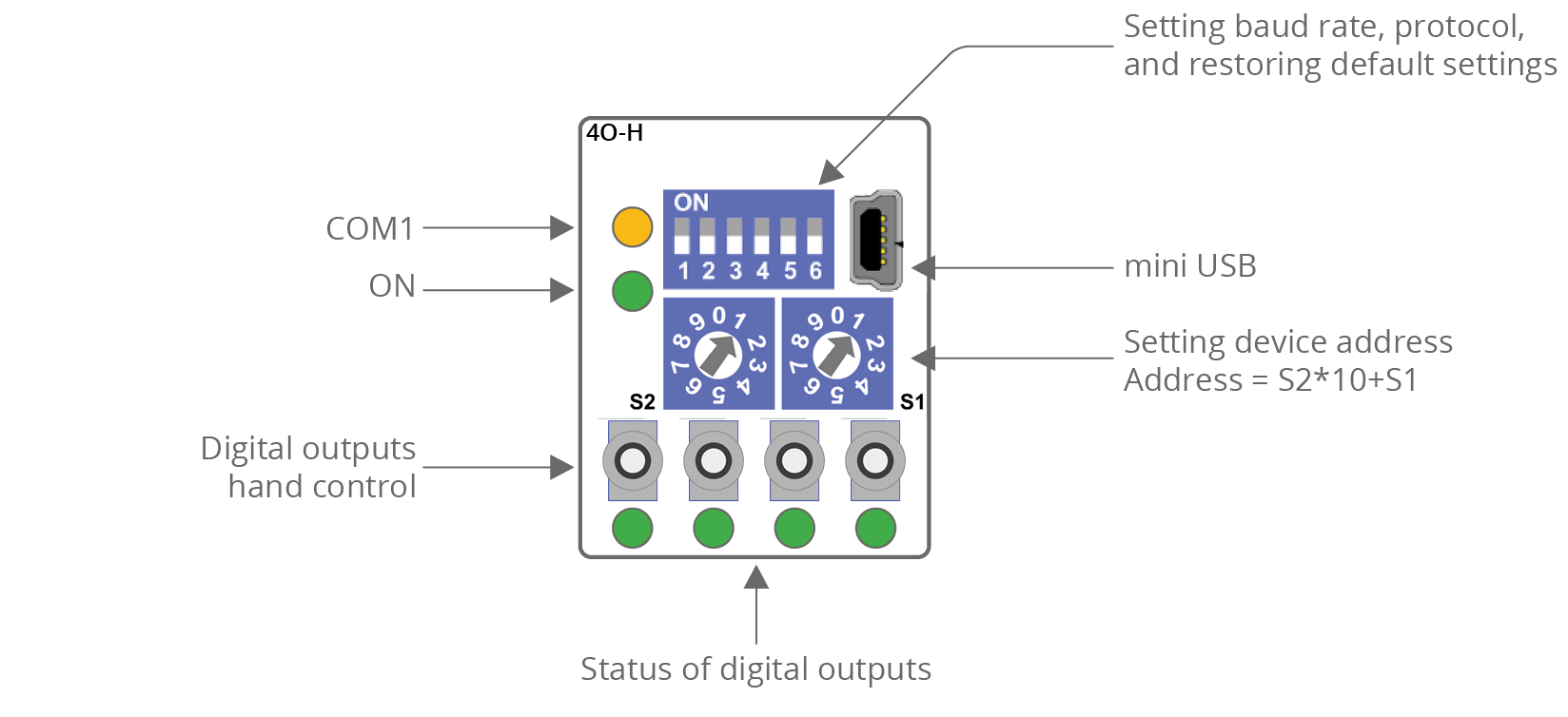

The 4O-H top panel




The 4O-H-IP top panel


MINI 4TO-H and 4TO-H-IP Top Panels



The 4TO-H top panel

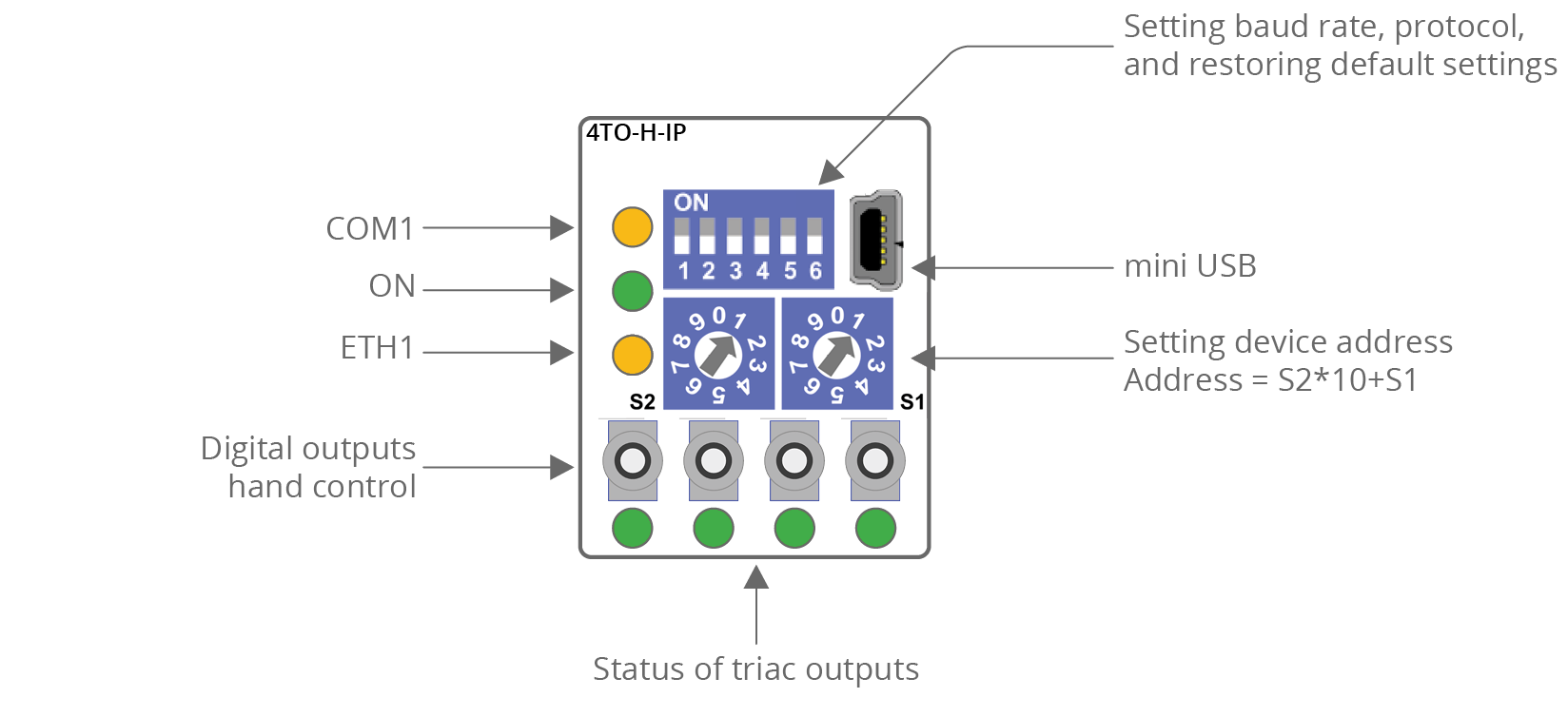

The 4TO-H-IP top panel


  • The power LED (ON) is on (green) if the module runs properly.

  • The communication LED (COM1) is on (orange) for 20 ms after sending each message. If the module receives/sends a lot of messages, the LED can be lit continuously.

  • LEDs indicating the status of the universal inputs (U1-Un) are lit when the resistance connected to the input is less than 5 kΩ (dry contact input is active).

WARNING!

The LED also lights up when the voltage connected to the input has a very low potential.

  • LEDs indicating the status of the digital inputs (I1-In) are lit when the input is active.

  • LEDs indicating the status of the analog outputs (A1-An) are lit when the output voltage or PWM duty cycle is greater than 0.

  • LEDs indicating the status of the digital outputs (O1-On) are lit when the output is enabled.
