The Point Manager view is available for devices (control gear and inputs devices) added to the DALI-2 network. It lists all DALI points added to the ControlGear or InputDevice component, and shows their Out slot value, status, polling mode, and enabled or disabled state.
Note: For InputDevice components, the view also shows the instance number column.
Opening the Point Manager

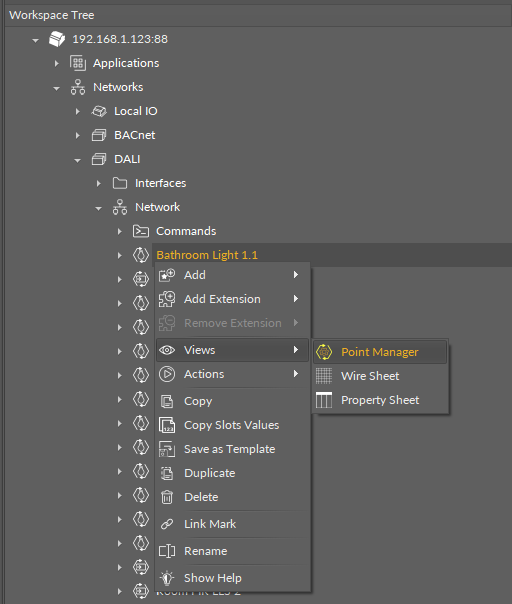

The Point Manager view is accessible from the context menu of the ControlGear/InputDevice component. It is also automatically opened if the component is double-clicked in the Workspace Tree window.
Adding DALI Points

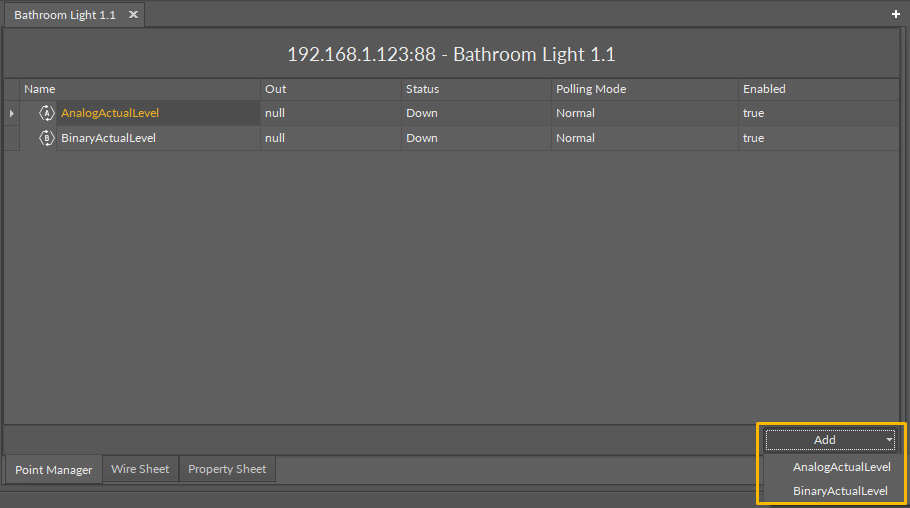

The DALI points may be added to the device twofold: dragging and dropping the point to the ControlGear/InputDevice component from the DALI library (in the Device Libraries window), or using a special Add function in the Point Manager view available in the bottom right corner. The Add function allows to add any of the DALI points available in the DALI library, but sorted by applicability to either control gear or input device type.

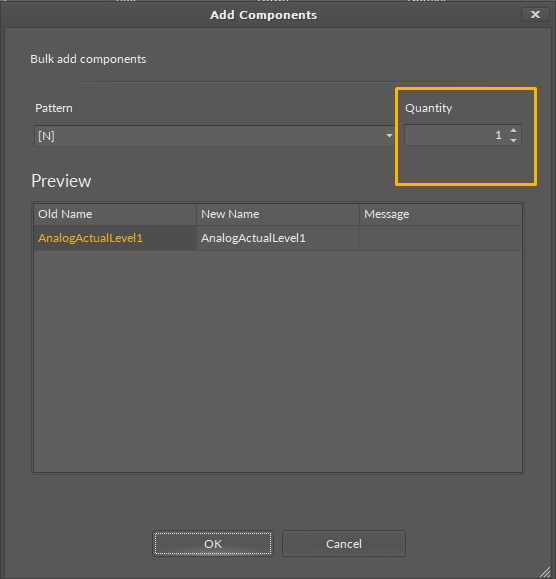

Using this Add button opens the dialog window, which allows to adjust the quantity of DALI points to be added.
Multiediting of Common Slots
The Point Manager view allows multiediting of common slots in components of the same type, for example, to enable all one-type components at once. Multiediting is available in the Object Properties window, upon selecting one-type components in the Point Manager with Ctrl or Shift keys.
