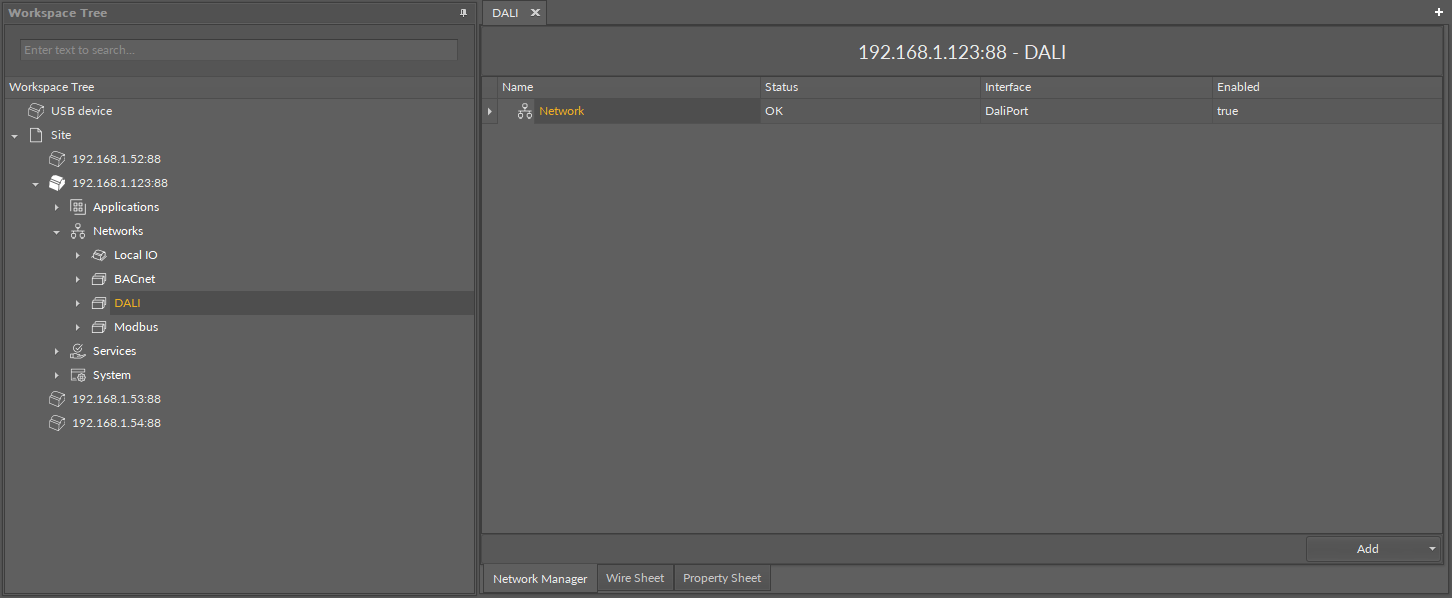

The Network Manager view is available for the DALI component. It lists all DALI networks configured on the device's ports. The Network Manager view shows the statuses, ports (which the network is configured on), and enabled or disabled states of the network.
Opening Network Manager

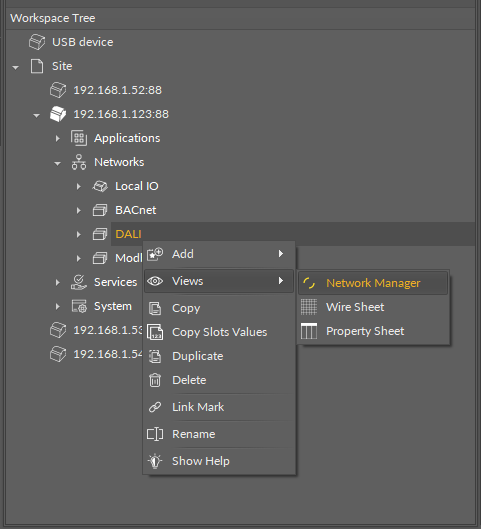

The Network Manager view is accessible from the context menu of the DALI component. It is also automatically opened if the DALI component is double-clicked in the Workspace Tree window.
Adding DALI Networks
The networks may be added to the Network Manager twofold: dragging and dropping the Network component to the DALI component from the Core library (in the Device Libraries window), or using a special Add function in the Network Manager view available in the bottom right corner.

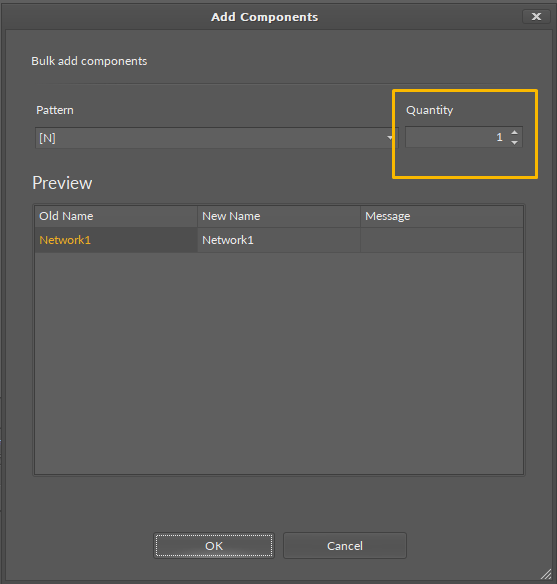

Using this Add button opens the dialog window, which allows to adjust the quantity of networks to be added.
Multiediting of Common Slots
The Network Manager view allows multiediting of common slots in components of the same type, for example, to enable all one-type components at once. Multiediting is available in the Object Properties window, upon selecting one-type components in the Network Manager with Ctrl or Shift keys.
