Hadware Specification


Dimensions

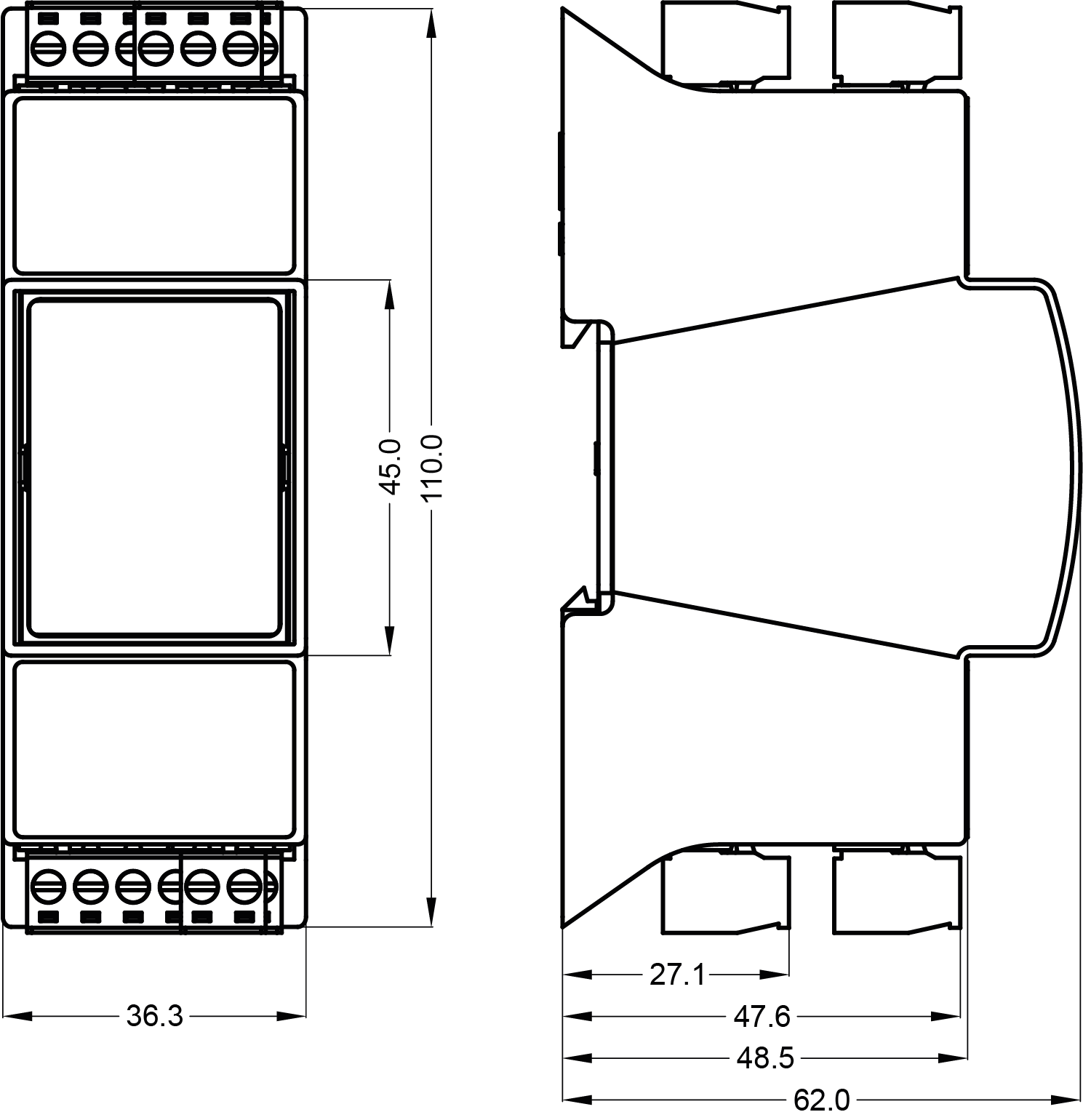

MINI Series (Without Hand Switches)

Error rendering macro 'scroll-title' : Page loading failed

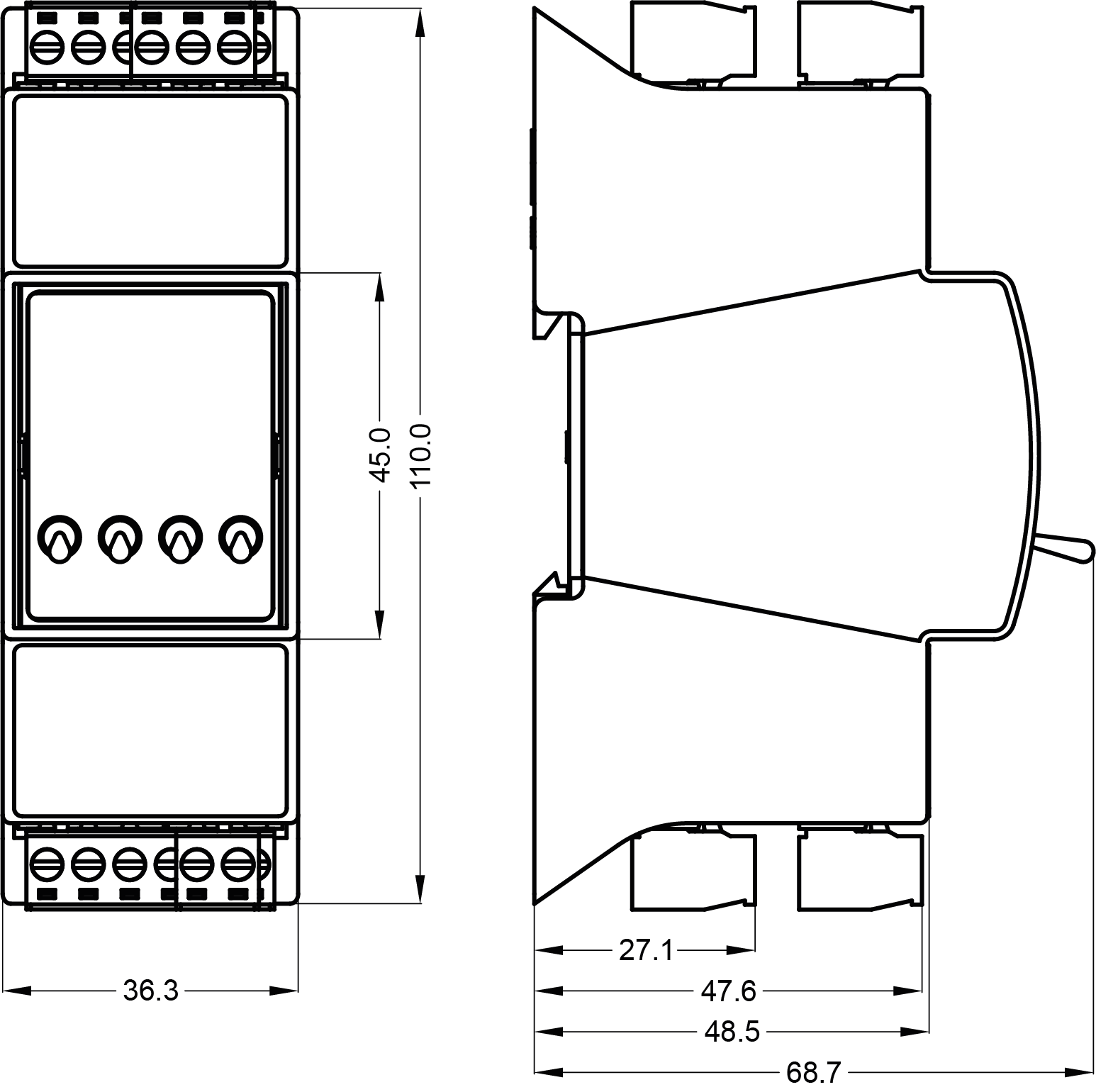

MINI Series (With Hand Switches)

Error rendering macro 'scroll-title' : Page loading failed

Error rendering macro 'scroll-pagebreak' : Page loading failed

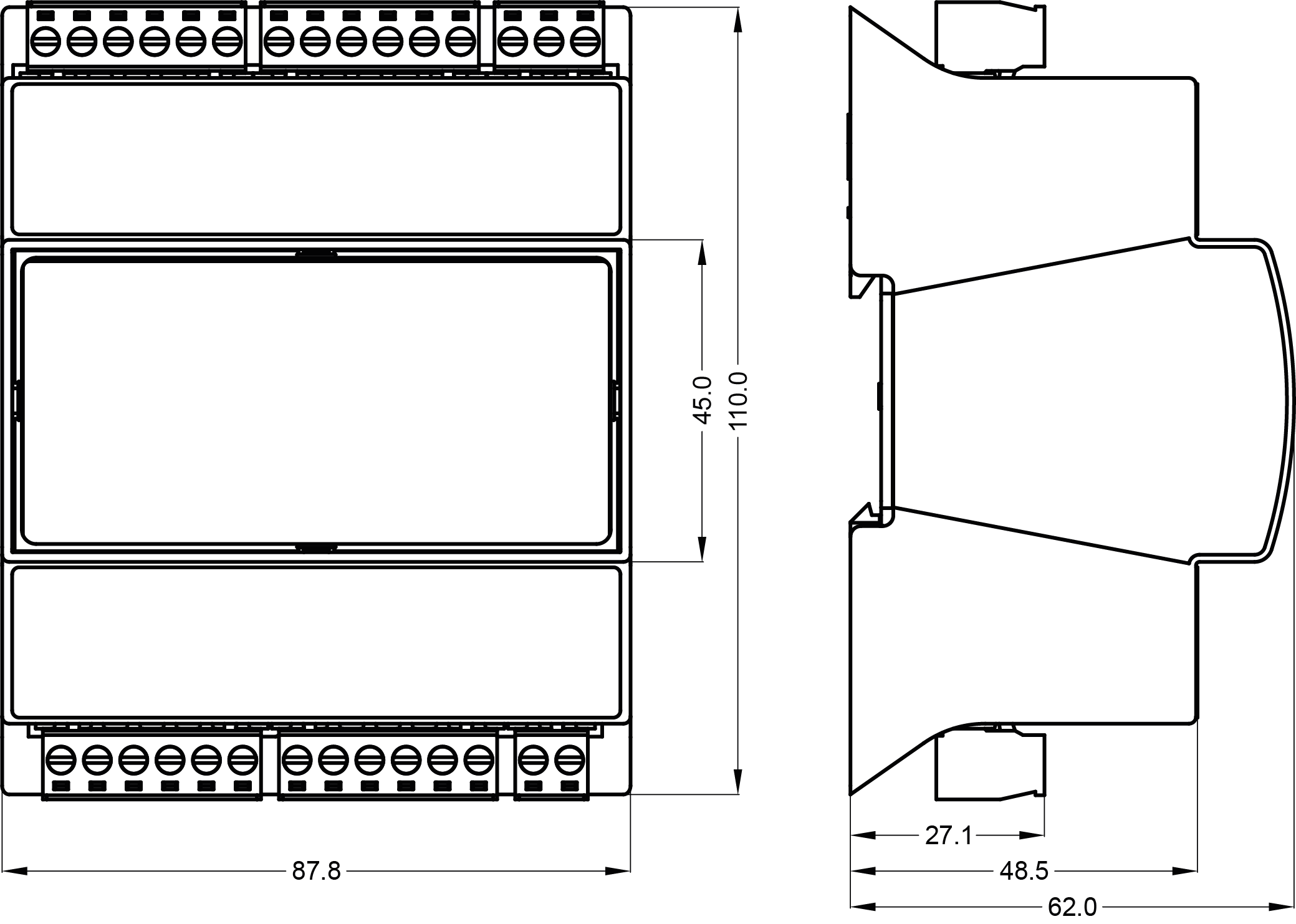

MIX18 Series

Error rendering macro 'scroll-title' : Page loading failed

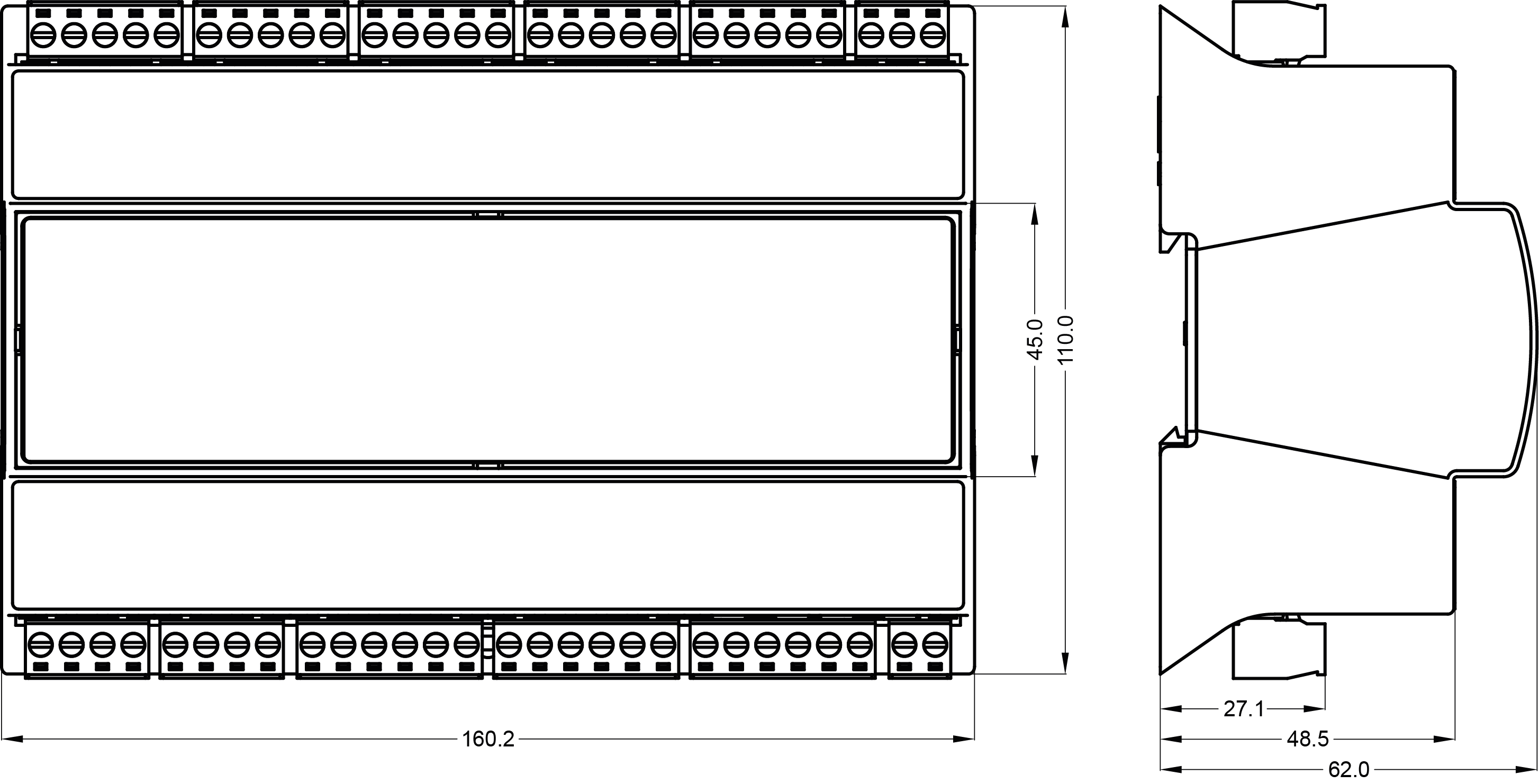

MIX38 Series

Error rendering macro 'scroll-title' : Page loading failed

Error rendering macro 'scroll-pagebreak' : Page loading failed

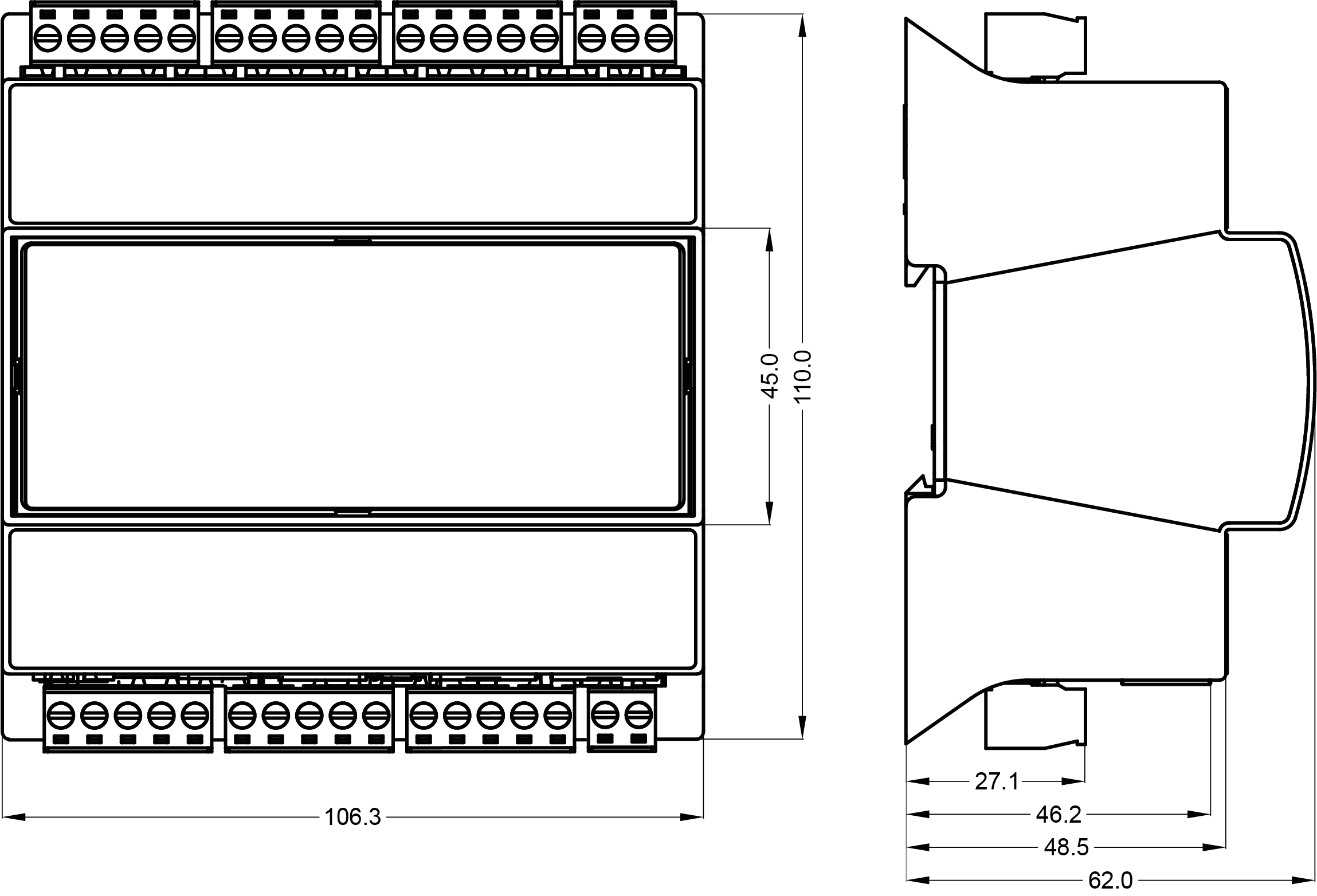

MAX Series (Without Hand Switches)

Error rendering macro 'scroll-title' : Page loading failed

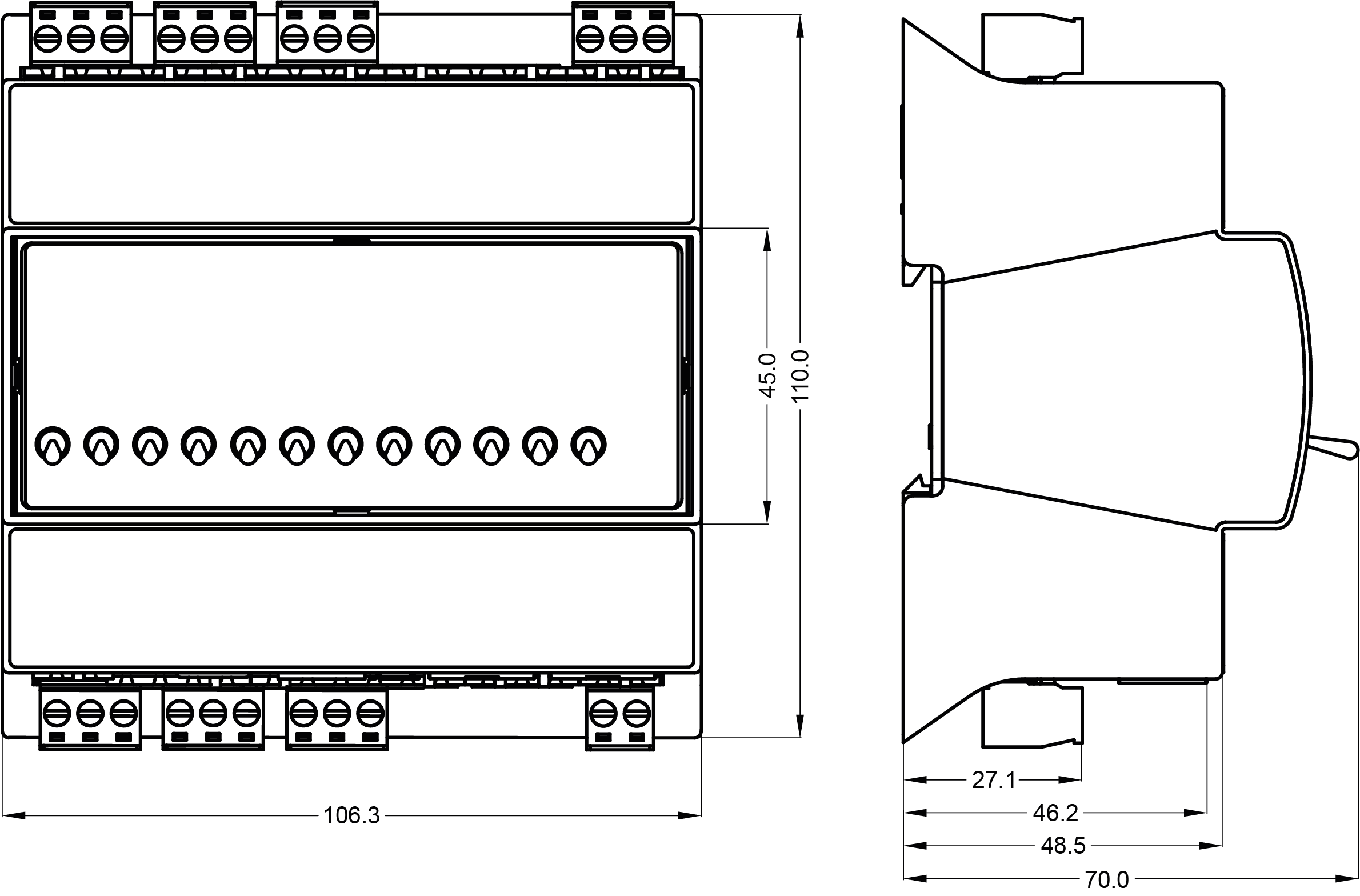

MAX Series (With Hand Switches)

Error rendering macro 'scroll-title' : Page loading failed

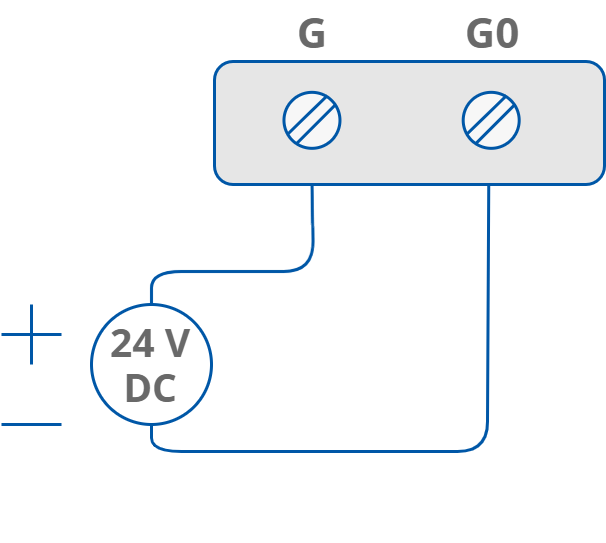

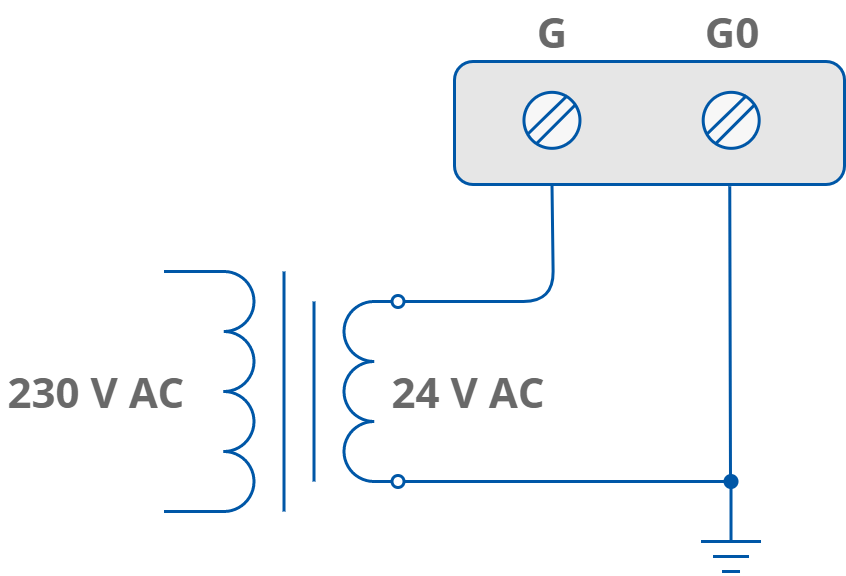

Power Supply Connection

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

LED Indicators

MIX Series Front Panels

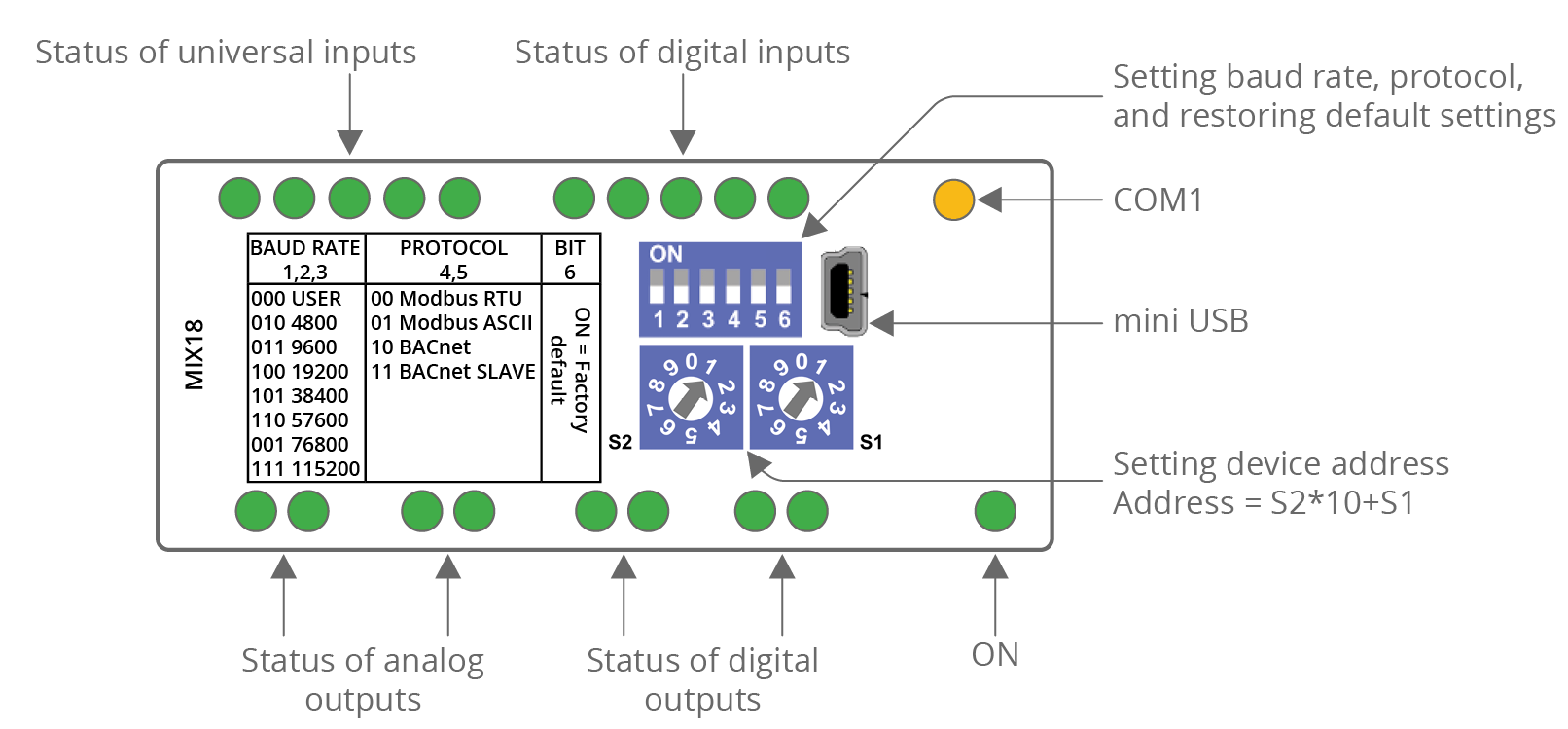

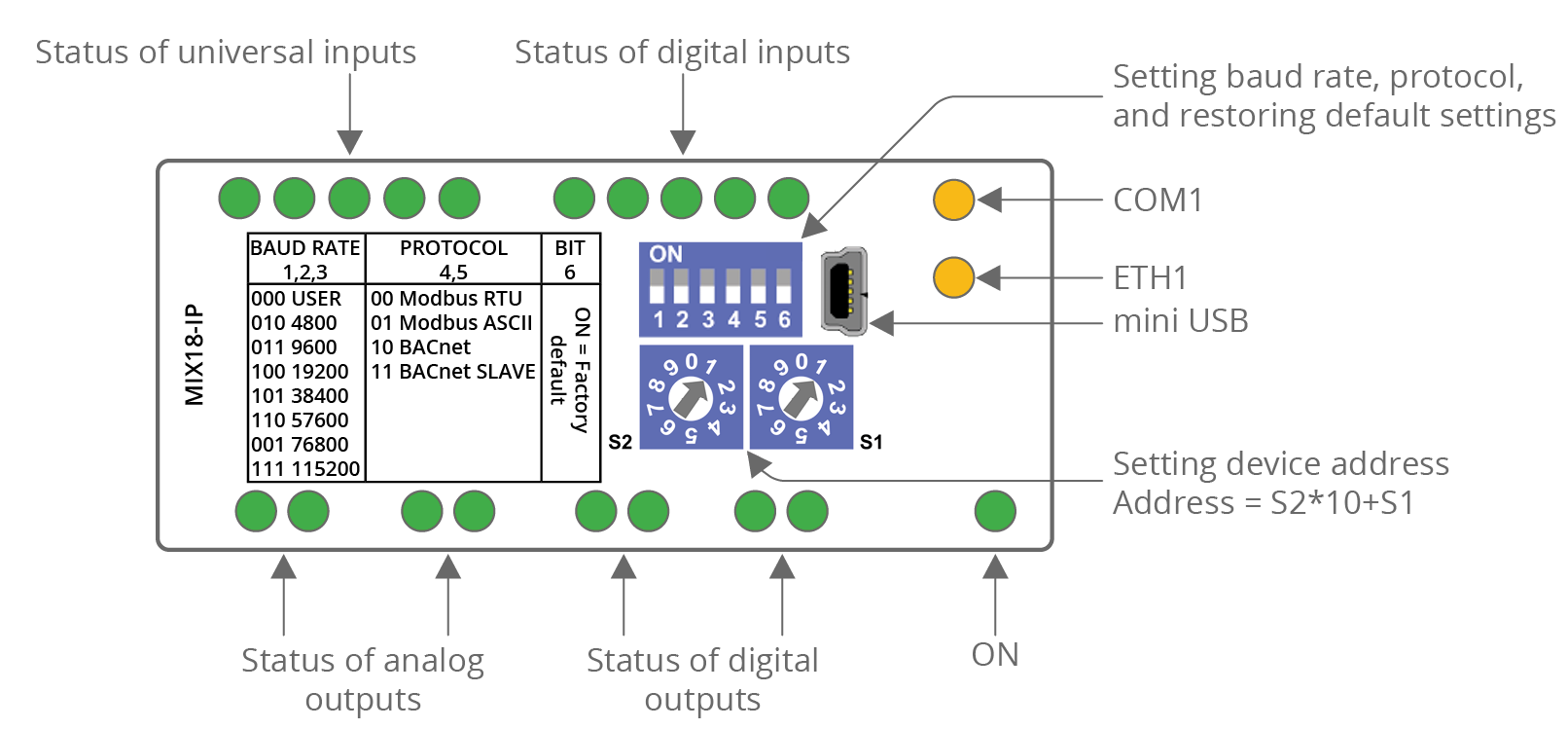

MIX18

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

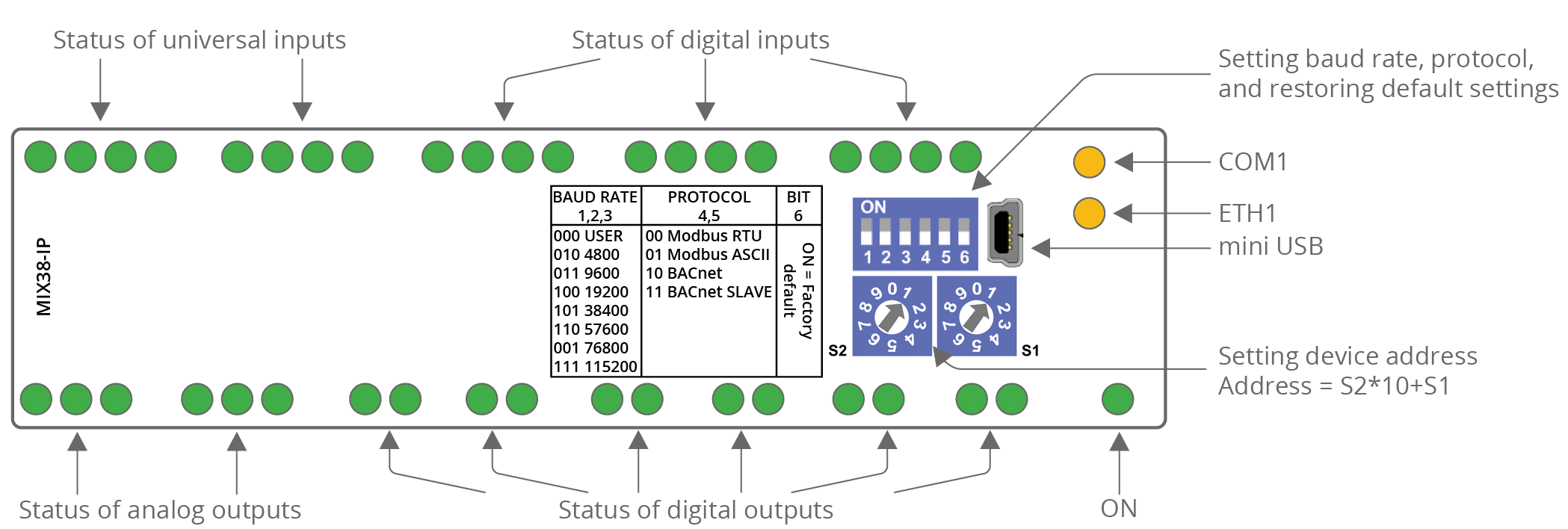

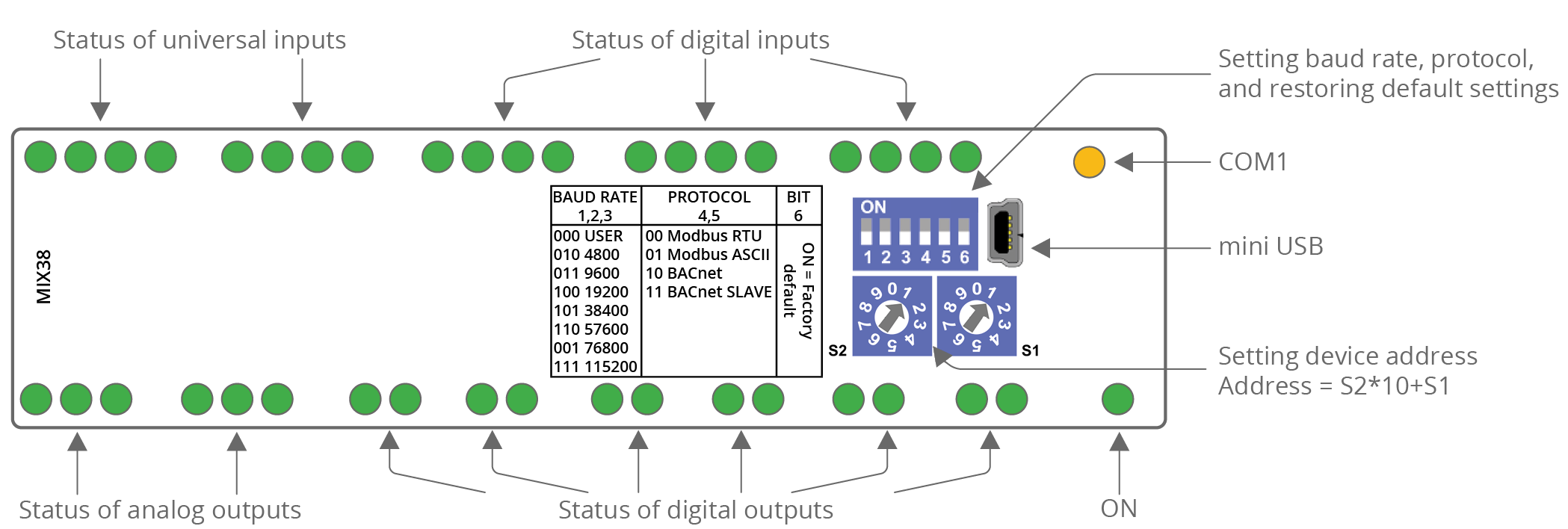

MIX38

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

MINI Series Front Panels

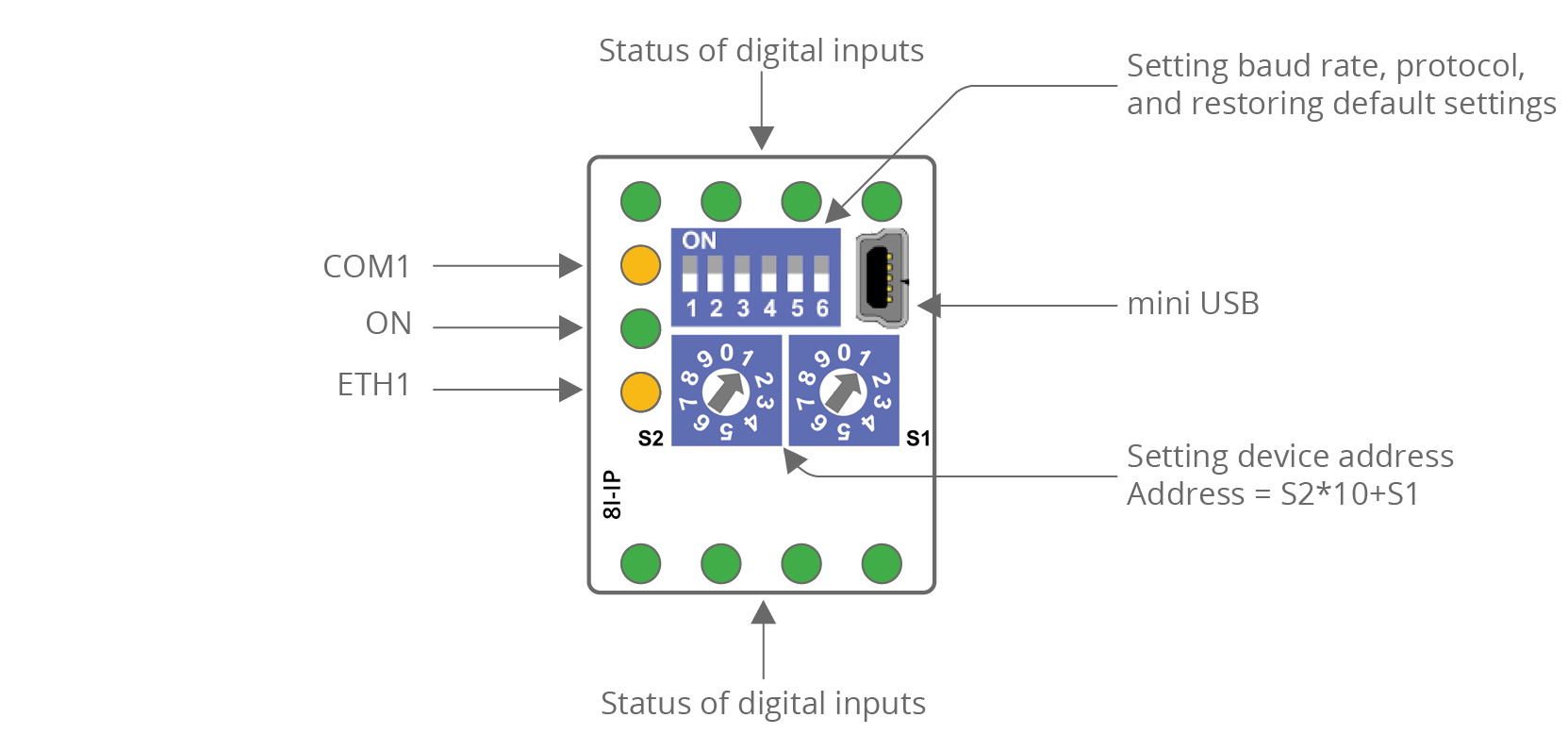

MINI 8I and 8I-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

Error rendering macro 'scroll-pagebreak' : Page loading failed

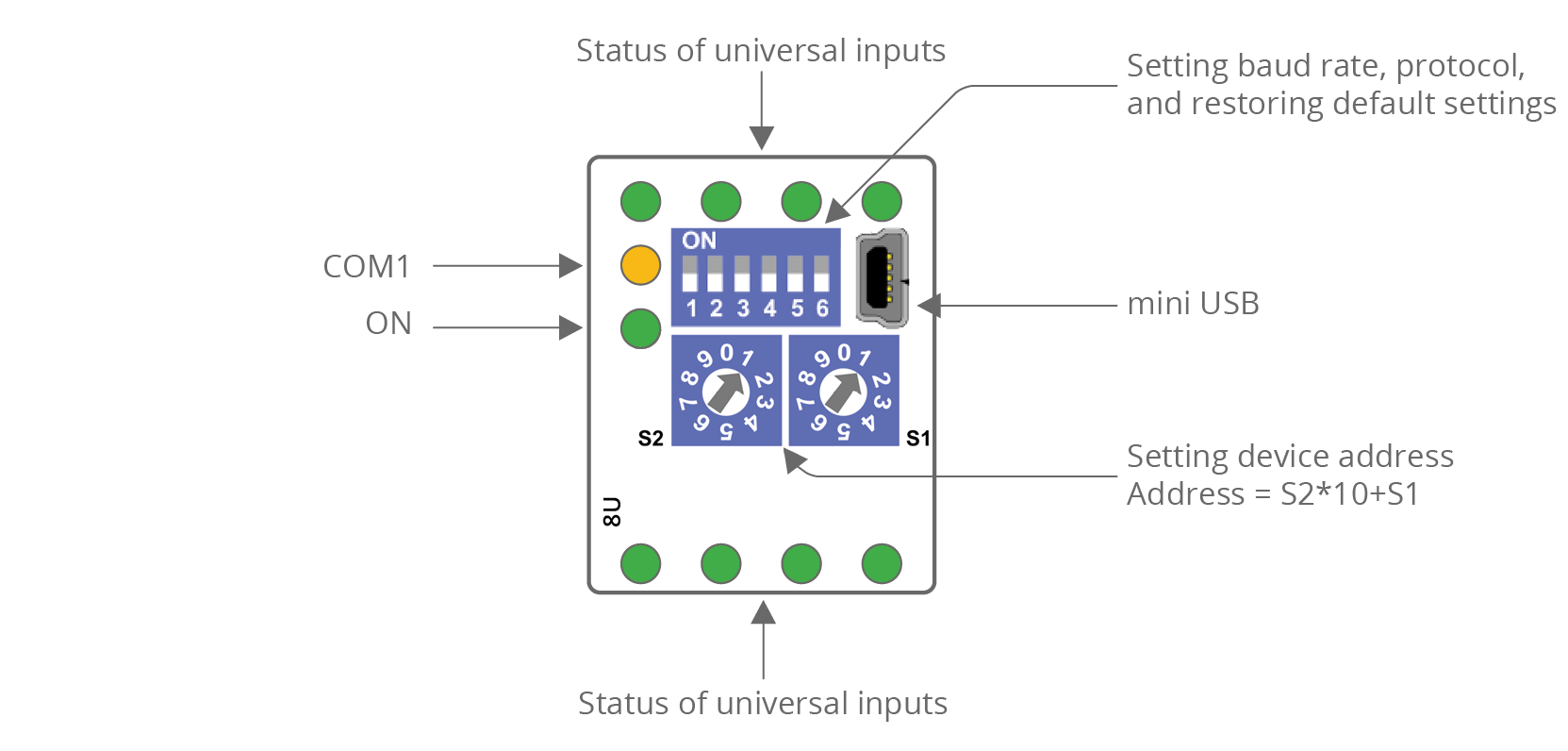

MINI 8U and 8U-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

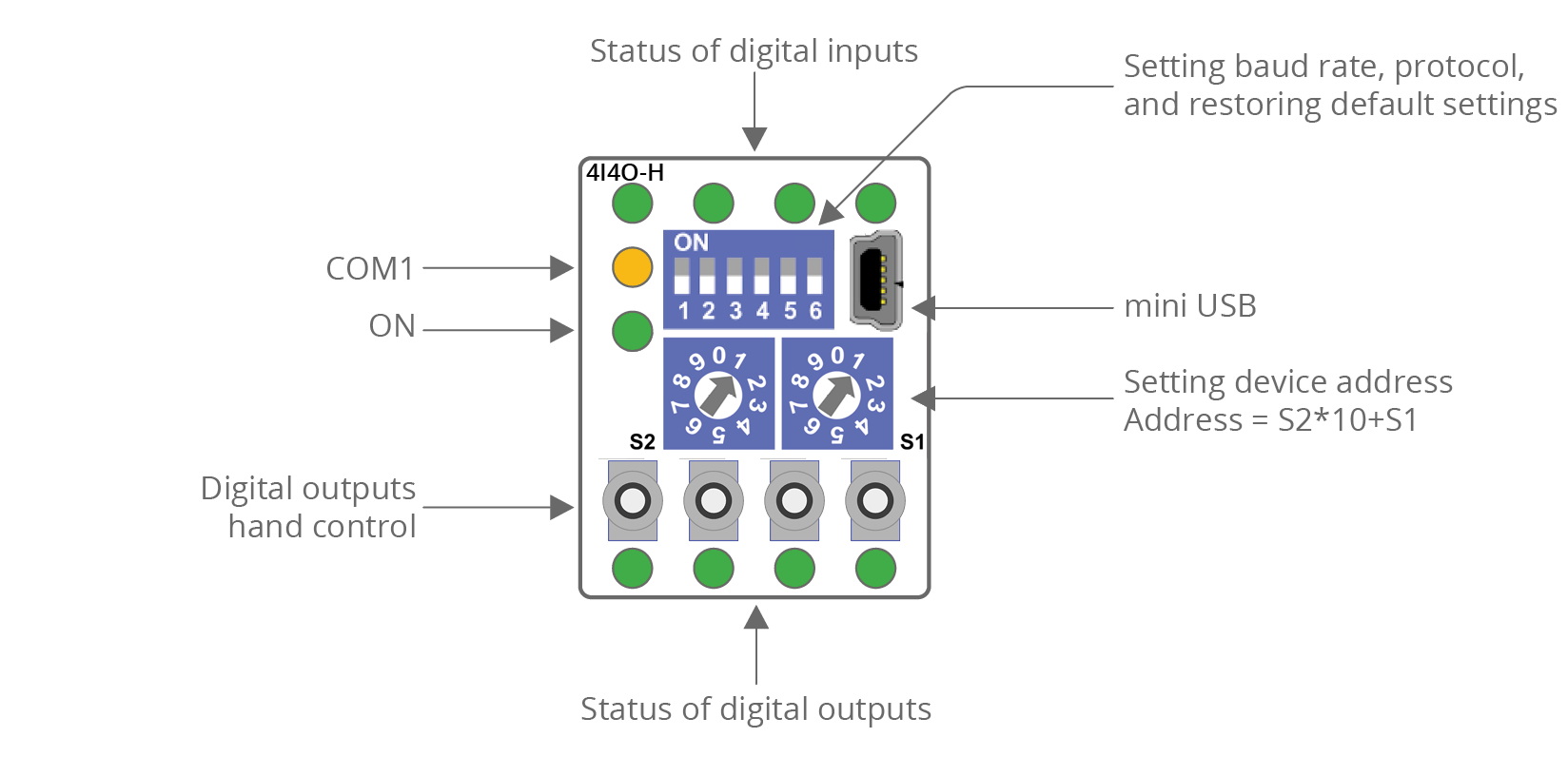

MINI 4I4O-H and 4I4O-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

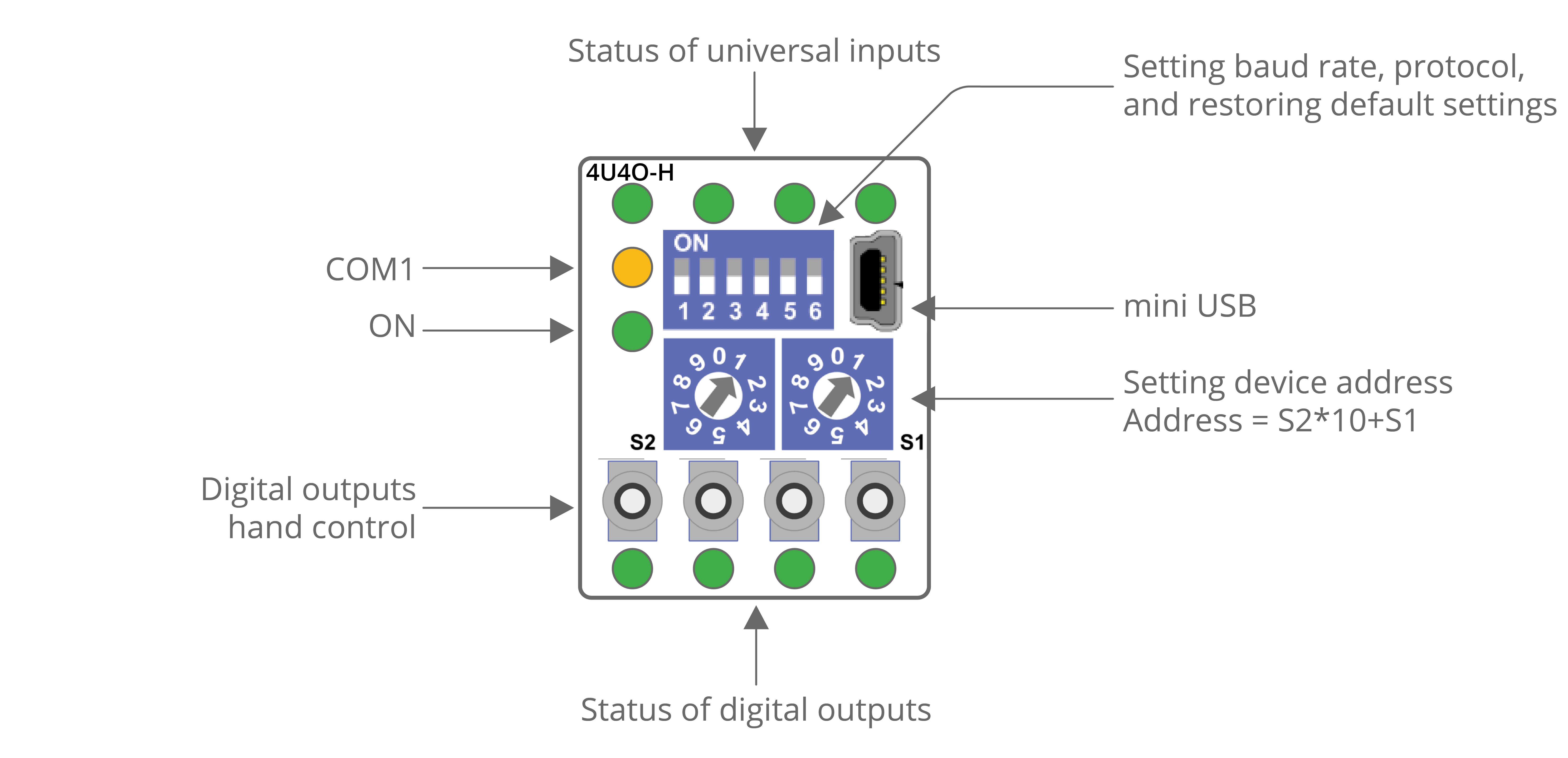

MINI 4U4O-H and 4U4O-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

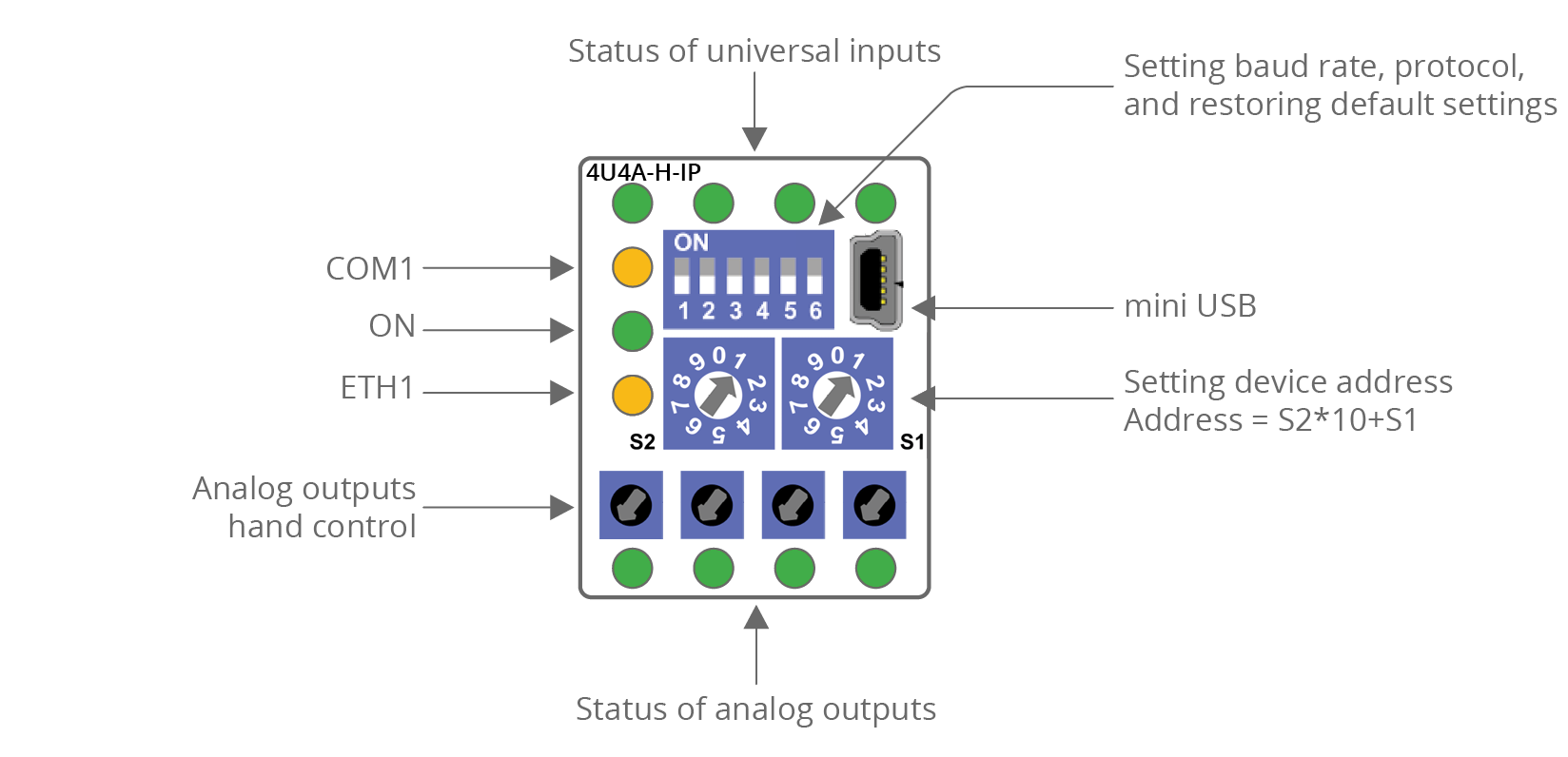

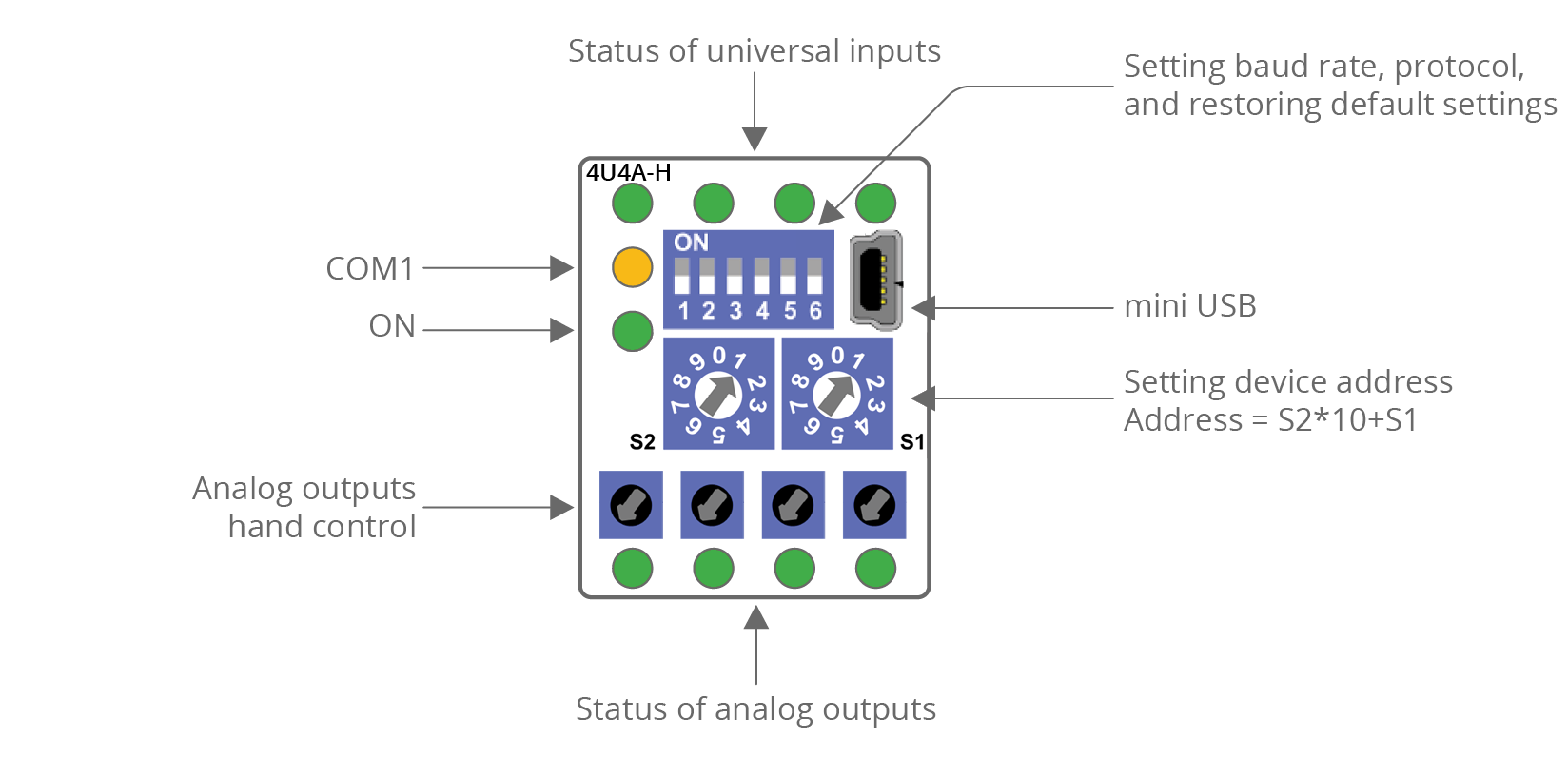

MINI 4U4A-H and 4U4A-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

Error rendering macro 'scroll-pagebreak' : Page loading failed

MINI 4O-H and 4O-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

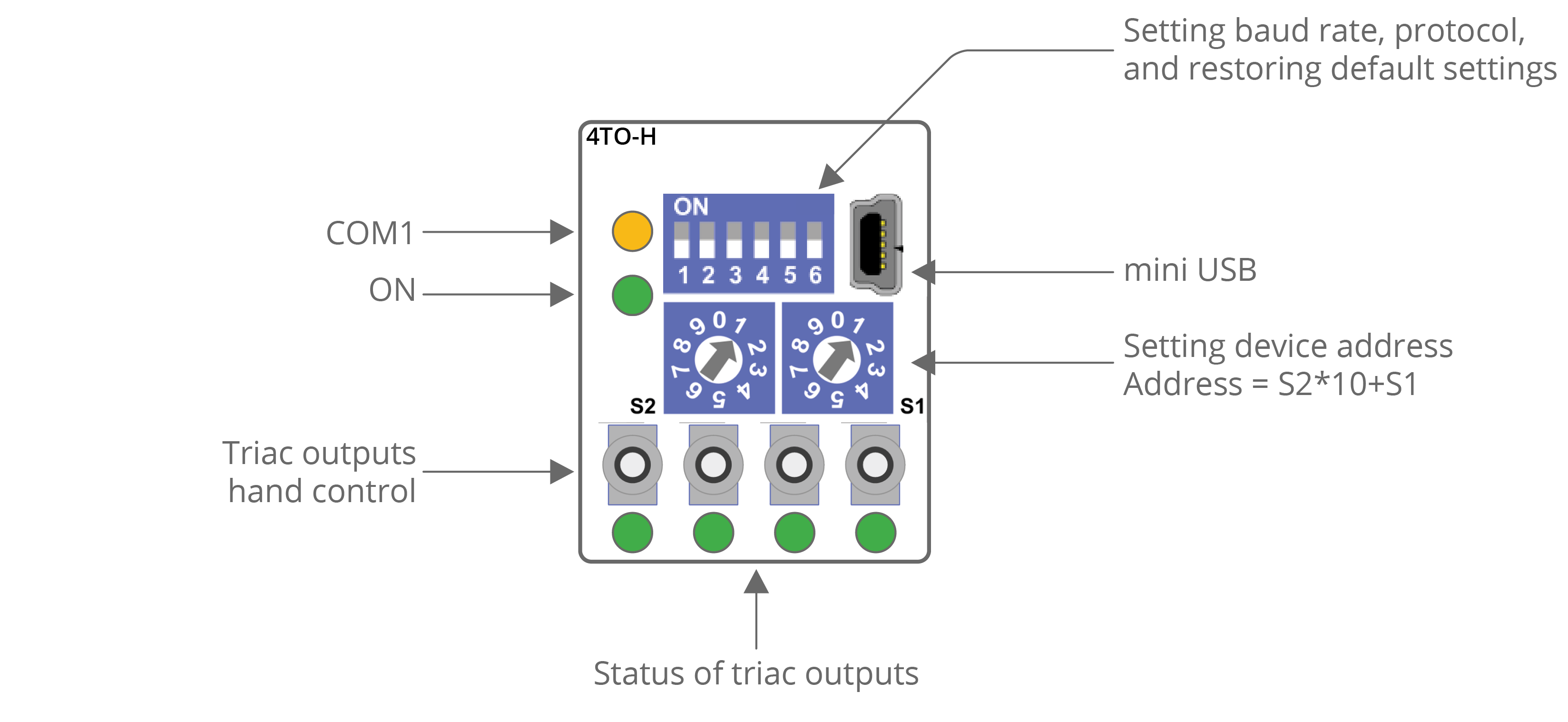

MINI 4TO-H and 4TO-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

MAX Series Front Panels

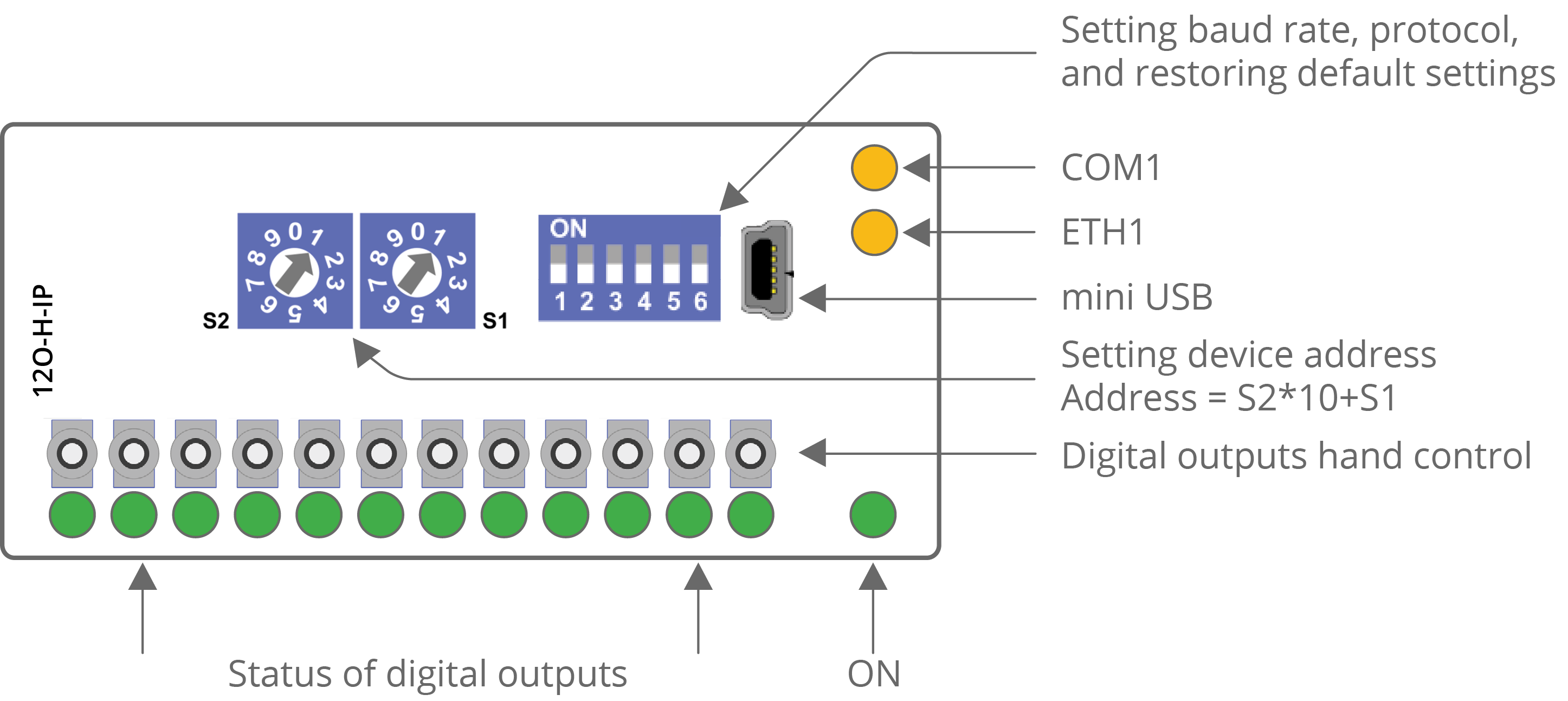

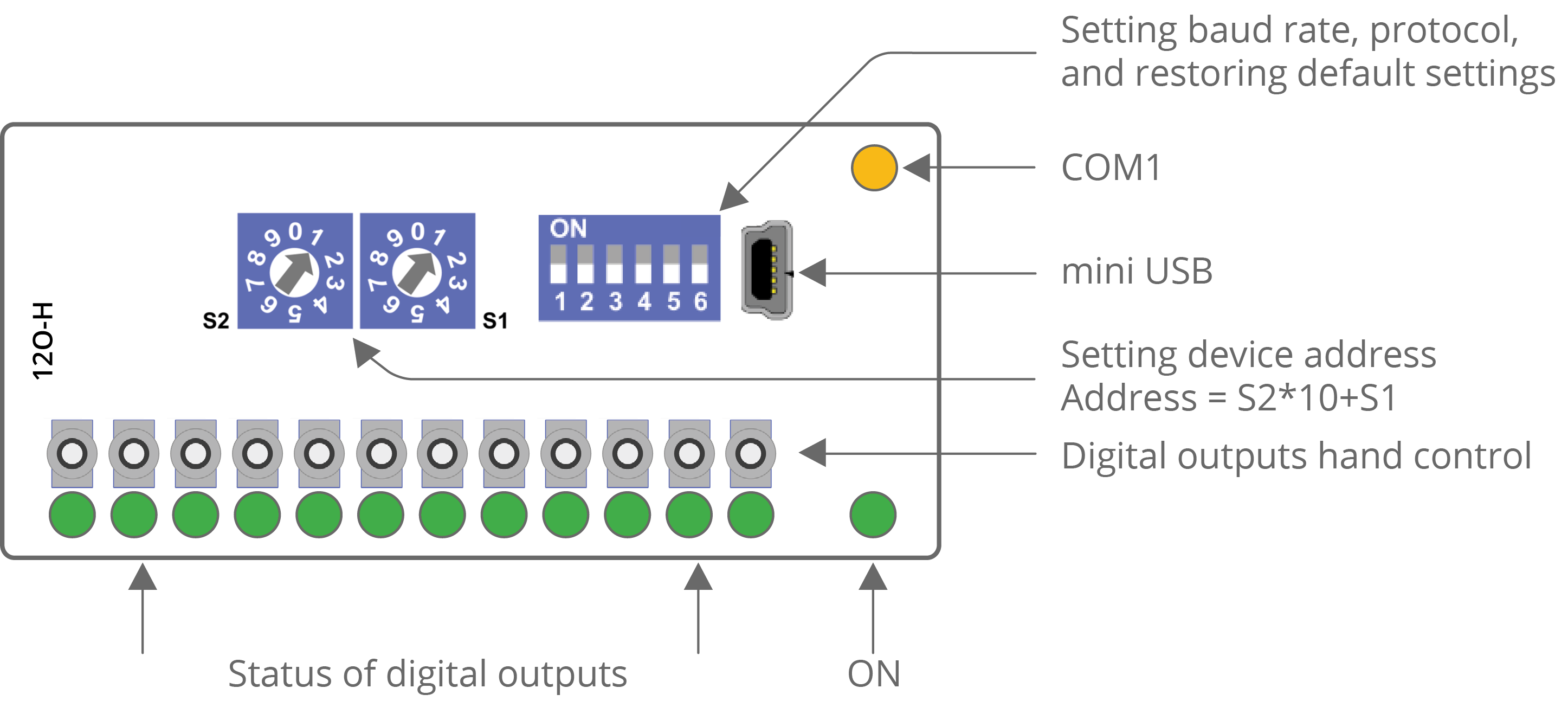

MAX 12O-H and 12O-H-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed

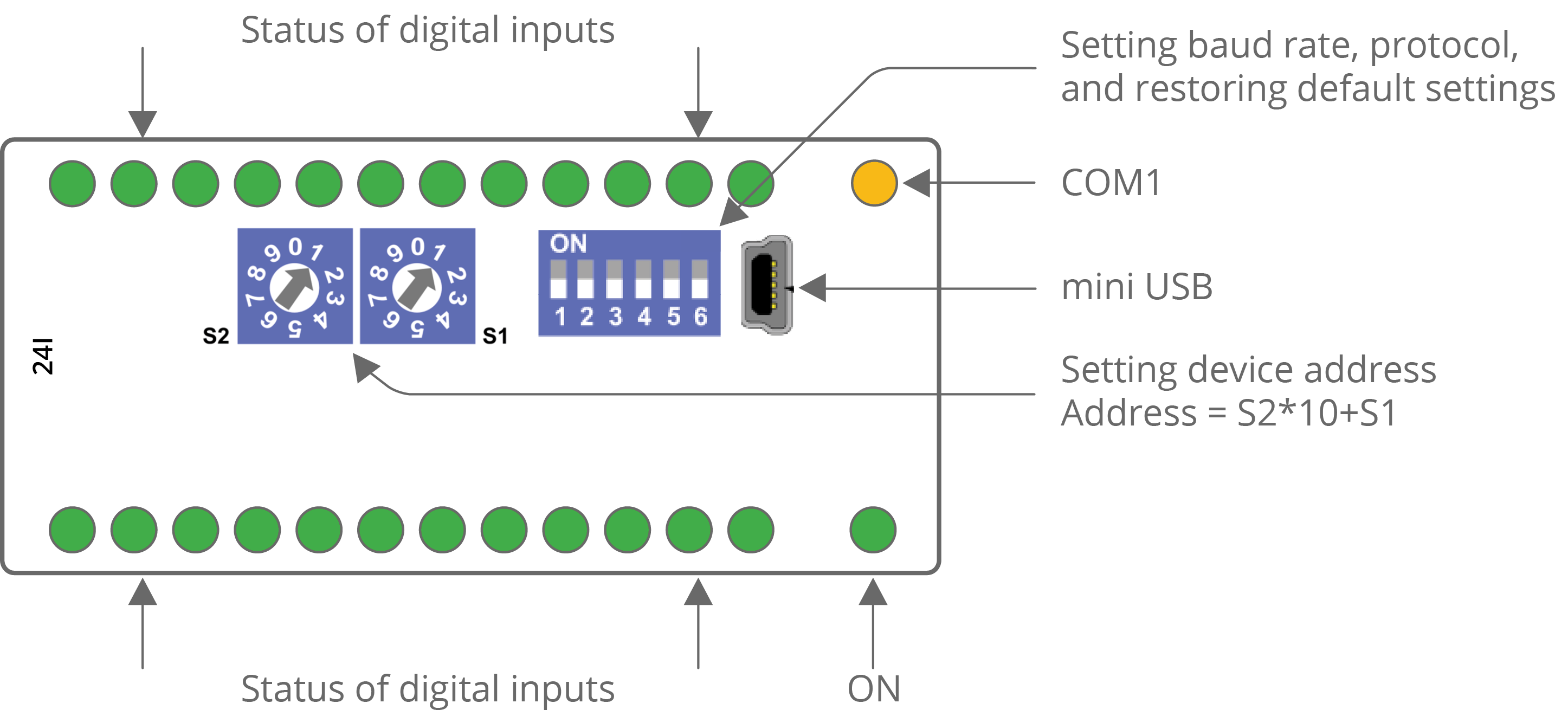

MAX 24I and 24I-IP

Error rendering macro 'scroll-tablelayout' : Page loading failed

Error rendering macro 'scroll-title' : Page loading failed
Error rendering macro 'scroll-title' : Page loading failed
  • The power LED (ON) is on (green) if the module runs properly.
  • The communication LED (COM1) is on (orange) for 20 ms after sending each message. If the module receives/sends a lot of messages, the LED can be lit continuously.
  • The communication LED (ETH1) lights up (orange) in the transmit or receive state when sending/receiving each package through the Ethernet port. As long as the device sends/receives packages, the communication LED blinks continuously.
  • LEDs indicating the status of the universal inputs (U1-Un) are lit when the resistance connected to the input is less than 5 kΩ (dry contact input is active).
WARNING!

The LED also lights up when the voltage connected to the input has a very low potential.

  • LEDs indicating the status of the digital inputs (I1-In) are lit when the input is active.
  • LEDs indicating the status of the analog outputs (A1-An) are lit when the output voltage or PWM duty cycle is greater than 0.
  • LEDs indicating the status of the digital outputs (O1-On) are lit when the output is enabled.
  • LEDs indicating the status of the triac outputs (TO1-TOn) are lit when the output is enabled or PWM duty cycle is greater then 0.
