iSMA Configurator
Note
Please note that if the switch 1 on the S3 DIP switch is on, than configuration of the fan, reheater, and perimeter type from any other source is blocked (iSMA Configurator), as well as any changes made to the referring parameters (for example, Heater Priority) will not be written to the device.
In the iSMA Configurator, it is possible to configure parameters of the VAV14-IP controller in three areas:
VAV application;
flow settings;
balancing.
VAV Configurator
The configuration is carried out in a dedicated tool, VAV Configurator, available as a built-in tool in the iSMA Configurator:

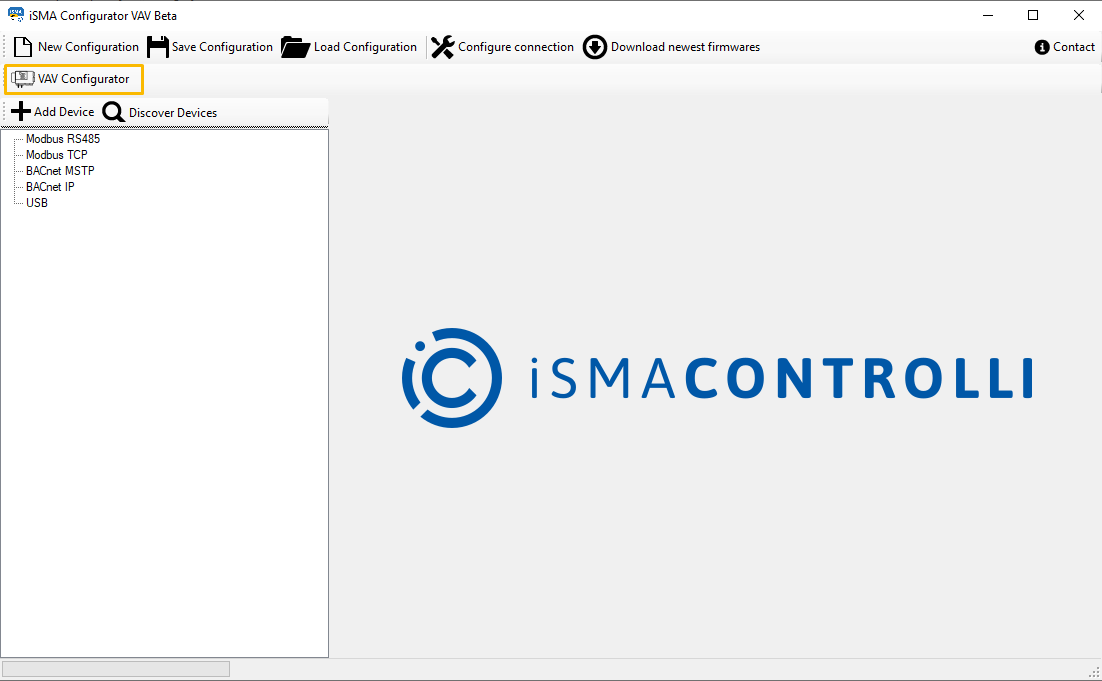

VAV Configurator button
Opening the VAV Configurator
The VAV Configurator is accessible under a dedicated button.
Before opening the VAV Configurator, it is required to start a BACnet IP transmission. Normally, a start-transmission prompt will be displayed automatically after pressing the VAV Configurator button:

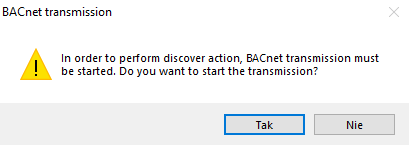

BACnet transmission prompt
Confirm the pop-up window and the BACnet IP transmission will be started automatically.
Note
In case there are any problems with an automatic start of the BACnet IP transmission, start it manually. Find out more here.
If BACnet IP communication is not started, the VAV Configurator button is not active.

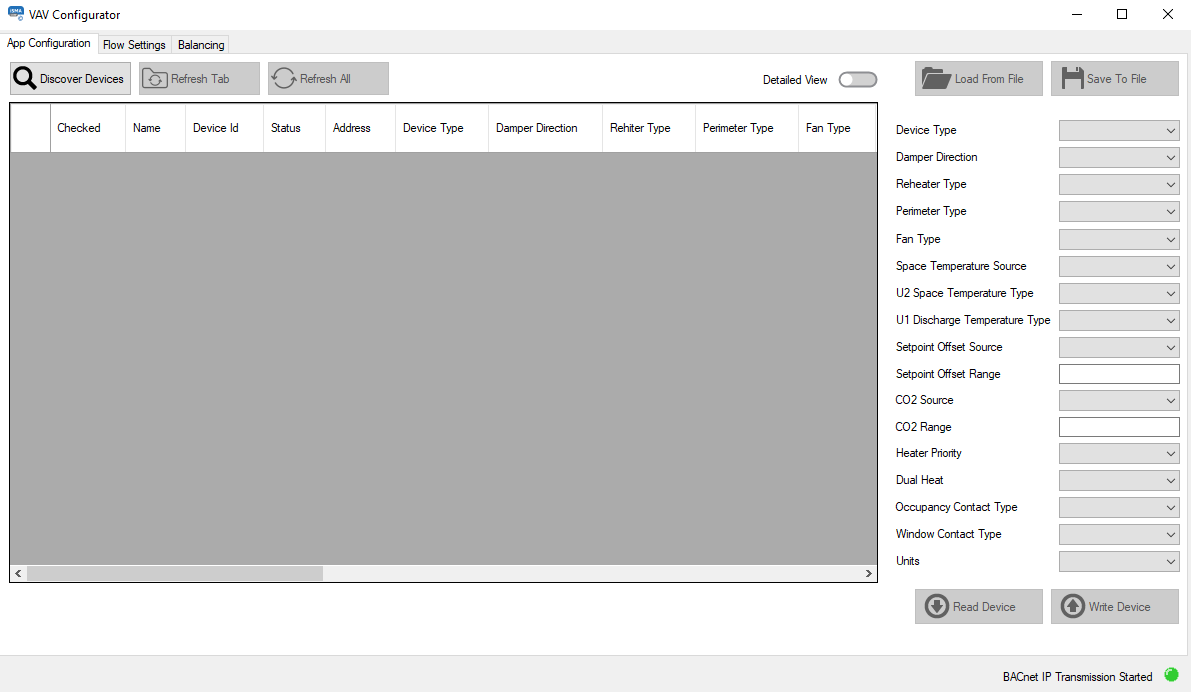

VAV Configurator started
Discovering Devices
The next required step is discovering devices. Use a dedicated button in the left top corner of the VAV Configurator window:

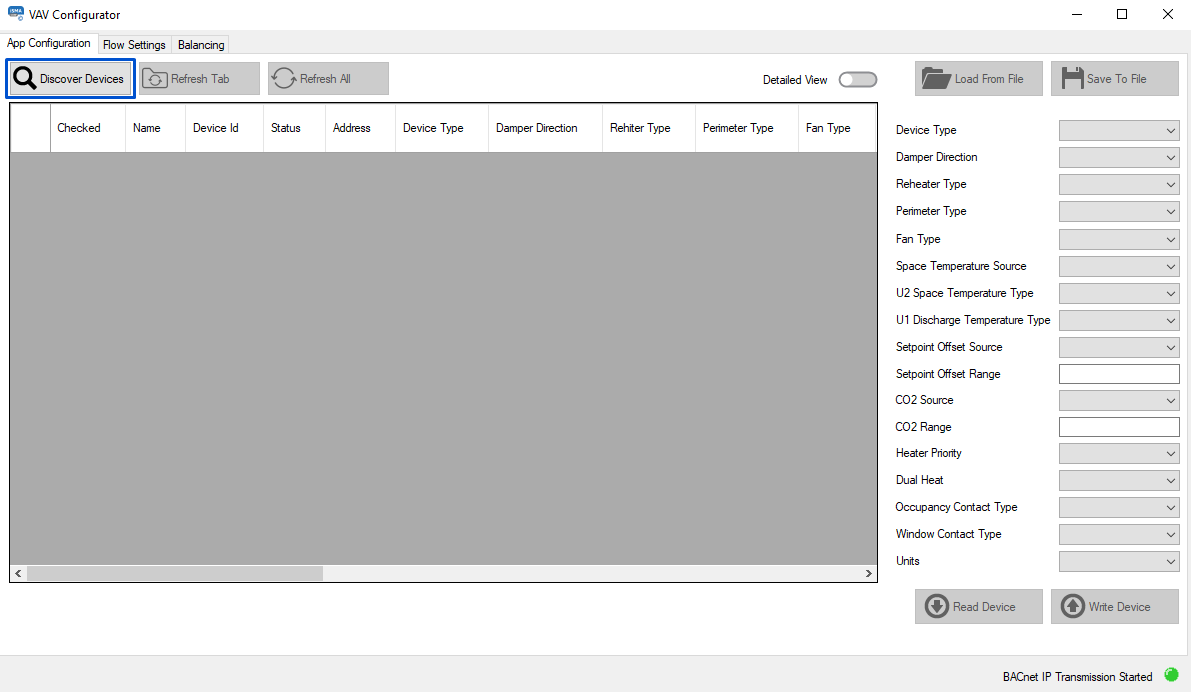

Discover Devices button
Warning!
For the discovering process to be successful, make sure that the subnet mask of the PC is compliant with the subnet mask of the device to be discovered. Network parameters of the controller can be checked and/or changed in the Ethernet component (System container).

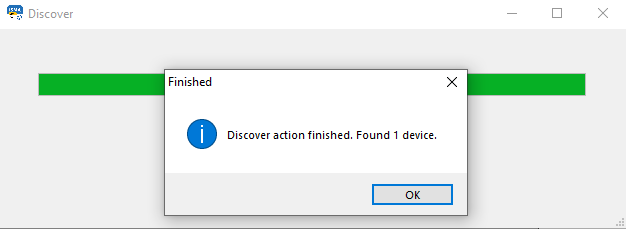

Finished discovering process
The VAV Configurator has two tabs where different of the application and airflow parameters can be adjusted:
