Hardware Specification

Dimensions [mm]

01 ZAC front dim.png

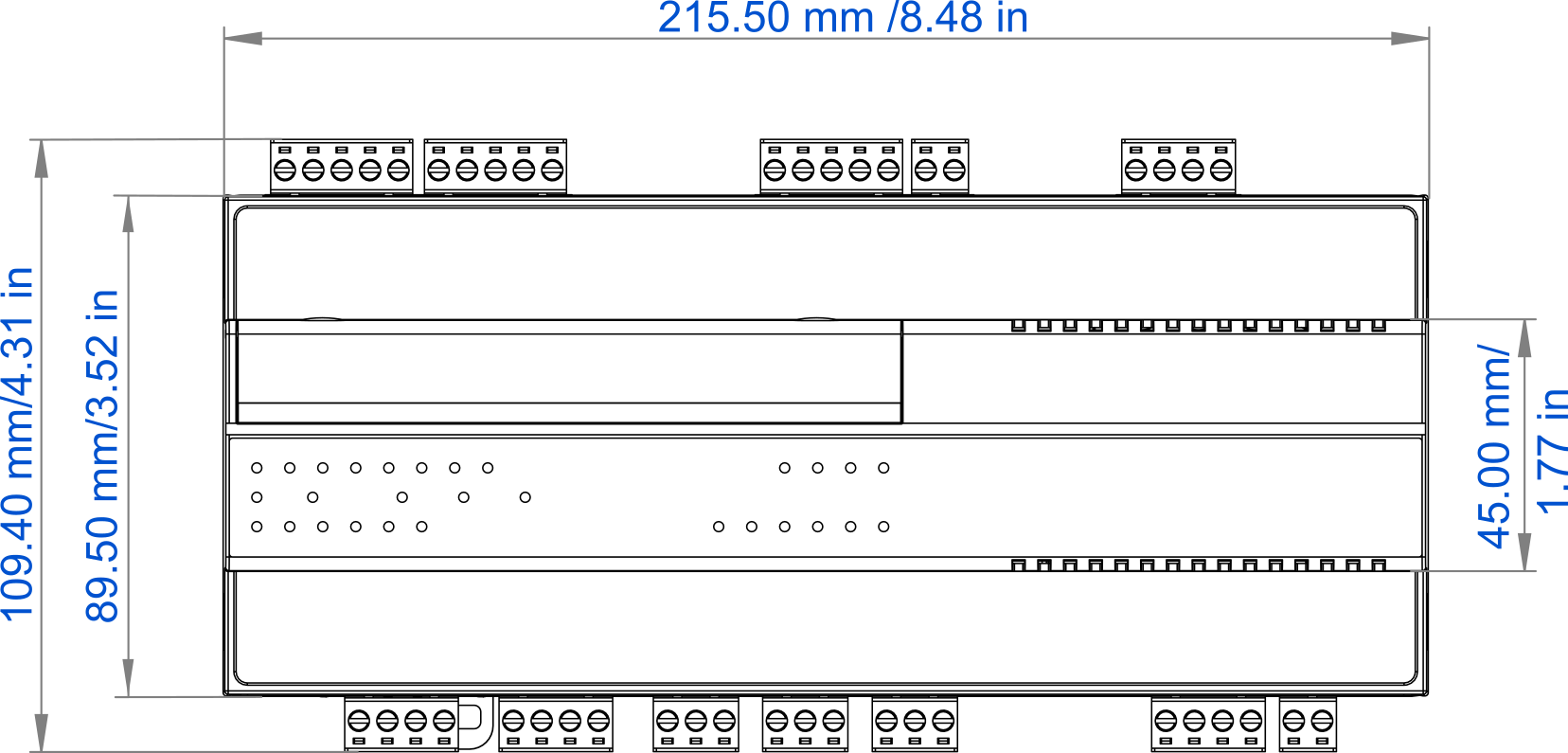

Front dimensions
02 ZAC side dim.png

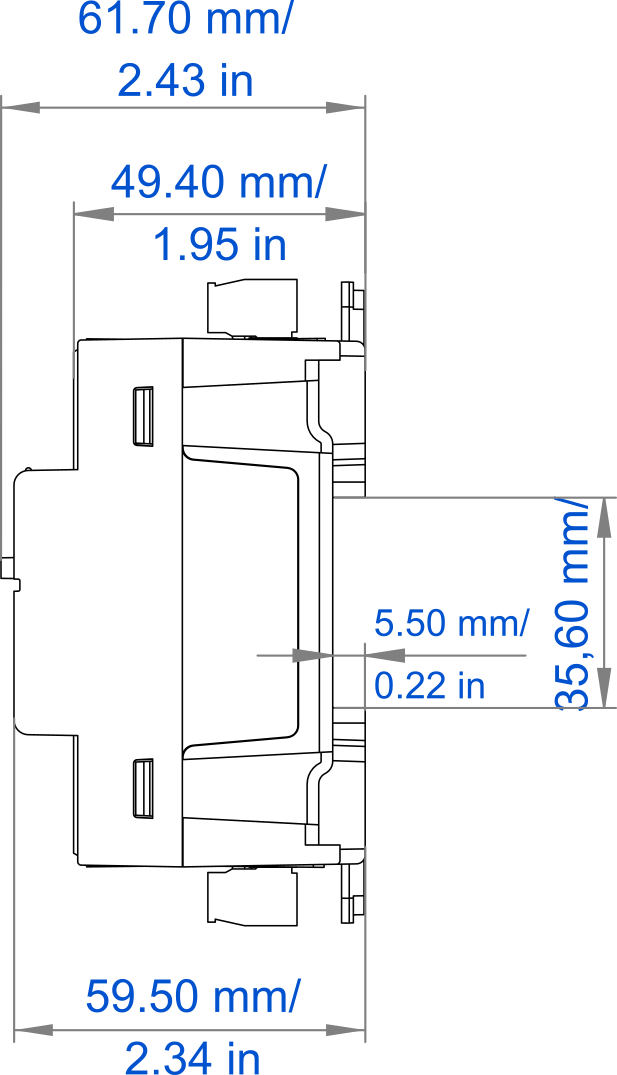

Side dimensions

Power Supply

The UAC28-IP controller requires 24 V AC/DC power supply.

Power supply.png

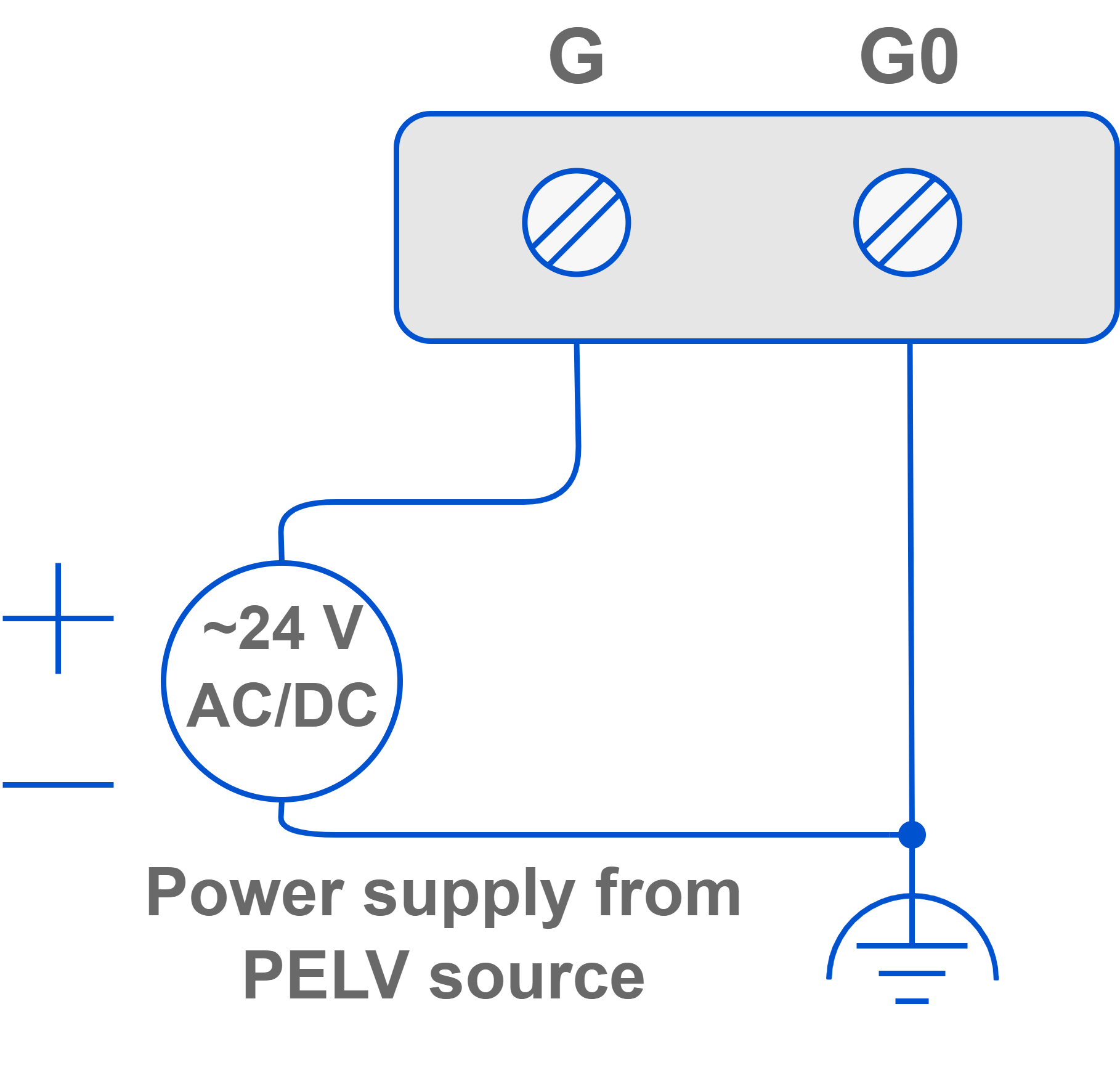

Power supply connection

It is also possible to power the controller using a USB cable (5 V power supply).

Warning!

5 V USB power supply does not support AO/DO/Vout/Voltage outputs in the controller.

Voltage Output

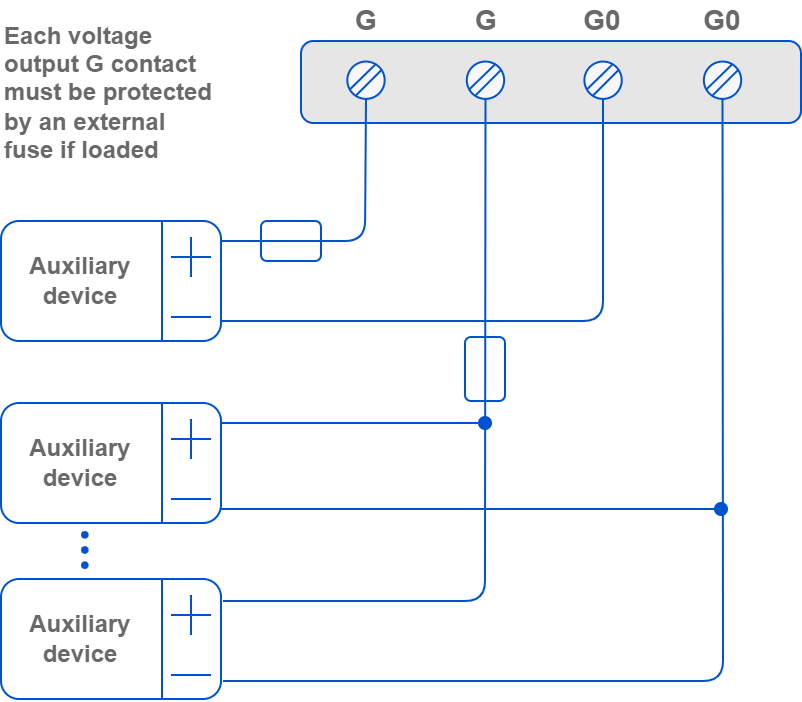

Voltage output connection

Front View


01 UAC top panel.png

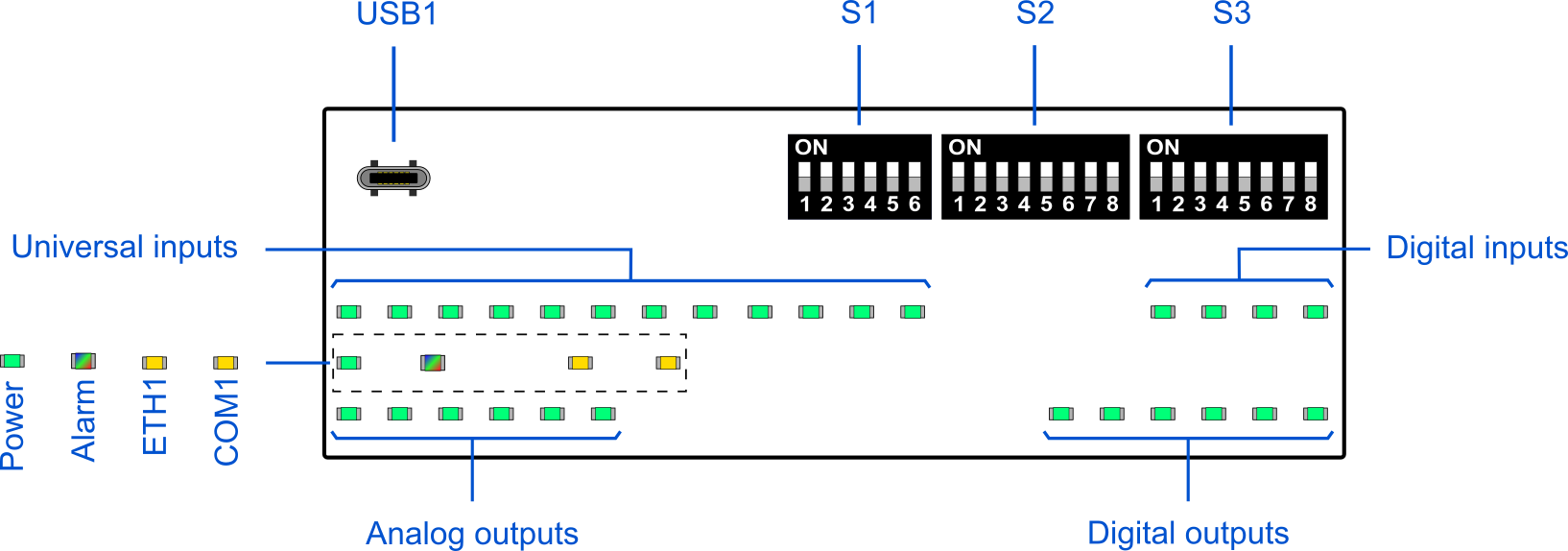

UAC28-IP top panel


Opening Top Panel


  1. Lift the blue cover up.

04 ZAC open panel.png


  1. After a click, the cover is semi-opened and upheld in this position.


04a ZAC open panel.png


  1. It is possible to lift the cover to a fully open position.


04b ZAC open panel.png


  1. To close the cover, pull it down.
