Indicators

Indicator

Description

Power Supply

The LED indicates that the module is correctly powered

Communication

The LED lights up when the unit received the correct packet and sends the answer

Inputs State

The LED indicates that the sensor is connected

Outputs State

The LED indicates that the output is on

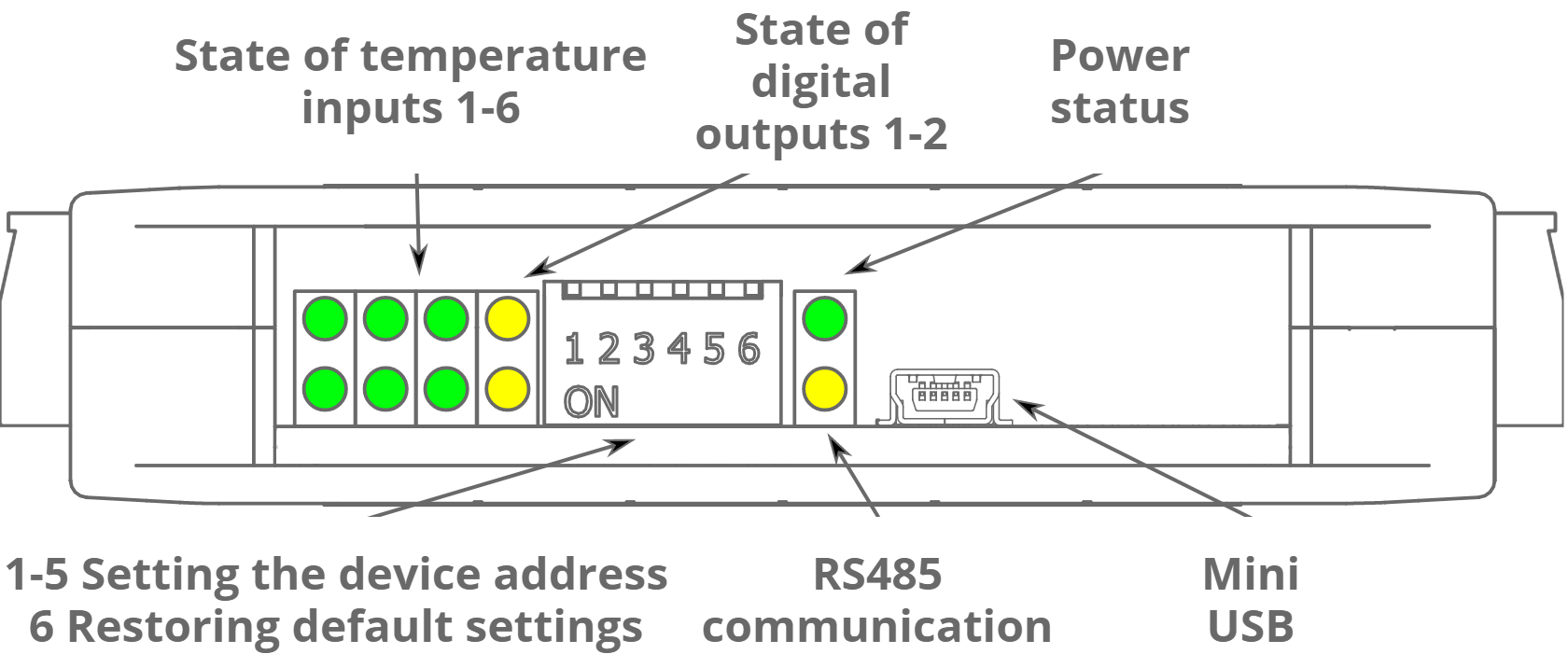

Description of indicators
