Connections

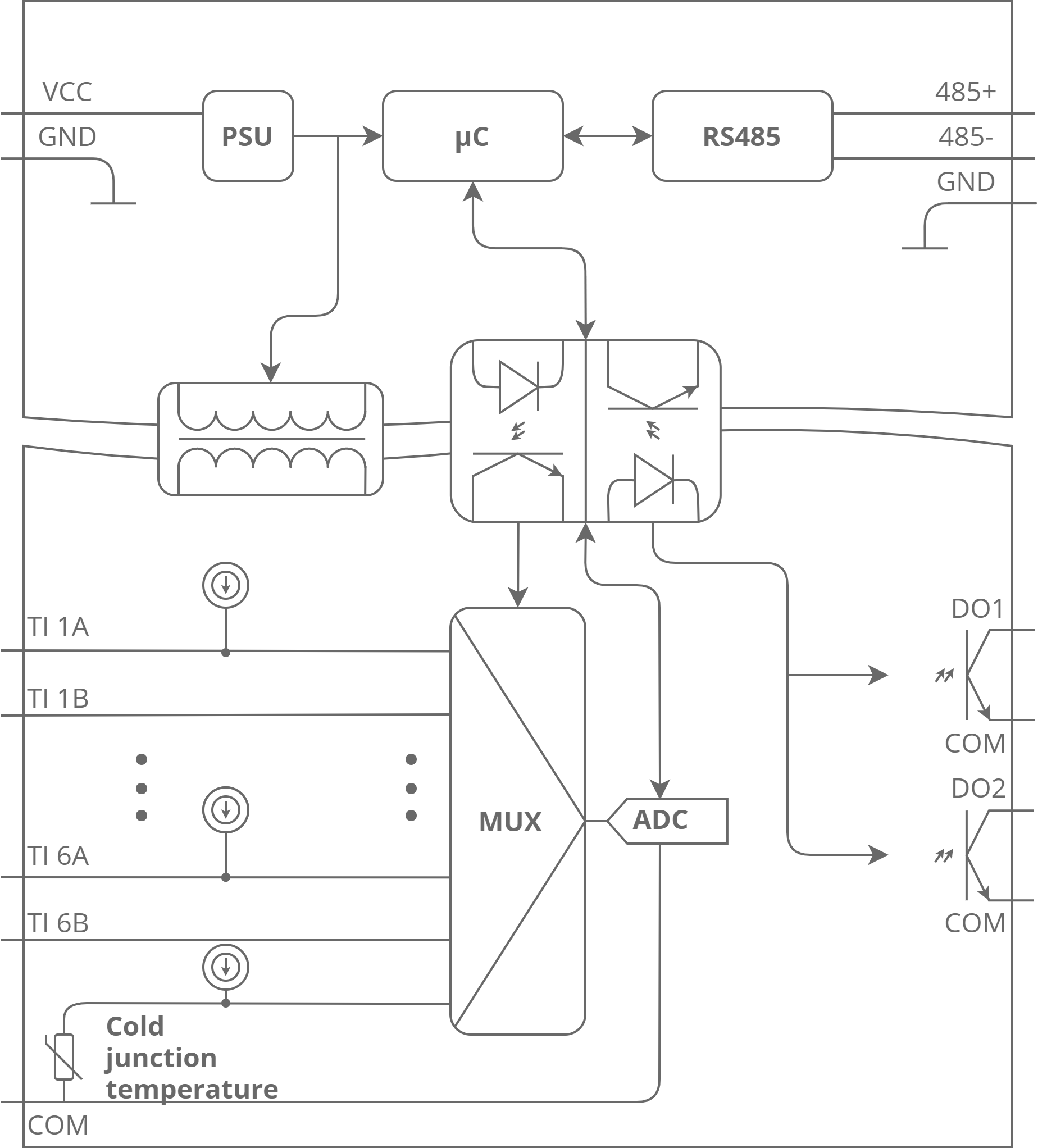

Block Diagram

Block diagram


Power Supply Connection

DC Power Connection

DC power connection


AC Power Connection

AC power connection


Communication Bus Connection

Communication bus connection


Connection of Temperature Inputs

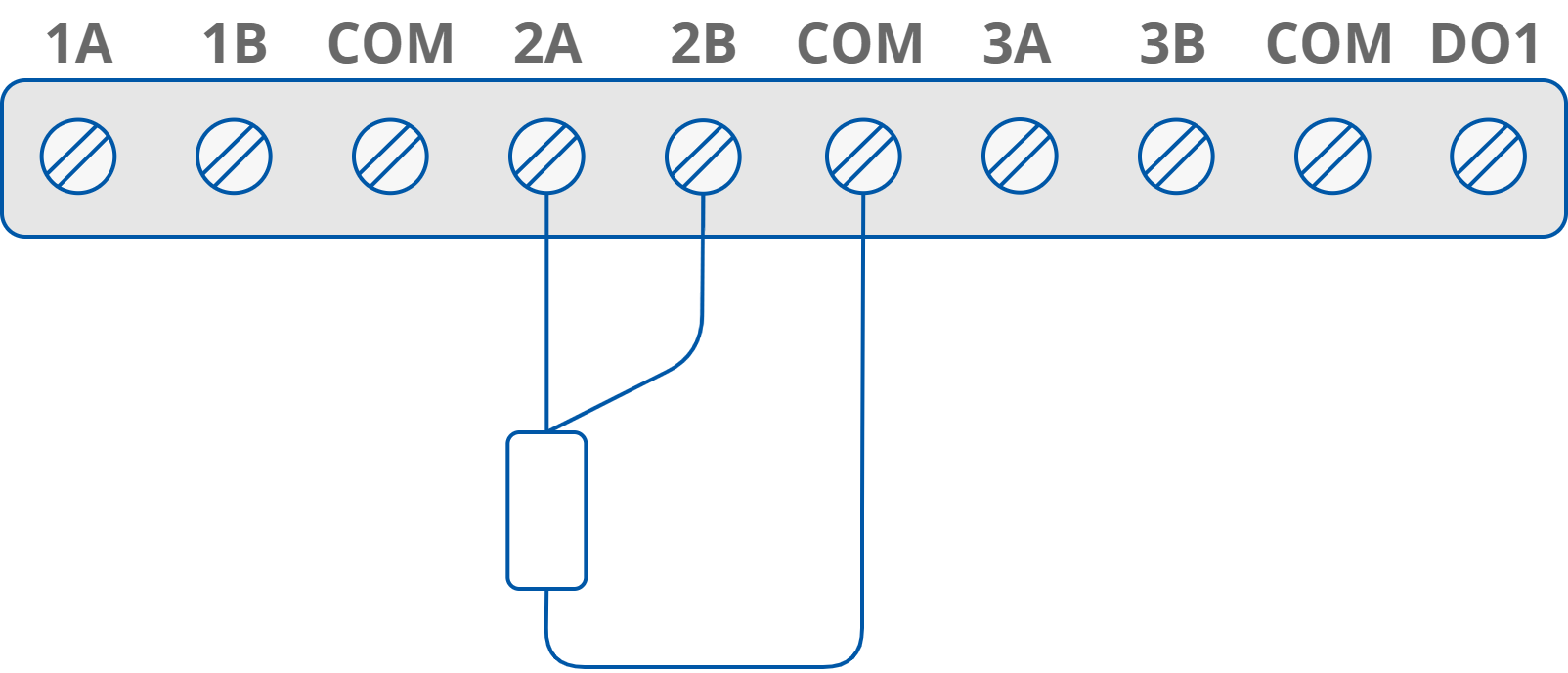

Connection of 2-wire Sensor (PT100) and Resistance Input

2-wire connection of PT100


Connection of 3-wire Sensor (PT100)

3-wire connection of PT100

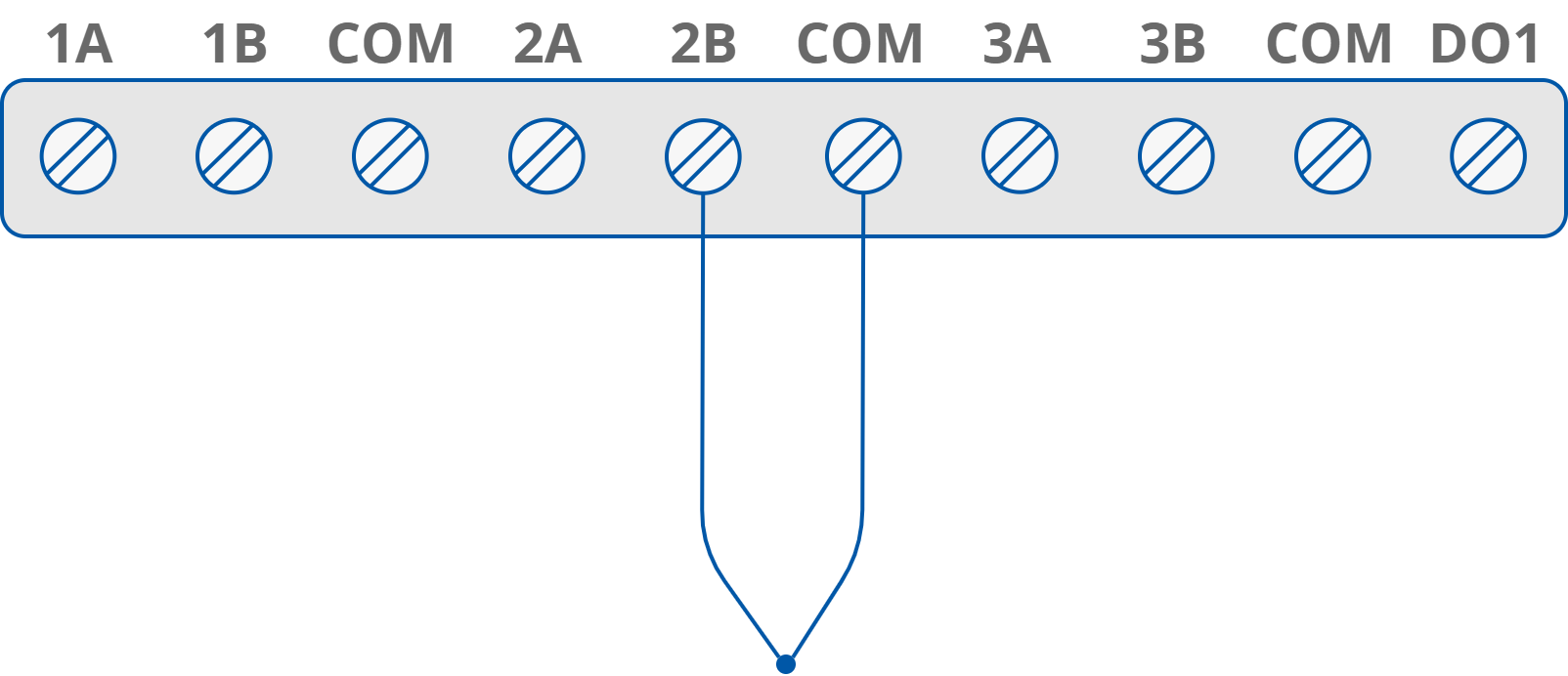

Connection of Thermocouple or Voltage Input

Connection of thermocouple

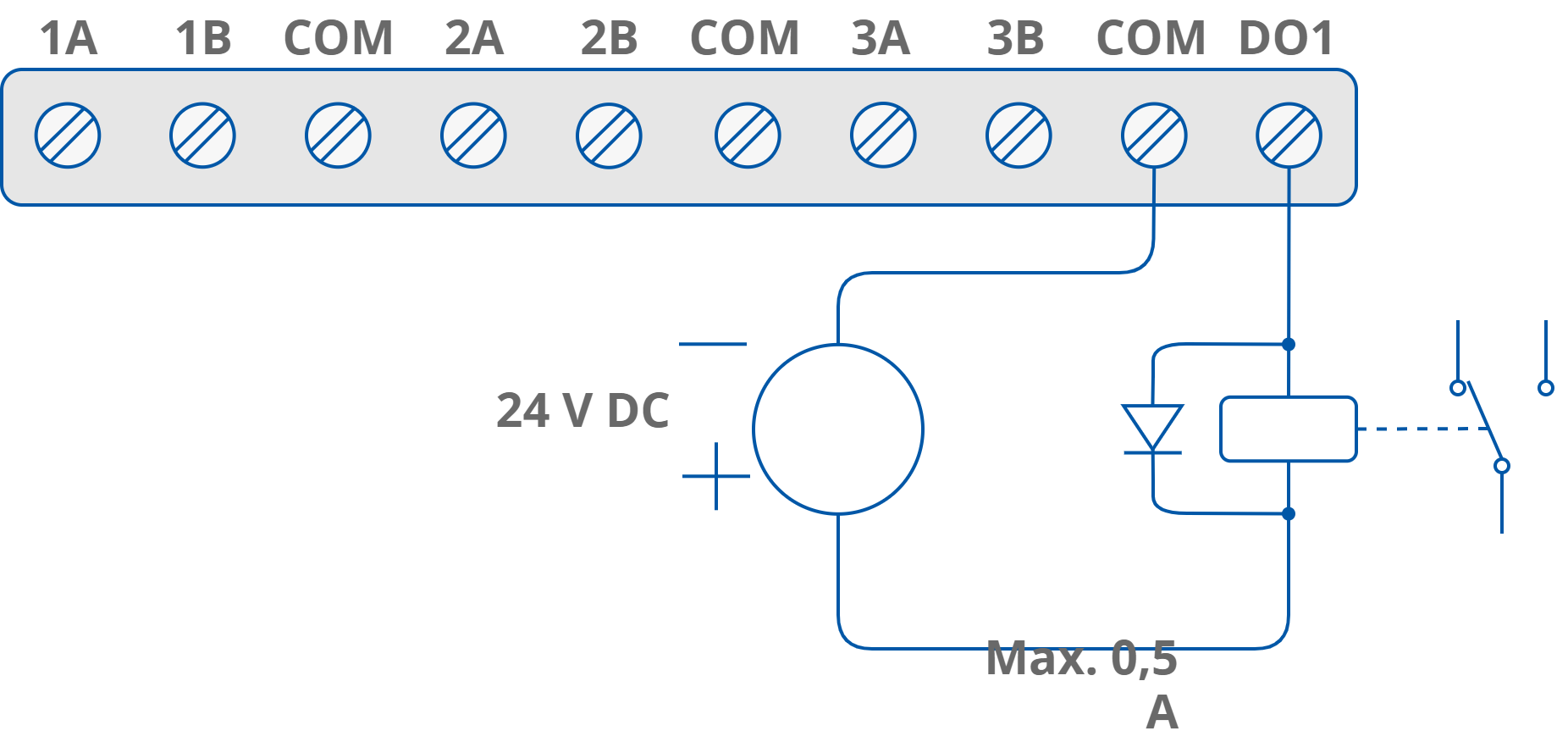

Connection of Digital Outputs

Connection of digital outputs

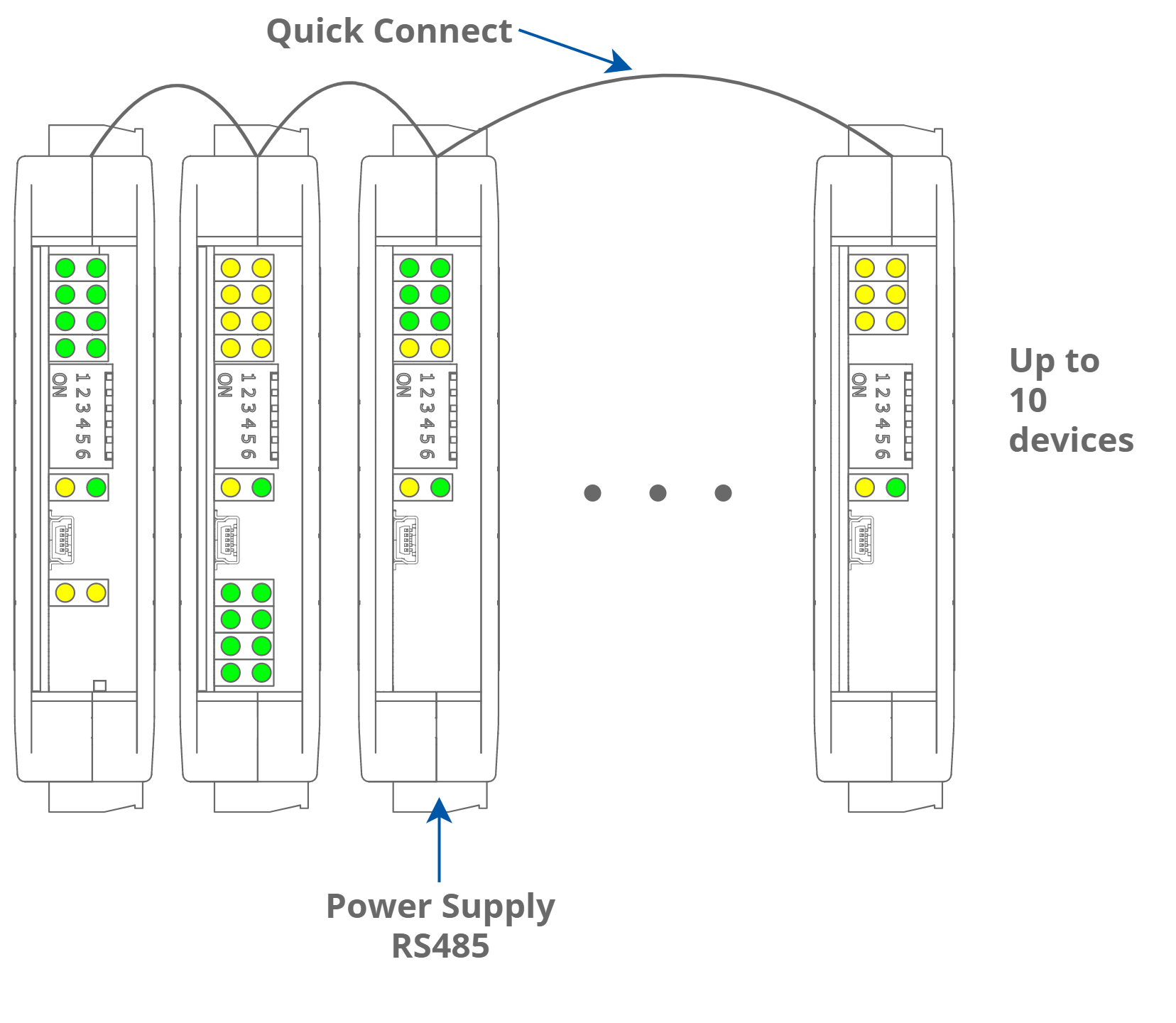

Quick Connector

The Quick Connector is a unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable. Thanks to this solution, it is enough to connect power and RS485 communication to one of the devices in the group, and the others will be powered and communicated with ribbon cable. The Quick Connector is sufficient to connect up to 10 devices next to each other. It is important that the various types of modules in the SfAR-S family can be connected with the ribbon cable.

Quick Connector
