Purpose and Description of the Module

The SFAR-S-6TI module allows measuring temperature with popular sensors (PT100, PT500, PT1000, NI100, KTY81-110) and thermocouples (type J, K, T, N, S, R, B). In addition, it is possible to measure voltages in the range from 256 mV (10 μV resolution) to 2048 mV (100 μV resolution) as well as to measure resistance to 8 kΩ.

The device has a set of six inputs for the temperature measurement. 2- or 3-wire measurement of temperature is feasible with PT100, NI100, PT500, and PT1000 sensors , and 2-wire measurement is feasible with thermocouples and other sensors. In addition, the module is equipped with 2 configurable digital outputs.

Values are read via RS485 (Modbus), so the module can be easily integrated with popular PLCs, HMI, or PC equipped with the appropriate adapter.

The module is connected to the RS485 bus with a twisted-pair wire. Communication is via Modbus RTU or Modbus ASCII. The use of 32-bit ARM core processor provides fast processing and quick communication. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002.

The module is equipped with a set of LEDs to indicate the status of inputs and outputs, which is useful for diagnostic purposes and helping to find errors. Module configuration is done via USB by using a dedicated computer program.It also allows for changing the parameters using the Modbus protocol or set the Modbus address using the DIP switches under the front panel.

Technical Specification

Power Supply



Voltage

10-38 V DC; 10-28 V AC

Power consumption (with active Modbus transmission high state on all inputs)


2,4 W at 24 V DC

3 V.A at 24 V AC

Inputs

No. of inputs

6

PT100 operation range

-200°C to +850°C

PT500 operation range

-200°C to +850°C

PT1000 operation range

-200°C to +850°C

NI100 operation range

-60°C to +180°C

KTY81-110 operation range

-55°C to +150°C

J thermocouple operation range

-200°C to +1200°C

K thermocouple operation range

-200°C to +1300°C

T thermocouple operation range

-200°C to +400°C

N thermocouple operation range

-200°C to +1300°C

S thermocouple operation range

-0°C to +1700°C

R thermocouple operation range

-0°C to +1700°C

B thermocouple operation range

-0°C to +1800°C

Resistance

From 0 to 8000 Ω (1 Ω resolution)

Voltage

0 to 2048 mV (0.1 mV resolution)
0 to 256 mV (0.01 mV resolution)

Voltage measurement error

±0.05 % of the measurement range

Measuring current

~250 μA

Measurement resolution

0.1°C

Measurement error

±0.5°C

Cold junction temperature measurement

-55°C to +100°C

Measurement error of the cold junction temperature

±1°C

DAC processing time

150 ms/channel

Isolation

1000 V DC

Digital Outputs


Maximum current and voltage

500 mA/55 V

Isolation

1000 V DC

Temperature


Work

-10°C to +50°C (14°F to 122°F)

Storage

-40°C to +85°C (-40°F to 185°F)

Connectors





Power supply

2 pin

Communication

3 pin

Inputs and outputs

2 x 10 pin

Quick connector

IDC10

Configuration

mini USB

Size



Height

119.1 mm (4.689 in)

Length

110.9 mm (4.366 in)

Width

22.7 mm (0.894 in)

Interface

RS485

Up to 128 devices

Technical specification

Dimensions

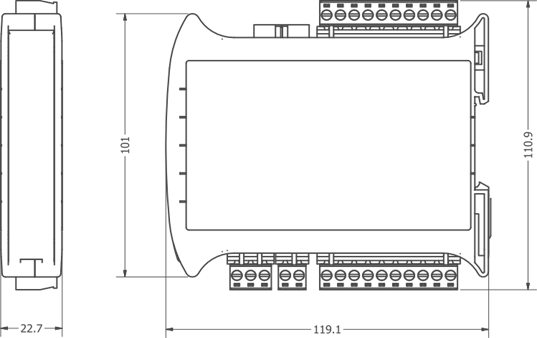

The appearance and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication, and I/Os are at the bottom and top of the module. USB connector configuration and indicators located on the front of the module.

Dimensions
