Basic Concept of the nano EDGE ENGINE

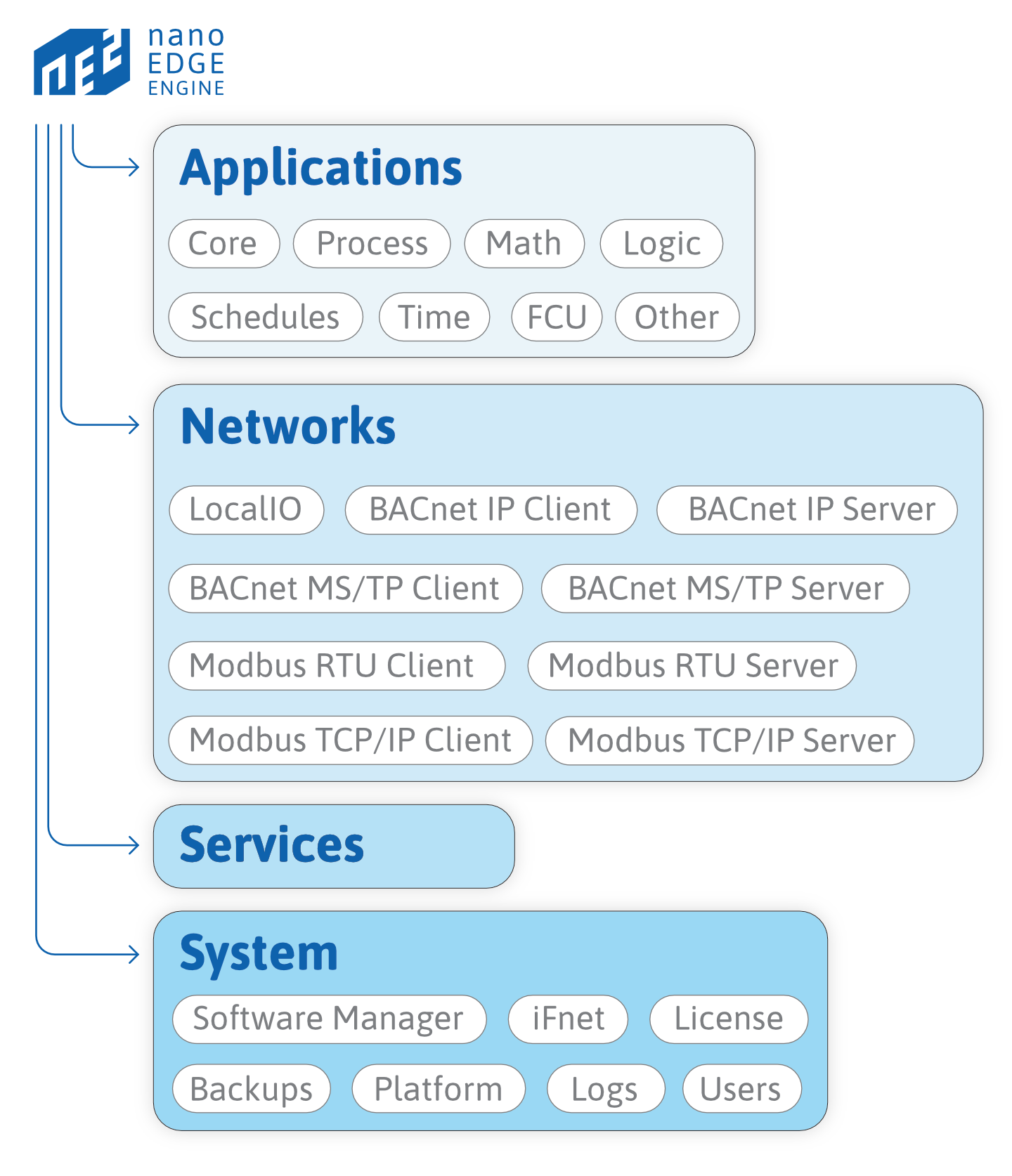

The first container is the Applications–a functional center of the device. Here are located Application components, which are designed to build user applications by adding components and linking them into a logical and mathematical sequences. Applications built with the nano EDGE ENGINE are cycle-driven, meaning the included components are executed in repeated periods of time lasting as long as a cycle time is set by the user—thanks to the efficiency of the nano EDGE ENGINE, the cycle may be as short as 15 ms (depending on the complexity of application), allowing effectively real-time calculations. The nano EDGE ENGINE allows constructing numerous independent, cycle-driven user applications that may work simultaneously. With the nano EDGE ENGINE the user may freely add as many Application components to the Applications container as needed. The only considerations here are the number of available licensed Data Points, available memory, or cycle time. Data Points are main application components, representing values in applications and allowing to connect services from the Networks container with the application—while connecting components from the Applications and Networks containers, it is recommended to use the Reference linking method. Data Points may be exposed to external networks, which means that external exposition of data from the Applications container or any other space may be carried out only via the Data Point.

The second container is the Networks—a peripheral communication center of the device. This container includes components that manage external communications of the device, for example, the LocalIO, which manages physical inputs and outputs of the device, the BACnet or Modbus, which manage the exchange of data with the BACnet or Modbus network. The Networks container includes components that allow the device to transfer the HVAC automation data needed for the device to communicate externally. These components cover the fundamental layer of HVAC data transmission and are crucial for the device to be able to properly exchange information. The network point class components are located in the Networks container; both data transmission from the network points and controlling them in the application is achieved by the Reference linking, which is a linking method recommended over linking input and output slots directly, as the standard linking method misses the advantage of transferring the status info.

The third container is the Services—a utility center of the device. This container incorporates all services that enhance the basic functionality of the device. As the crude automation data transmission in the nano EDGE ENGINE is covered by services in the Networks container, the Services container provides the value added: these services cover an exchange of information with systems or devices superior to the building automation level. They may feed the algorithms with data that are normally unavailable in the building automation system, for example, a Weather service, which delivers information (precipitation, humidity, cloudiness, etc.) to the algorithm in the application managing garden watering, or an Alarm service, which sends out alarm messages to external recipients, provided certain limit values are exceeded. These services provide the additional logical layer to algorithms working within applications. They introduce external factors to user applications, enhancing their functionalities outside the core building automation. They may also introduce limit values to evoke certain actions in applications.

The fourth container is the System–a configuration center of the device. The System container includes components that provide hardware characteristics of the device and allow to configure its settings. It is an area where the user may find information about the device model, version of the operating system, free memory, etc. Most importantly though, it is where the user may set a unique IP address for the device to enable connecting it to the network. The System container is also a place to refer to for troubleshooting; it includes the Logs, which records an adjustable register of events in the device. If needed, it may be shared with the Technical Support team for further diagnostics.
