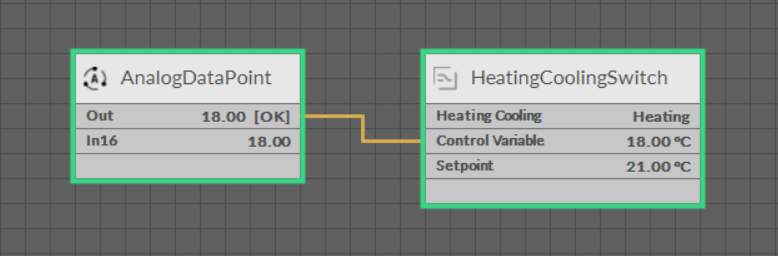

HeatingCoolingSwitch

The HeatingCoolingSwitch component allows for switching between heating and cooling temperature modes, depending on the current temperature, the given setpoint, and the occupancy status.

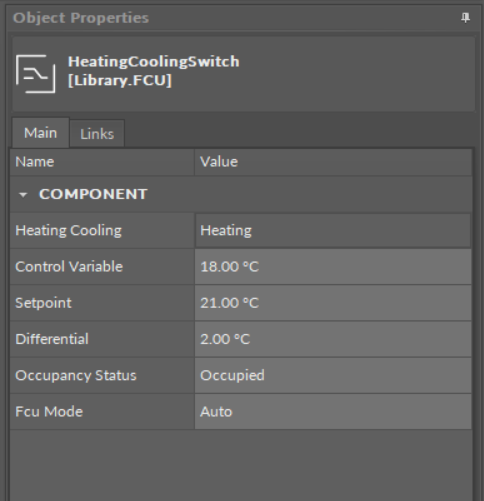

The HeatingCoolingSwitch component has the following slots:

• Heating Cooling: the main output of the component; shows the operating status of the component–whether it works in cooling mode (false) or heating mode (true);

• Control Variable: the current input value (measured temperature),

• Setpoint: the setpoint value (temperature setpoint);

• Differential: the deadband set for the current input value–if the Setpoint value is, for example, 25, the Differential value set to 2 means that for the Control Variable slot values from 23 to 27 no action is taken;

• Occupancy Status: sets the occupancy status;

  • Available information: Unoccupied, Occupied, Standby;

• Fcu Mode: indicating the FCU mode, for example, from the higher-level system.

  • Available values: Off, Auto, Heating Only, Cooling Only, Fan Only.

Predefined modes for different values of the Fcu Mode slot

• Off: the Heating Cooling slot is permanently set to the heating mode (true), regardless of the measured temperature and setpoint values.

• Heating Only: the Heating Cooling slot is permanently set to the heating mode (true), regardless of the measured temperature and setpoint values.

• Cooling Only: the Heating Cooling slot is permanently set to the cooling mode (false), regardless of the measured temperature and setpoint values.

• Fan Only: the Heating Cooling slot is permanently set to the cooling mode (false), regardless of the measured temperature and setpoint values.

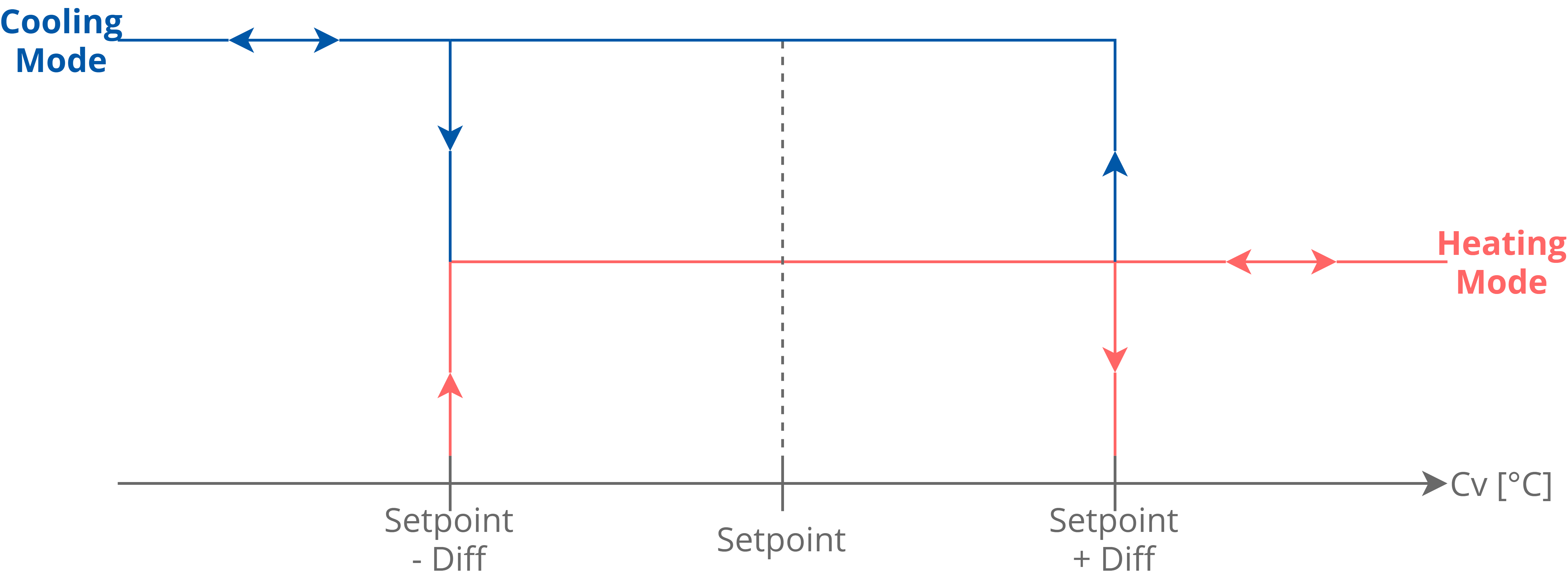

• Auto: the Heating Cooling slot switches between the heating and cooling modes, according to the figure below:

Note: The heating and cooling modes can only be switched, when the Occupancy Status slot is set to the Occupied mode. If the Occupancy Status slot is set to any other value, the Heating Cooling slot is set to the last mode, which has been calculated in the Occupied mode.
