BACnet Network Manager

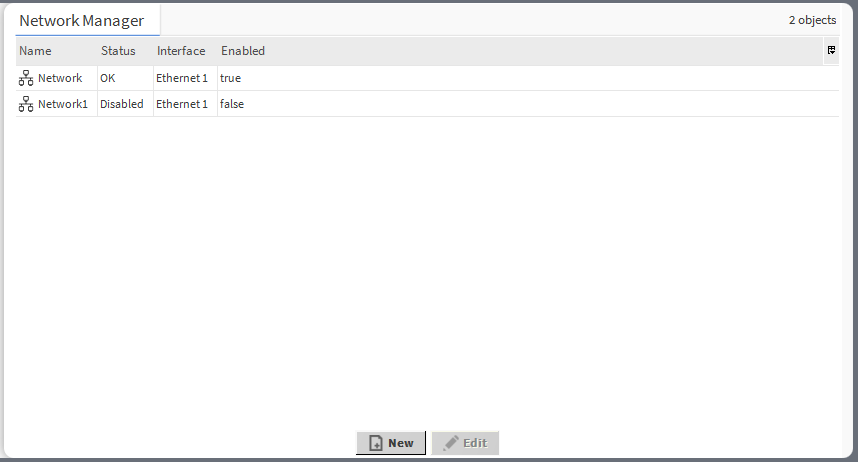

The Network Manager view is available for the BACnet component. It lists all BACnet networks configured on the device's ports. The Network Manager view shows the statuses, ports (which the network is configured on), and enabled or disabled states of the network.

In the BACnet Network Manager, it is possible to:

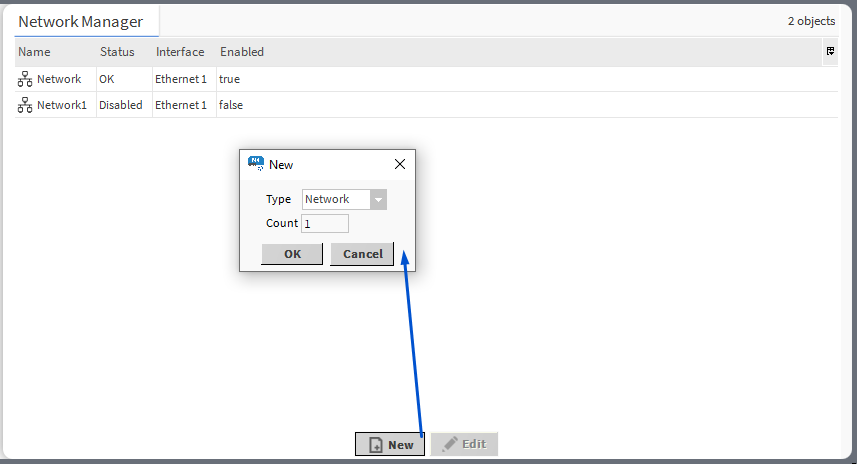

add BACnet network component:

56a BACnet network manager.png — Adding new BACnet network

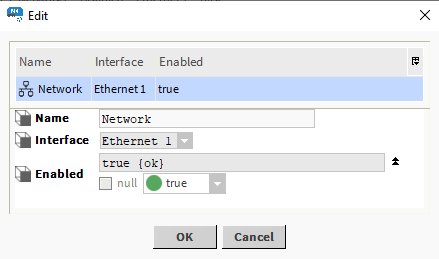

edit the BACnet network's name, interface and enable/disable the component:

56c BACnet network manager.png — Editing pop-up

Note

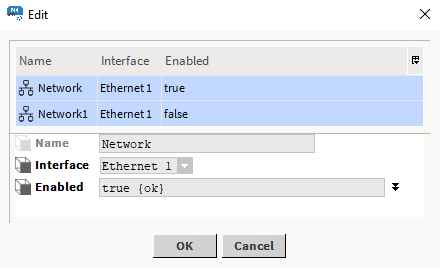

Editing is possible for more than one network at a time. If multiple networks are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.

56d BACnet network manager.png — Editing multiple BACnet networks

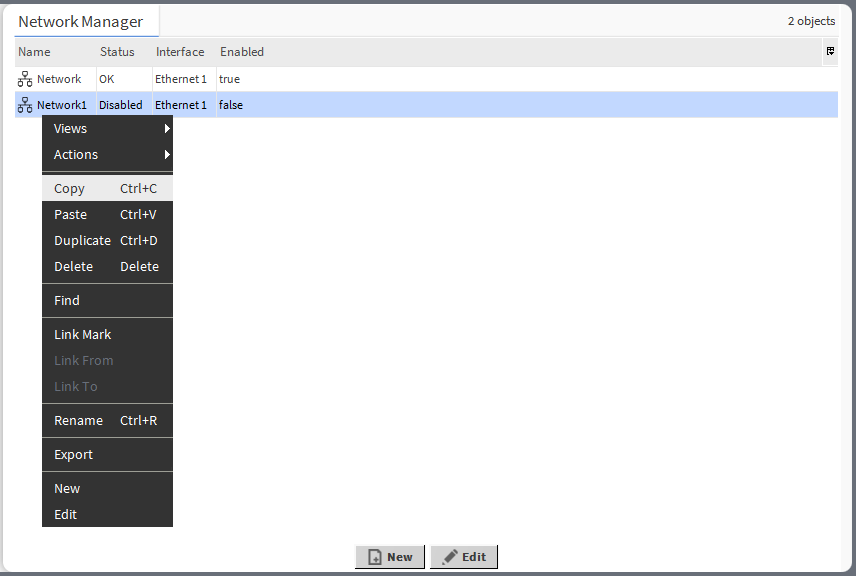

copy/duplicate/remove BACnet network components:

56b BACnet network manager.png — Context menu options for BACnet network

Opening BACnet Network Manager

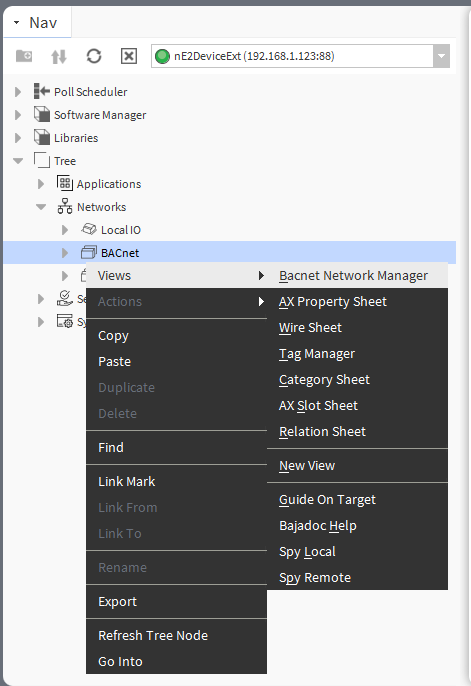

The BACnet Network Manager view is accessible from the context menu of the BACnet component. It is also automatically opened if the BACnet component is double-clicked in the nav tree window.

56e BACnet network manager.png — Accessing the BACnet Network Manager
