LocalIO Manager

The LocalIO Manager view is available for the LocalIO component. It lists all I/O points added to the LocalIO component, and shows their:

name;
Out slot value;
unit (for analog values);
status;
number;
enabled or disabled state.

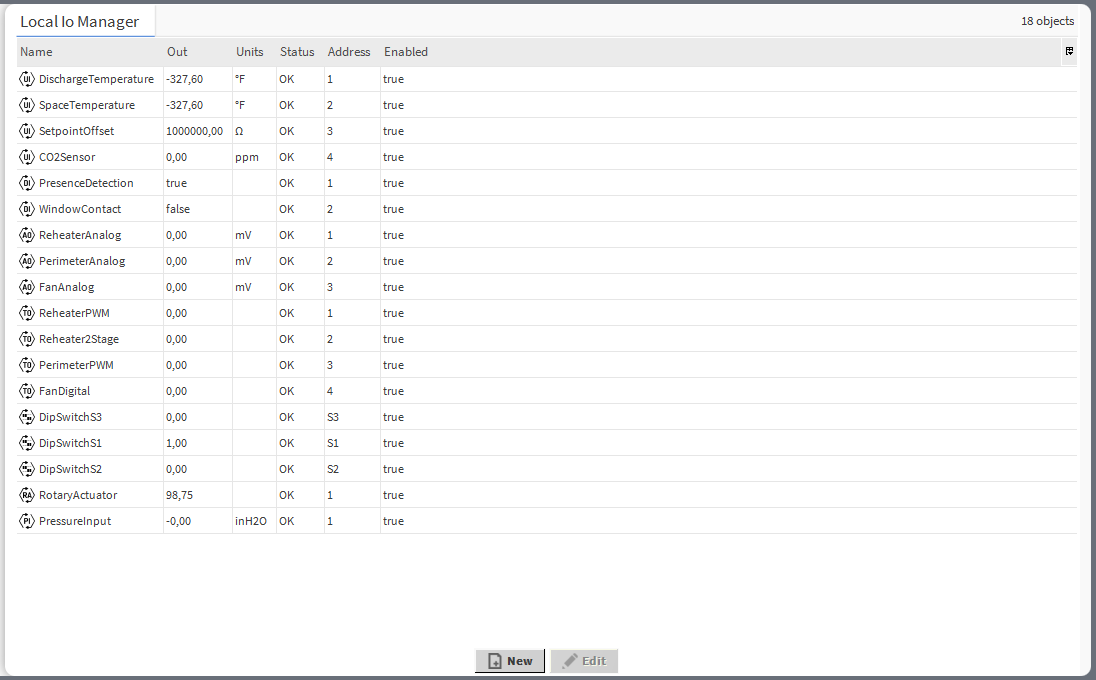

53 LocalIO Manager.png — LocalIO Manager

In the LocalIO Manager, it is possible to:

add local I/O components:

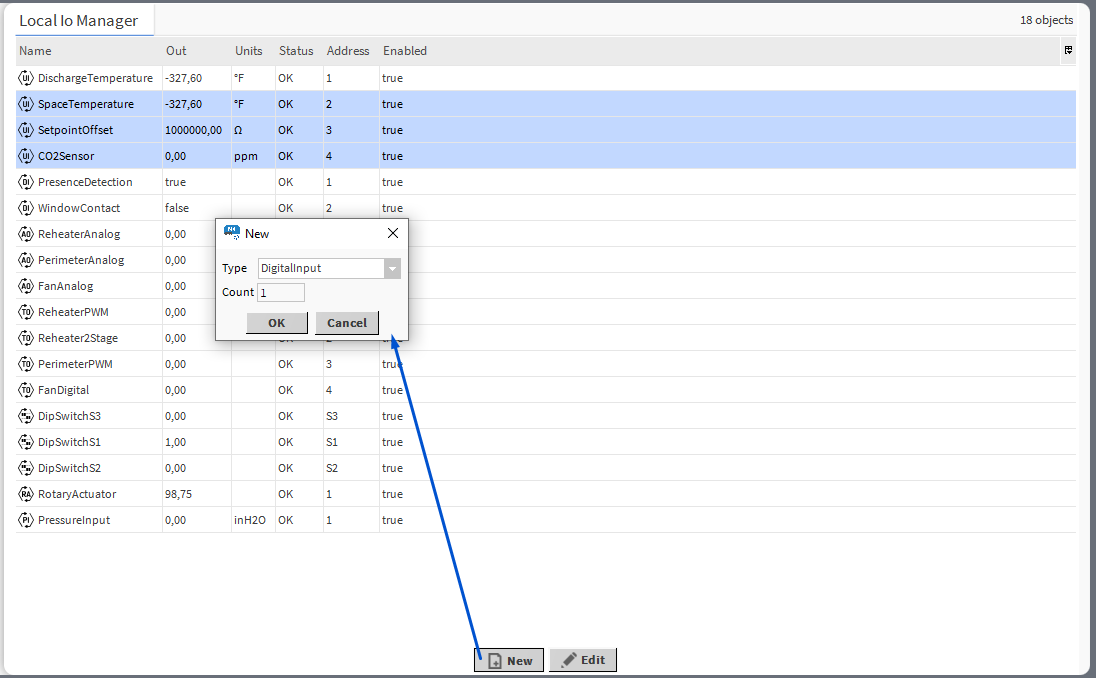

53d LocalIO Manager.png — Adding I/O points in the LocalIO Manager

edit the I/O’s name, units, address and enable/disable the component:

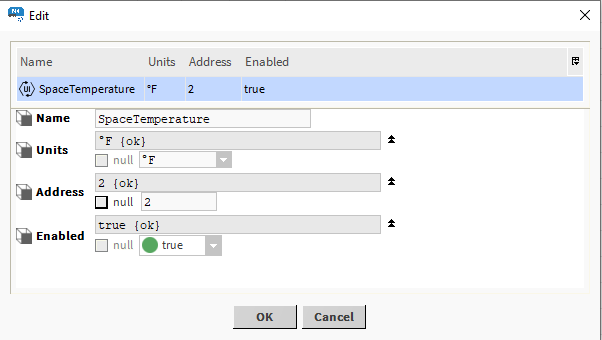

53b LocalIO Manager.png — Editing pop-up

Note

Editing is possible for more than one I/O point at a time. If multiple points are edited, the same new value is written to common slots, so individual slots, such as Name, cannot be edited in this manner.

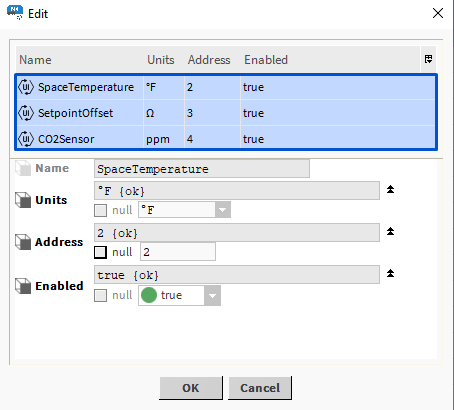

53c LocalIO Manager.png — Editing of multiple I/O points

copy/duplicate/remove I/O components:

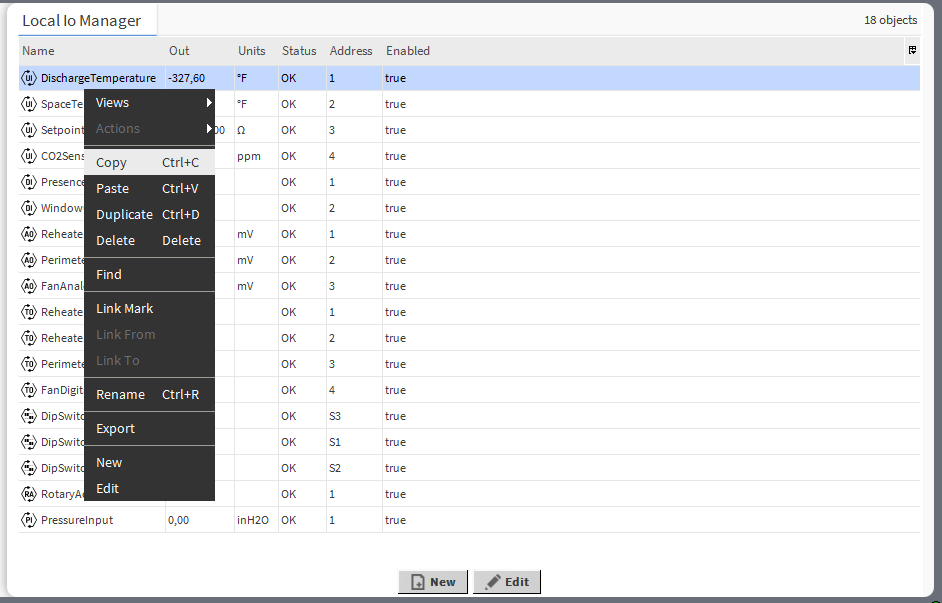

53e LocalIO Manager.png — Context menu options for local I/Os

Opening LocalIO Manager

The LocalIO Manager view is accessible from the context menu of the LocalIO component. It is also automatically opened if the LocalIO component is double-clicked in the nav tree window.

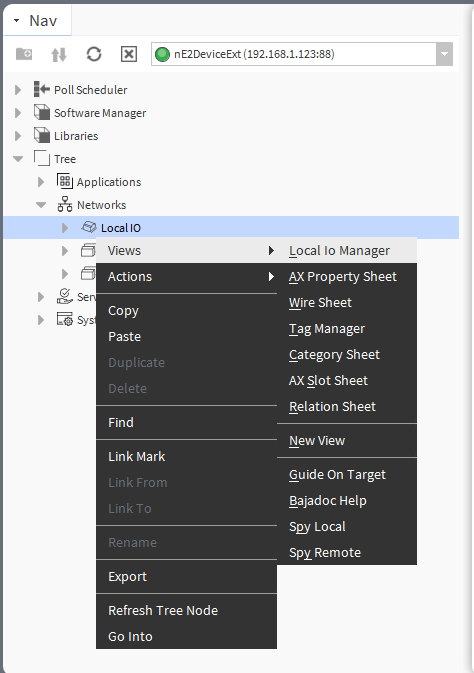

53a LocalIO Manager.png — Accessing the LocalIO Manager from the context menu
