LpTemperatureSensor

The LpTemperatureSensor component is responsible for reading values and configuration of the temperature sensor in the panel.

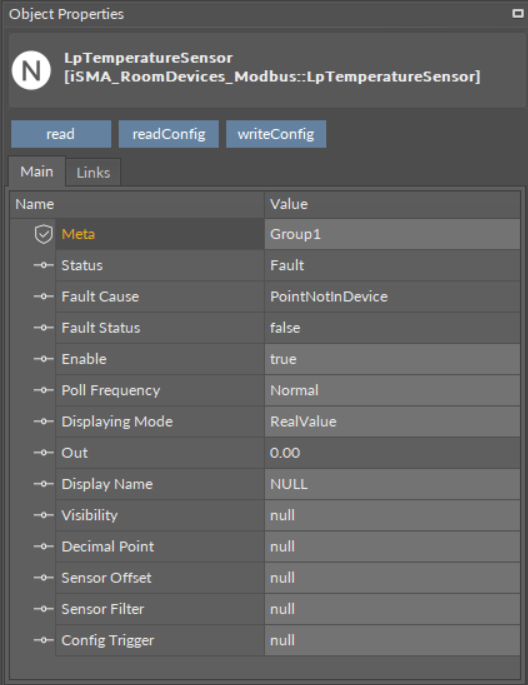

The LpTemperatureSensor component

The LpTemperatureSensor component has the following slots:

• Status: shows the component’s status;
• Fault Cause: shows the fault cause description;
• Fault Status: informs about the point error status (true: point read/write error);
• Enable: enables or disables the component (true: enabled, false: disabled);
• Poll Frequency: allows to set the reading poll frequency (fast, normal, slow);
• Displaying Mode: allows to set the displaying mode (RealValue: the output value is divided by 10; RegisterValue: the value is taken directly from the register);
• Out: the temperature sensor value output slot;

• Display Name: allows to set the temperature sensor display name on the LCD display (up to 4 characters, only ASCII characters, only for the LP panel);

• Visibility: activates or inactivates the sensor value on the display;

• Decimal Point: allows to set the display of the decimal point (inactive or displays decimal point on first, second, or third position; only for the LP panel);

• Sensor Offset: sets the temperature sensor offset value;
• Sensor Filter: sets the temperature sensor reading filter time in seconds;
• Config Trigger: on rising edge sends configuration parameters to the device components (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter).

The LpTemperatureSensor component has the following actions:

• Read: reads the panel’s temperature sensor value and updates the Out slot;
• Read Config: reads configuration parameters from the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter);
• Write Config: writes configuration parameters to the panel (Display Name, Visibility, Decimal Point, Sensor Offset, Sensor Filter).
