Gateway Mode

The iSMA-B-AAC20 controller can work as a Modbus TCP/RS485 gateway. By default,  this option is enabled until there is no ModbusAsyncNetwork component in the Sedona application or the component is disabled (ModbusAsyncNetwork -> Enable slot in the false state).

The RS485 communication parameters can be set up by:

• Controller configuration web page (RS485 Configuration tab);
• ModbusAsyncNetwork component (remember to set false in the Enable slot);
• Controller Modbus register table (see the iSMA-B-AAC20 Modbus table chapter).

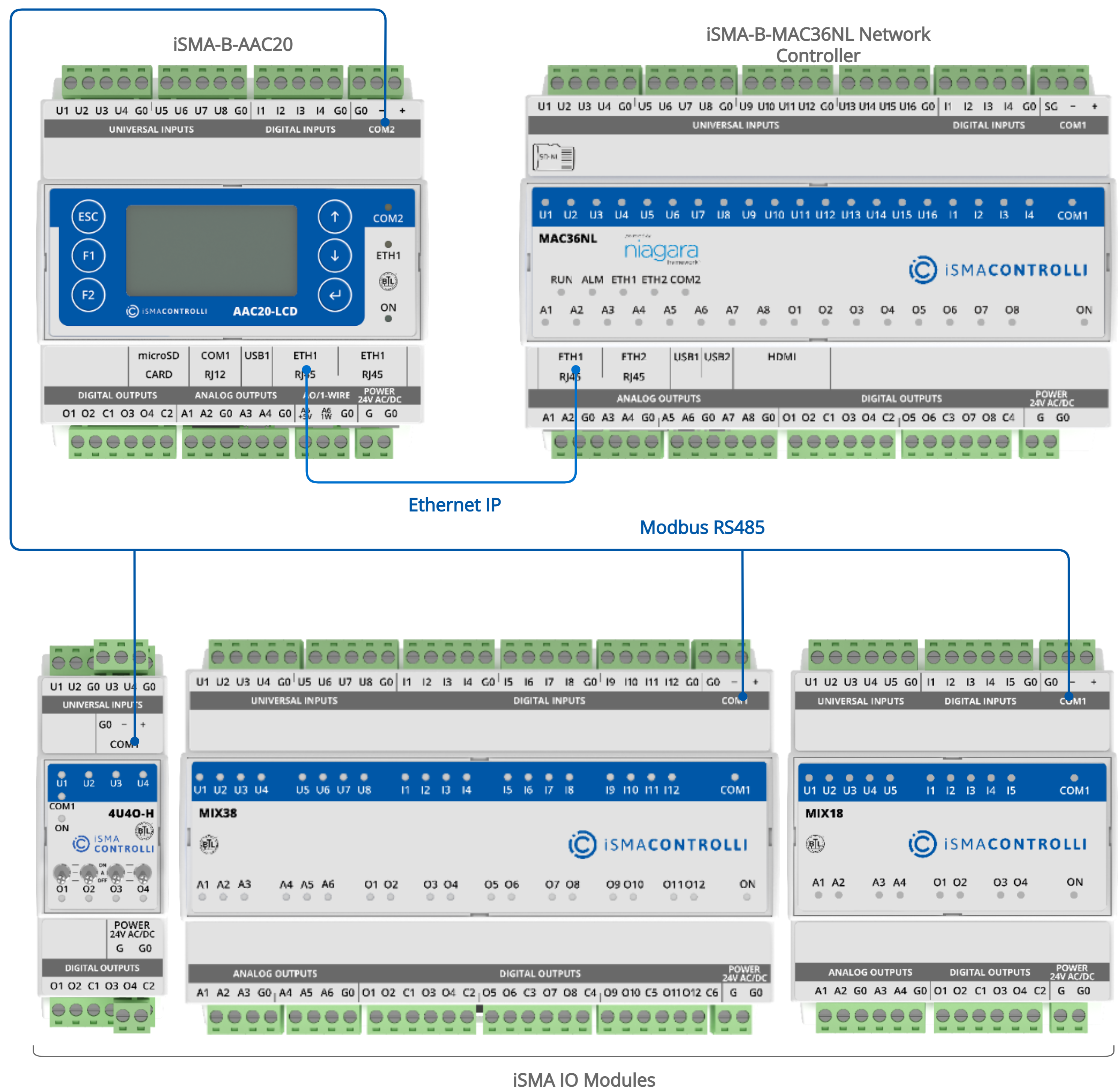

Modbus TCP gateway topology
