RegisterBitsPoint

The RegisterBitsPoint component is responsible for reading values from a bit in a specified register in the device. The component has to be placed in the ModbusTCPSlaveNetwork component.

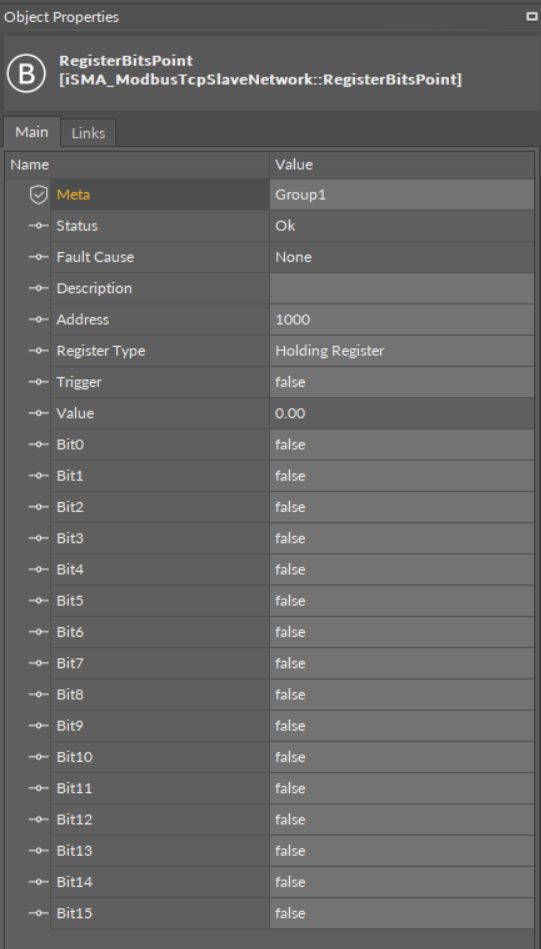

RegisterBitsPoint component

Slots

The RegisterBitsPoint component has the following slots:

  • Status: shows the point’s status;
  • Fault Cause: shows the fault cause description;
  • Description: point's description label;
  • Address: allows to set the register address, which the values will be read from;
  • Register Type: defines a type of the addressed register;
  • Trigger: invokes a reading action;
  • Value: shows a decimal representation of the Boolean bits values;
  • Bit0-Bit15: Boolean value of each of the register's bits.
