SequenceFailover

The SequenceFailover component is used to cascade and sequence/stage loads based on the Stage status, Cascade Msg In, and Fail status inputs.

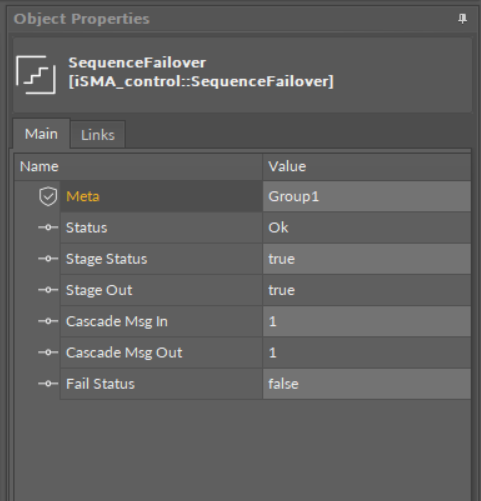

SequenceFailover component

Slots

The SequenceFailover component has the following slots:

• Stage Status: this configuration property defines where the cascade calculation would be performed;

Stage Status

If true Msg Out = Msg In.

If false Msg Out = Msg In – 1.

• Stage Out: read-only property that indicates Stage Out status;
• Cascade Msg In: cascade input value slot;
• Cascade Msg Out: out value slot which indicates cascade value after component calculations;
• Fail Status: this configuration corrects the Cascade output value.

Fail Status

If true Msg Out = Msg In + 1; Stage Out = false.

If false Msg Out = Msg In. Stage Out = Stage Status.
