Rotary Switch

Setting Device Address

08 Rotary switch.png

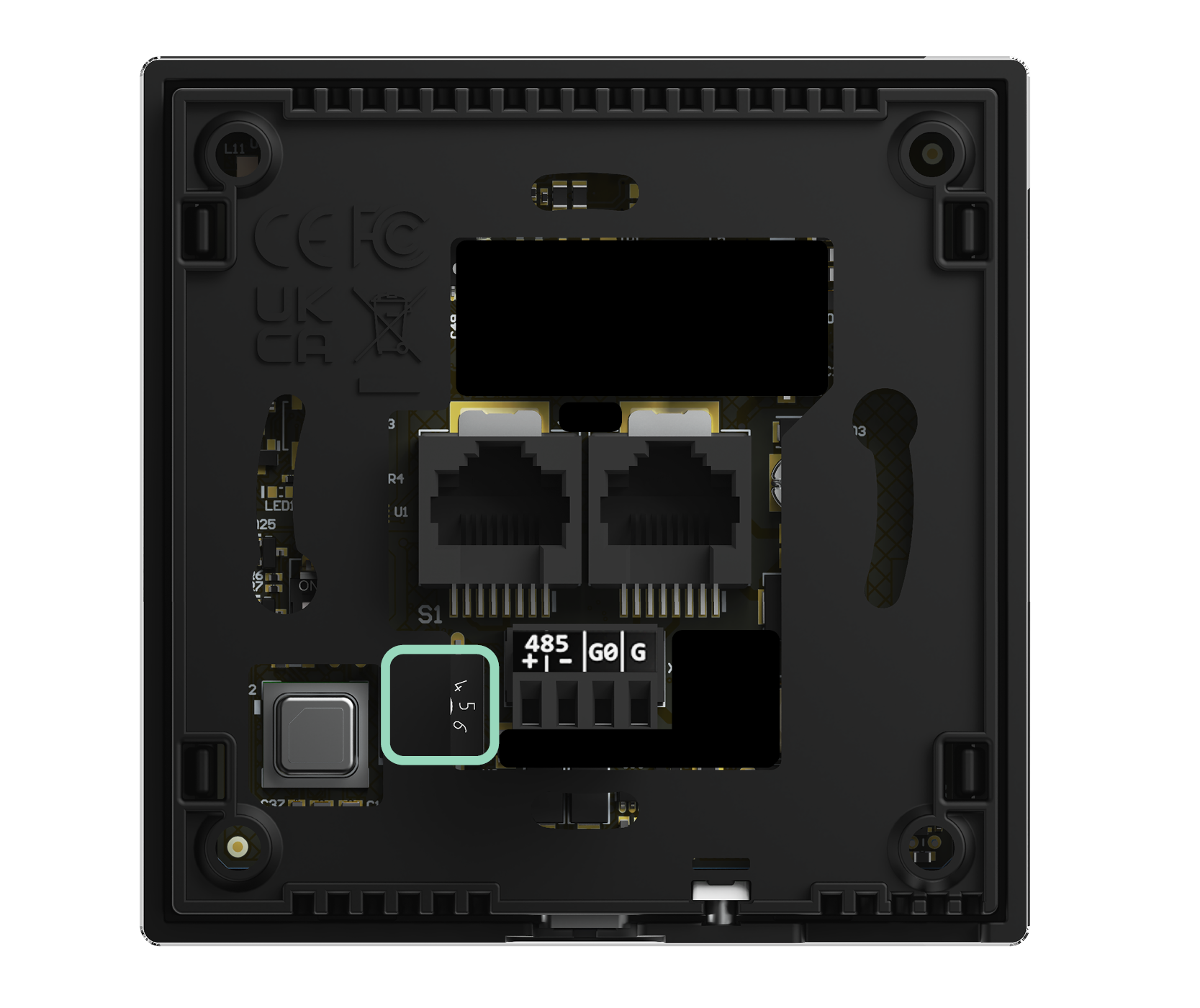

Rotary switch location under the back cover


The Touch Point 2.0 panel is equipped with a rotary switch, which allows for setting a Modbus address in a range from 0 to 9. If the switch is set to 0, the address is read from the ADDRESS register/object (decimal address: 22).
