MasterSlave


Applicable to OS V1.0-1.4

The MasterSlave component allows to automatically calculate the BACnet device ID of slave devices in the BACnet master-slave network, depending on the BACnet device ID of master devices. This function is called Auto Binding. The table below shows values of the master BACnet device ID and the corresponding BACnet device IDs of slave devices for the Auto Binding function:

Master Id

Slave 1 IDSlave 2 IDSlave 3 IDSlave 4 IDSlave 5 ID

826101

826001826002826003826004826005

826102

826006826007826008826009826010

826103

826011826012826013826014826015

826104

826016826017826018826019826020

826105

826021826022826023826024826025

826106

826026826027826028826029826030

826107

826031826032826033826034826035

826108

826036826037826038826039826040

826109

826041826042826043826044826045

826110

826046826047826048826049826050

826111

826051826052826053826054826055

826112

826056826057826058826059826060

826113

826061826062826063826064826065

826114

826066826067826068826069826070

826115

826071826072826073826074826075

826116

826076826077826078826079826080

826117

826081826082826083826084826085

826118

826086826087826088826089826090

826119

826091826092826093826094826095

826120

826096826097826098826099826100
Other00000
Master-slave IDs - Auto Binding

The Auto Binding function can be disabled (by setting the Local Remote Auto Binding slot to true). In this case, the IDs of slave devices have to be set by the user (in the Remote Slave 1 Device Id-Remote Slave 5 Device Id slots).

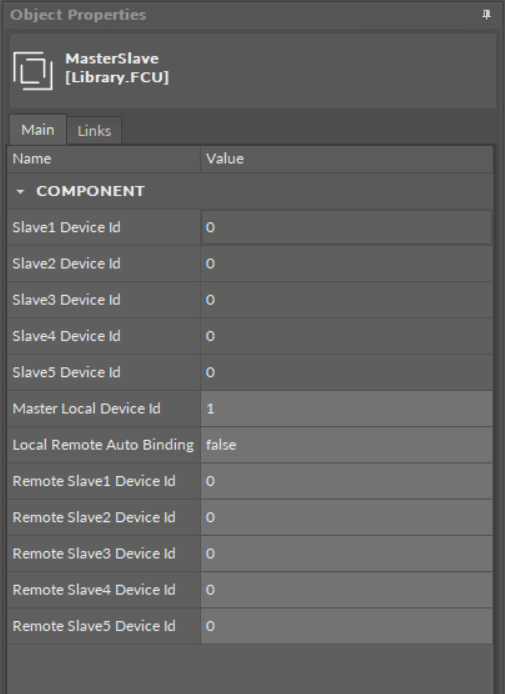

The MasterSlave slots

The MasterSlave component has the following slots:

  • Slave1 Device Id-Slave5 Device Id: display the IDs calculated or set for five slave devices;
  • Master Local Device Id: sets the ID of the master device.

Note:  If the component uses the Auto Binding function, the value of the Master Local Device Id slot has to be set to the value ranged from 826101 to 826120. For other values, all output slots (Slave1 Device Id-Slave5 Device Id) will be set to 0.

  •  Local Remote Auto Binding: allows to switch between Auto Binding and Remote Binding functions;
    • Available settings: true (Remote Binding–IDs of each slave device are set to the corresponding values of the Remote Slave1 Device Id-Remote Slave5 Device Id slots), false (Auto Binding–IDs of each slave device are calculated according to the table above);
  • Remote Slave1 Device Id-Remote Slave5 Device Id: allows to set remote IDs of slave devices.
